09-50-8033
| Manufacturer | |
| Description | 3.96mm,KK156,housing,f/ramp,nylon,3way Headers & Wire Housings HSG 3P W/RAMP/RIBS Conn Housing F 3 POS 3.96mm Crimp ST Cable Mount Bag CRIMP HOUSING, 3.96MM, 3WAY .156 KK Crimp Housing; 3 Circuit Molex KK 396 系列 3.96mm 节距 3 路 直 母 电缆安装 压接连接器外壳 |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | KK | Part # Aliases | 0009508033 41695-N-D3 9508033 |
| Product Category | Headers & Wire Housings | Factory Pack Quantity | 2500 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Range deg/s | :MOLEX - KK 41695 Series | Voltage Rating | :250V |
| Voltage - Breakdown | :1500V | ||
Mechanical
| Depth | 15.88mm | Pitch | 3.96mm |
| Width | 8.07mm | Length | 12.75mm |
| Weight | 0.001095 | Material | :Polyester |
| Termination | :Crimp | Mounting Type | Straight |
| Contact Finish | :- | Mounting Style | Wire |
| Number of Rows | 1 | Contact Material | :- |
| Housing Material | PET | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Color - Connectors | :Natural |
| Number of Contacts | 3 | Contact Termination | :Crimp |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Gender | Female | Series | 41695 |
| CAD Drawing | 3D CAD Model | Product Type | Receptacles / Sockets - Housings |
| For Use With/Related Products | KK Connector | ||
Environmental
| Mating Cycles | :25 | Operating Temperature | :75°C |
Documents & Media
PDF Document
Similar Parts

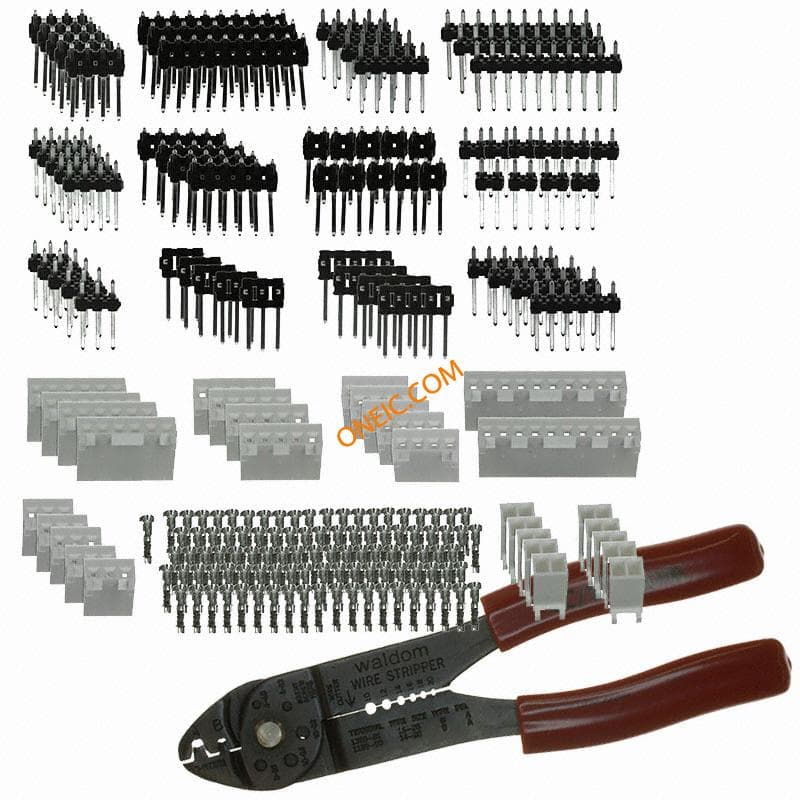

76650-0196
molex
COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 10,2,3,4,5,6POS 3-9A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 3.96MM PITCH 250V 18-20 WIRE SIZE KIT CONN MAR KK NEW KK COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 10,2,3,4,5,6POS 3-9A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL ... Kit Description:KK Breakway Vertical and Right Angle Header and Receptacle with Universal Crimp ToolKit Category:Wire to BoardSolution:PowerPackaging:Clamshell: 12.75" by 6"Num. Pieces:194
$212.6360
Details

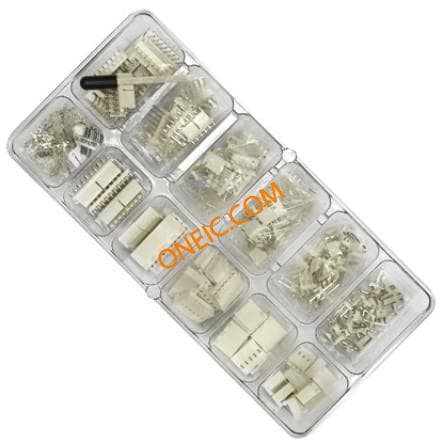

76650-3008
