09-50-3031
| Manufacturer | |
| Description | 3.96mm,KK,housing,w/ramp,nylon,3way Headers & Wire Housings HSG 3P W/LKG RAMP UL94V-2 Conn Housing F 3 POS 3.96mm Crimp ST Cable Mount Bag CRIMP HOUSING, 3.96MM, 3WAY Conn; Rect; InterConnSys; CableSCKT; 3Cont; Crimp; KKSeries; w/LCK Ramp; 0.156InPin-Spng Crimp housing 3P, 09-50-3031, Molex Molex KK 396 系列 3.96mm 节距 3 路 直 母 电缆安装 压接连接器外壳 |
| Category |
Business
| Tradename | KK | Part # Aliases | 0009503031 2139-3A 9503031 |
| Product Category | Headers & Wire Housings | Factory Pack Quantity | 2500 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
Electrical
| Range deg/s | :MOLEX - KK 2139 Series | ||
Mechanical
| Depth | 15.88mm | Pitch | 3.96mm |
| Width | 6.4mm | Length | 11.79mm |
| Weight | 0.005 | Lead Spacing | :3.96mm |
| Mounting Type | Straight | Contact Finish | :- |
| Mounting Style | Wire | Number of Rows | 1 |
| Contact Material | :- | Housing Material | Nylon |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 3 | Contact Termination | :Crimp |
Product Info
| Gender | Female | Series | 2139 |
| CAD Drawing | 3D CAD Model | Product Type | Receptacles / Sockets - Housings |
| For Use With/Related Products | KK Connector | ||
Documents & Media
Similar Parts
08-50-0106
molex
Contact SKT Crimp ST Cable Mount Bag KK crimp terminals,18-20awg Headers & Wire Housings TERMINAL 24-18 BULK CONTACT, CRIMP, PLUG, 24-18AWG, PK100 CRIMP PIN, 18-24AWG, PK100 CONTACT, CRIMP, PIN, 24-18AWG Contact; Socket; For0.156In.KKSeries; 24-18AWG; Crimp; TinPlat; BrassCnt; 2478Series Molex KK 396 系列 母 压接接线端子, 压接, 镀锡触点

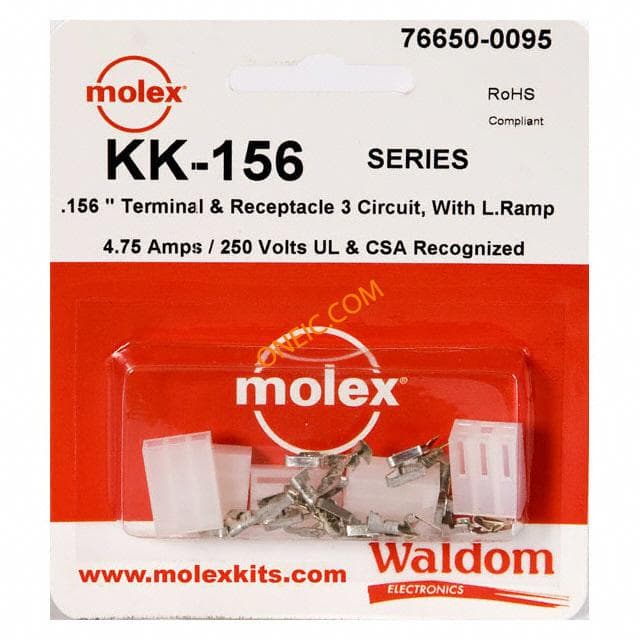

76650-0095
Molex Connector Corporation
KIT .156 KK SERIES 3 CIRC RAMP Headers & Wire Housings KK-156 Connector Kit Recep and term 3Ckt KK-156 Connector Kit Kit Description:.156 Pitch Receptacle and Terminals, 3 CircuitKit Category:Wire to BoardSolution:Off the BoardPackaging:Retail PackNum. Pieces:21 KK-156 CONNECTOR KIT .156 PITCH RECEPT & TERMINALS, 3 CKT

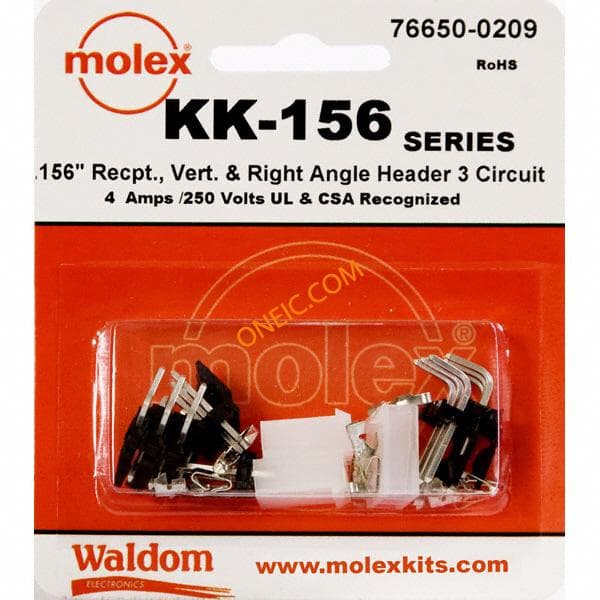

76650-0209
Molex Connector Corporation
KIT WMLX-262 Headers & Wire Housings KK-156 Connector Kit V & RA Hdr Rec 3Ckt KK-156 Connector Kit Kit Description:.156 Pitch Single Row Vertical and Right Angle Header and Receptacle, 3 CircuitKit Category:Wire to BoardSolution:Off the BoardPackaging:Retail PackNum. Pieces:19 KK-156 CONNECTOR KIT .156 PITCH, 3 CKT
08-52-0072
Molex Connector Corporation
CONN TERM FEMALE 18-24AWG TIN Crimp terminal,KK 156,2478,tin,18-24 awg Headers & Wire Housings TERMINAL 18-24 BULK Contact SKT Crimp ST Cable Mount Bag CONTACT, SOCKET, 24-18 AWG, CRIMP 3.96mm Pitch KK, Crimp Terminal; 18-20 AWG Molex KK 396 系列 母 压接接线端子, 压接, 镀锡触点

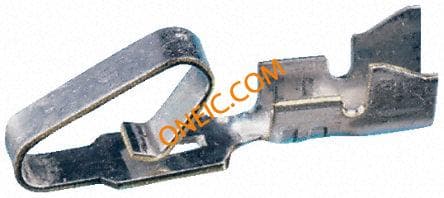

08-55-0106
