0877581416
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 14 POS 2mm Solder ST Thru-Hole Tray CONN HEADER 14POS 2MM VERT GOLD |
| Category |
Business
| Standard Package | Trays | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 2/Contact A | Voltage - Input (Min) | 125V |
| Voltage - Supply (Min) | 125V | ||
Mechanical
| Color | Black | Depth | 4 mm |
| Pitch | 2 mm | Height | 5.5 mm |
| Packaging | Tray | Row Spacing | 0.079" (2.00mm) |
| Termination | Solder | Contact Type | Male Pin |
| Housing Color | Black | Mounting Type | Through Hole |
| Connector Type | Header, Unshrouded | Contact Finish | Gold Over Nickel |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Contact Material | Phosphor Bronze | Housing Material | Nylon 46 |
| Length - Overall | 13.9 mm | Number of Contacts | 14 |
| Number of Positions | 14 | Contact Length - Mating | 0.157" (4.00mm) |
| Contact Finish Thickness | 15µin (0.38µm) | ||
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -55C to 105C | ||
Documents & Media
Similar Parts
0791091206
molex
Conn Socket Strip RCP 14 POS 2mm Solder ST SMD Tube CONN RCPT 2MM DL GOLD SMD 14CKT
0791081006
molex
Conn FFC/FPC Connector SKT 14 POS 2mm Solder RA Thru-Hole Tube CONN RCPT 2MM GOLD DL 14CKT
0791098456
molex
Conn Socket Strip RCP 14 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL SMD GOLD 14CKT
0791077006
molex
Conn Socket Strip RCP 14 POS 2mm Solder ST Thru-Hole Tube CONN RECEPT 2MM 14POS VERT
0875681493
molex
Conn IDC Connector RCP 14 POS 2mm IDT RA Cable Mount Tray CONN RECEPT 14POS 2MM IDT GOLD
0791077256
molex
Conn Socket Strip RCP 14 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL GOLD 14CKT
0791081056
molex
Conn FFC/FPC Connector RCP 14 POS 2mm Solder RA Thru-Hole Tube CONN RCPT 2MM GOLD DL 14CKT
0791077206
molex
Conn Socket Strip RCP 14 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL 14CKT
0791098406
molex
Conn Socket Strip RCP 14 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL SMD GOLD 14CKT

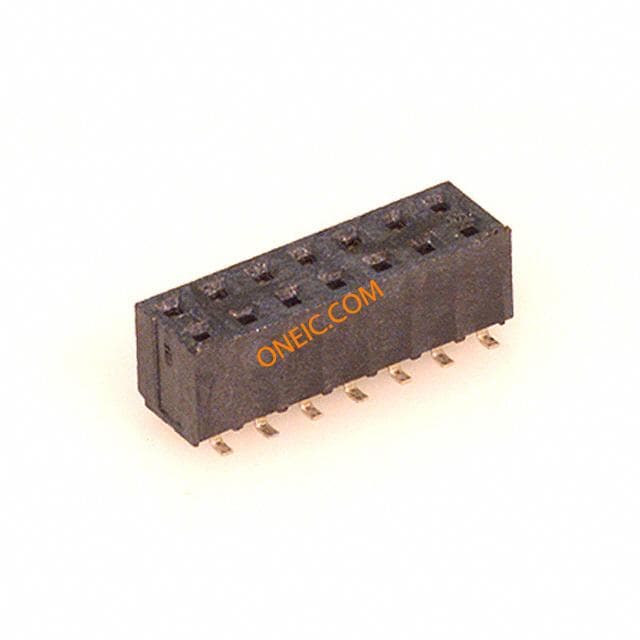

0791091006
molex
Conn Socket Strip RCP 14 POS 2mm Solder ST SMD Tube CONN RECEPT 14POS 2MM VERT SMD
0791091056
molex
Conn Socket Strip RCP 14 POS 2mm Solder ST SMD Tube CONN RCPT 2MM DL GOLD 14CKT SMD

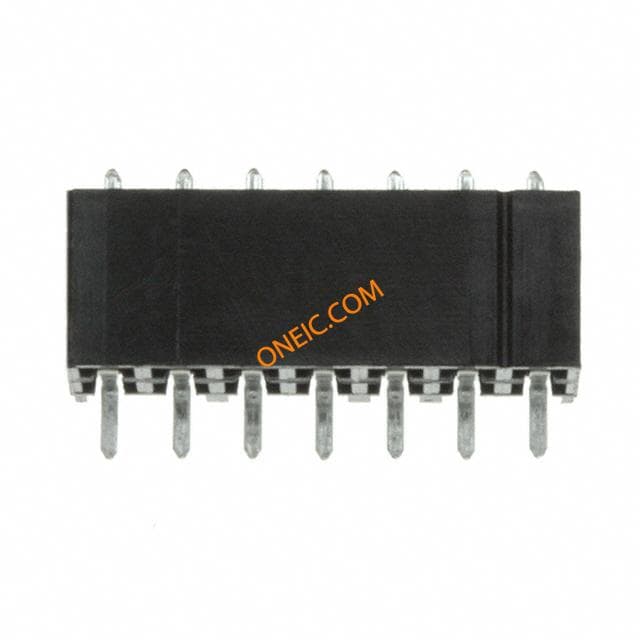

87368-1424
molex
Conn Socket Strip RCP 14 POS 2mm Solder RA SMD Tube CONN RECEPT 14POS 2MM SMD GOLD Headers & Wire Housings 2MM RECEPT. 14 CKT Side Entry

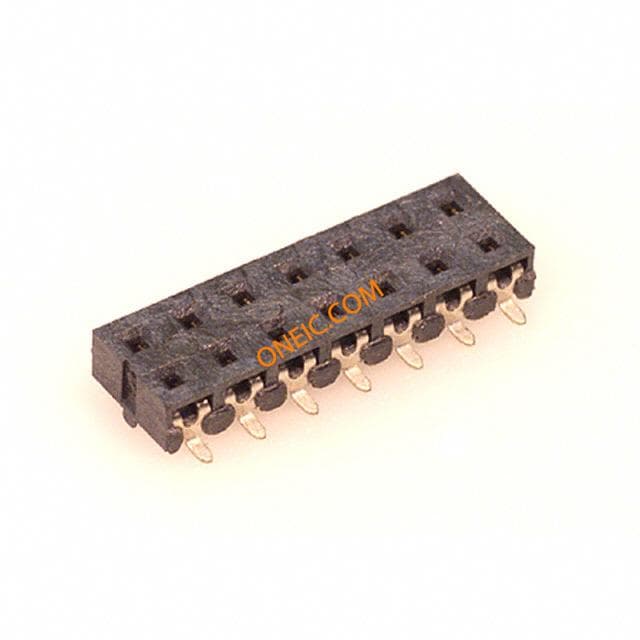

87340-1424
molex
Conn Socket Strip RCP 14 POS 2mm Solder ST SMD Tube CONN RECEPT 14POS 2MM LOPRO SMD Headers & Wire Housings 2MM RECEPT. 14 CKT Top Entry
0791091256
Molex
Conn Socket Strip RCP 14 POS 2mm Solder ST SMD Tube CONN RCPT 2MM DL GOLD SMD 14CKT

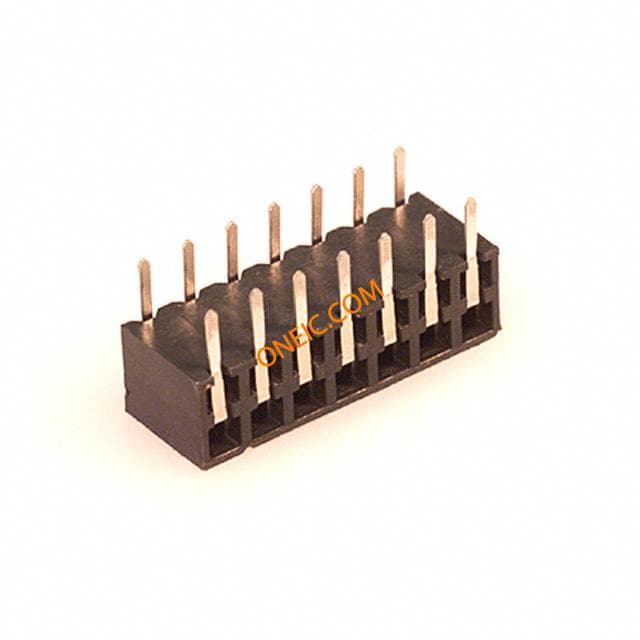

87264-1452
