0836149012
| Manufacturer | |
| Description | Conn Commercial Micro-D PIN 25 POS 1.27mm Solder RA Thru-Hole 25 Terminal 1 Port Tube CONN PLUG MICRO-D 25POS R/A PCB PLUG, MICRO D, PCB, R/A, 25WAY |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Rail / Tube | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | Approval Agency | :CSA, UL |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Range deg/s | :MOLEX - Commercial Micro-D Series | Voltage - Working | :350V |
| Contact Resistance | :8mohm | Voltage - Breakdown | :650V |
| Current Rating (Max) | 1A | Insulation Resistance | :5000Mohm |
| Voltage - Input (Min) | 350VAC | ||
Mechanical

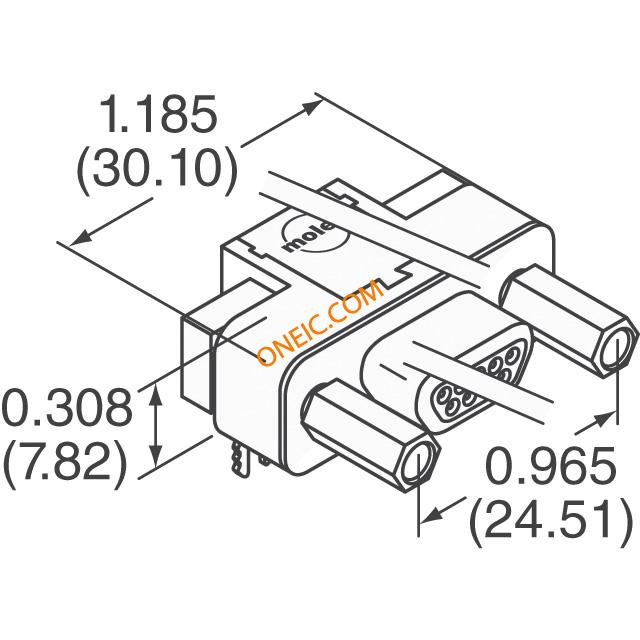

| Pitch | 1.27 mm | Height | 7.82 |
| Weight | 0.02 | Material | :Stainless Steel |
| Packaging | Tube | Shell Size | :DB |
| Termination | Solder | Contact Type | Signal |
| Mounting Type | Through Hole | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Mating Side; Female Screwlock (2-56) |
| Number of Rows | 2 | Package / Case | :Micro D plug R/A |
| Connector Style | D-Type, Micro-D | Material - Body | :- |
| Contact Material | Copper Alloy | Housing Material | Liquid Crystal Polymer (LCP) |
| Insulation Color | :Black | Length - Overall | 30.1 |
| 1st Contact Gender | PIN | Number of Contacts | 25 |
| Contact Termination | :Solder | Number of Positions | 25 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | 15µin (0.38µm) |
| Material - Housing & Prism | :Nickel Plated | Shell Size, Connector Layout | 0.050 Pitch x 0.050 Row to Row |
Product Info
| Type | Commercial Micro-D | Gender | PIN |
| Series | :83614 | Features | Board Lock, Shielded |
| Number of Ports | 1 | ||
Environmental
| Mating Cycles | :500 | Operating Temperature | -40°C ~ 125°C |
