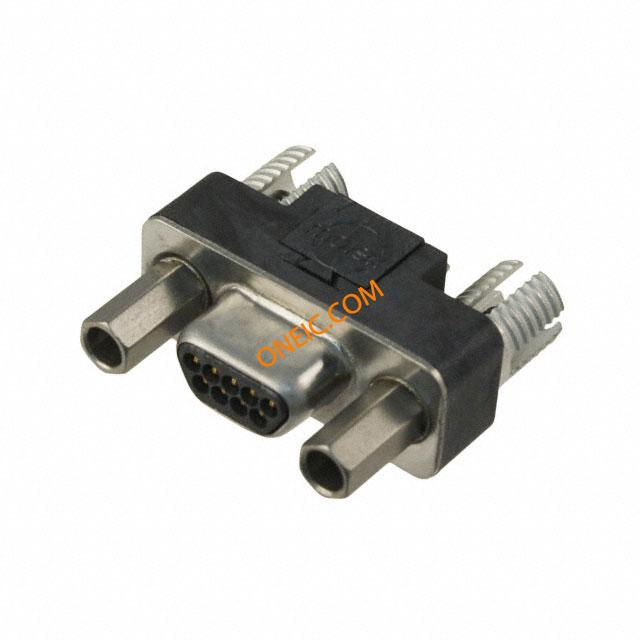

0836119023
| Manufacturer | |
| Description | Conn Commercial Micro-D PIN 9 POS 1.27mm Solder ST Thru-Hole 9 Terminal 1 Port Tube CMD VERTICAL PLUG 9 CIR W/JKPOST |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 162 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 350V | Current Rating (Max) | 1A |
| Voltage - Input (Min) | 300VAC | ||
Mechanical
| Depth | 7.79 | Pitch | 1.27 |
| Packaging | Tube | Termination | Solder |
| Contact Type | Signal | Mounting Type | Straight |
| Connector Type | Plug, Male Pins | Contact Finish | Gold Over Nickel |
| Flange Feature | Mating Side; Female Screwlock (2-56) | Number of Rows | 2 |
| Connector Style | D-Type, Micro-D | Contact Material | Copper Alloy |
| Housing Material | Liquid Crystal Polymer (LCP) | Length - Overall | 19.88 |
| 1st Contact Gender | PIN | Number of Contacts | 9 |
| Number of Positions | 9 | Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish Thickness | 15µin (0.38µm) | Shell Size, Connector Layout | 0.050 Pitch x 0.050 Row to Row |
Product Info
| Type | Commercial Micro-D | Features | Shielded |
| Number of Ports | 1 | ||
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
