0757830007
| Manufacturer | |
| Description | Conn I-Pass RCP 26 POS 0.8mm Solder RA SMD 26 Terminal 1 Port Embossed T/R CONN RCPT IPASS R/A 26POS SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Tape & Reel | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 0.5/Contact | Voltage - Input (Min) | 30VDC|30VAC |
Mechanical
| Depth | 22.57 | Pitch | 0.8 |
| Height | 8.47 | Packaging | Embossed Tape and Reel |
| Termination | Solder | Housing Color | Black |
| Mounting Type | Surface Mount | Connector Type | SAS, Mini |
| Contact Finish | Gold Over Nickel | Connector Style | Receptacle |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Length - Overall | 13.8 | Number of Contacts | 26 |
| Number of Positions | 26 | Contact Finish Thickness | 15µin (0.38µm) |
Product Info
| Type | I-Pass | Gender | RCP |
| Features | Board Guide | Number of Ports | 1 |
| Number of Positions Loaded | 26 | ||
Documents & Media
PDF Document
Similar Parts
0795752001
molex
Cable Assembly Twin-ax 0.3m 30AWG 26 POS Mini SAS to 26 POS Mini SAS M-M Crimp-Crimp Bag Cable Assembly Twin-ax 0.3m 30AWG 26 POS Mini-SAS to 26 POS Mini-SAS M-M Crimp-Crimp Bag 26CKT IPASS-IPASS CTRL-CTRL 0.3M
$6.5688
Details
0795752014
Molex Inc
CONN IPASS CBL ASS 26CIRC 2.54MM
$5.5340
Details

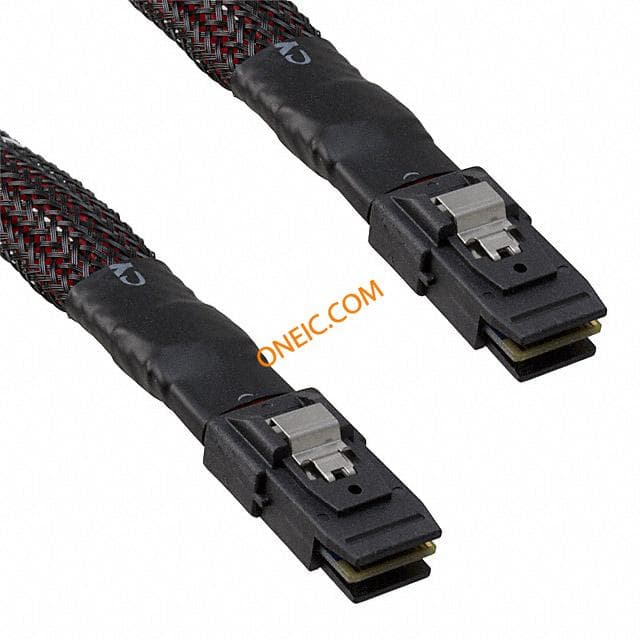

0795752004
