0744410010
| Manufacturer | |
| Description | Conn SFP RCP 20 POS 0.8mm Solder RA SMD 20 Terminal 1 Port Embossed T/R CONN RCPT 20POS R/A GOLD SMD Connector |
| Category |
Business
| Other Names | WM1696CT | Standard Package | Tape & Reel |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 10 mohm | Current Rating (Max) | 0.5/Contact A |
| Voltage - Input (Min) | 30VDC|30VAC | Voltage - Supply (Min) | 30VDC/30VAC |
Mechanical
| Depth | 8.23 mm | Pitch | 0.8 mm |
| Height | 5.37 mm | Packaging | Embossed Tape and Reel |
| Termination | Solder | Housing Color | Black |
| Mounting Type | Surface Mount | Connector Type | SFP |
| Contact Finish | Gold Over Nickel | Mounting Style | Surface Mount |
| Connector Style | Receptacle | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Length - Overall | 11 mm |
| Number of Contacts | 20 | Number of Positions | 20 |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | SFP | Gender | RCP |
| Features | Board Guide | Number of Ports | 1 |
| RF Family/Standard | 74441 | Number of Positions Loaded | 20 |
Environmental
| Operating Temperature | -40C to 85C | ||
Documents & Media
Similar Parts

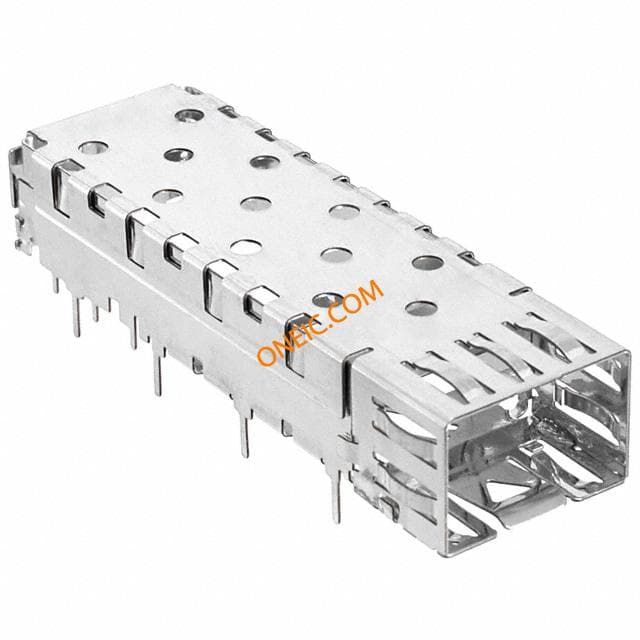

0739270010
molex
Connector Accessories Small Form Factor Pluggable SFP Cage Assembly High Performance Alloy Right Angle Tray CONN SFP CAGE R/A SOLDER POST

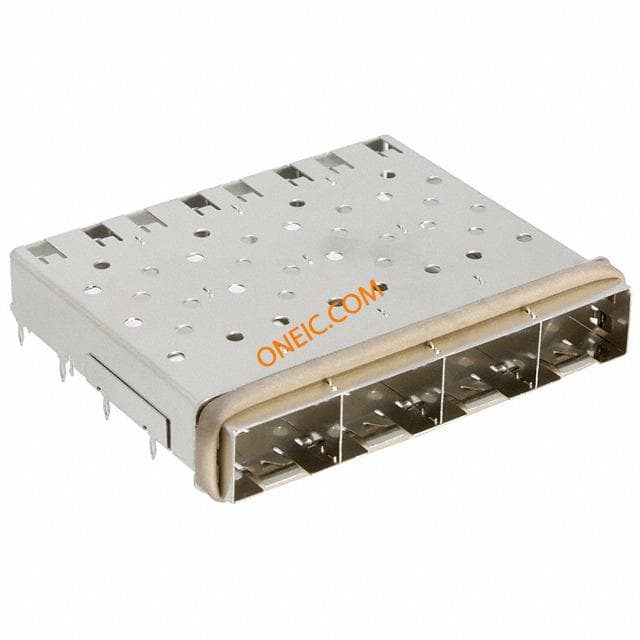

0739270411
molex
Connector Accessories SFP Ganged Cage Right Angle Tray CONN SFP CAGE 1X4 PRESS-FIT
73929-0001
Molex
Cable Assemblies SFP Copper Patch Cbl 1m Passive CABLE SFP 20POS MALE-MALE 1M Ethernet Cables / Networking Cables SFP Copper Patch Cbl 1m Passive

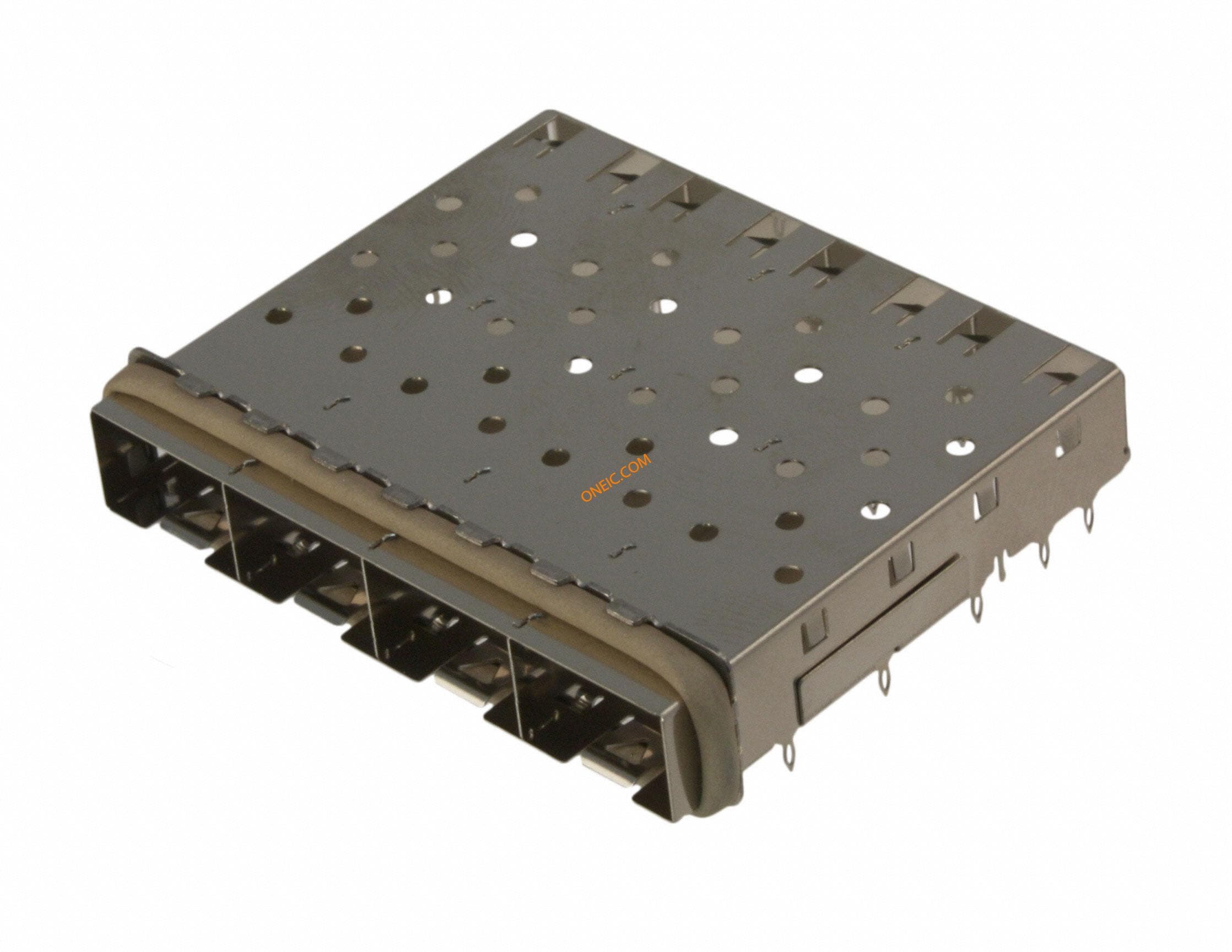

0747280420
Molex
Connector Accessories SFP Light Pipe Kit Tray 1X4 GANGED CAGE W/PRESS FIT
0747650906
Molex
Connector Accessories SFP Cage Bag Light Blue CONN SFP+ LOOPBCK ADAPTER UNIVER
0747230004
Molex
Connector Accessories SFP Ganged Cage Tray 1X5 SFP CAGE ASSY W/ PRESS PINS
0747220004
Molex
Connector Accessories SFP Ganged Cage Tray 1X2 SFP CAGE ASSY W/ PRESS PINS
74741-0005
Molex Connector Corporation
CONN ADAPT 1000 BASE-T SFP Conn SFP Adapter PL/F 10/10 POS 0.8mm ST 20 Terminal 1/1 Port Bag

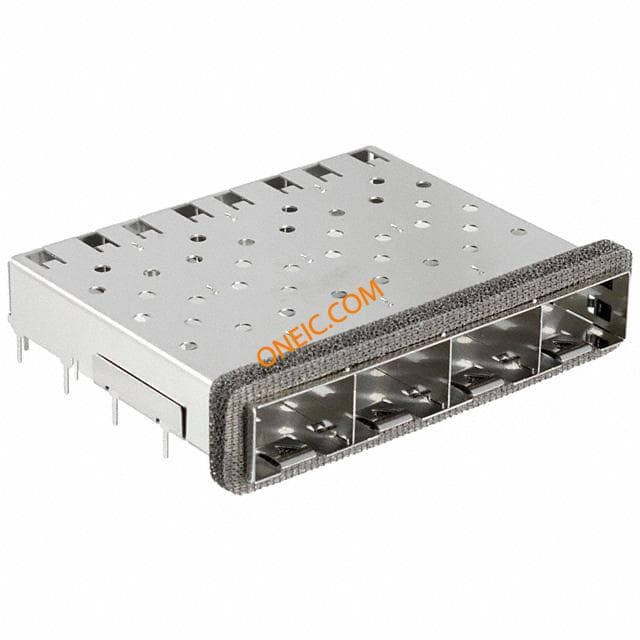

0739270402
