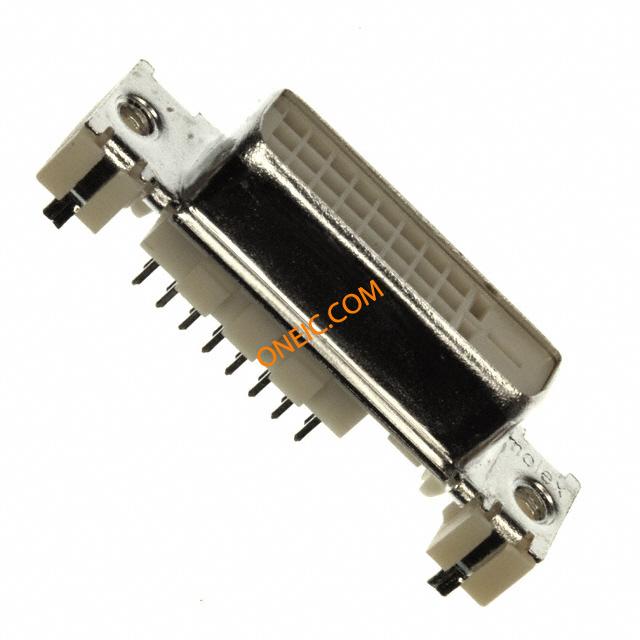

0743205000
| Manufacturer | |
| Description | Conn MicroCross RCP 24 POS 1.91mm Solder ST Thru-Hole 24 Terminal 1 Port Tray CONN RCPT VERT ANALOG DGTL DVI |
| Category |
Business
| Lead Time | 55 Days | Subcategory | Connector Audio and Video |
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 3/Contact | Voltage - Input (Min) | 40VAC |
Mechanical
| Depth | 18.03 | Pitch | 1.91 |
| Height | 9.91 | Packaging | Tray |
| Termination | Solder | Mounting Type | Through Hole |
| Connector Type | DVI-D, Dual Link | Contact Finish | Gold Over Nickel |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Length - Overall | 36.83 | Number of Contacts | 24 |
Product Info
| Type | MicroCross | Gender | RCP |
| Features | Board Guide, Flange, Shielded | Number of Ports | 1 |
| Industry Aliases | 74320-5000, 743205000 | ||
Environmental
| Operating Temperature | 85 | ||
