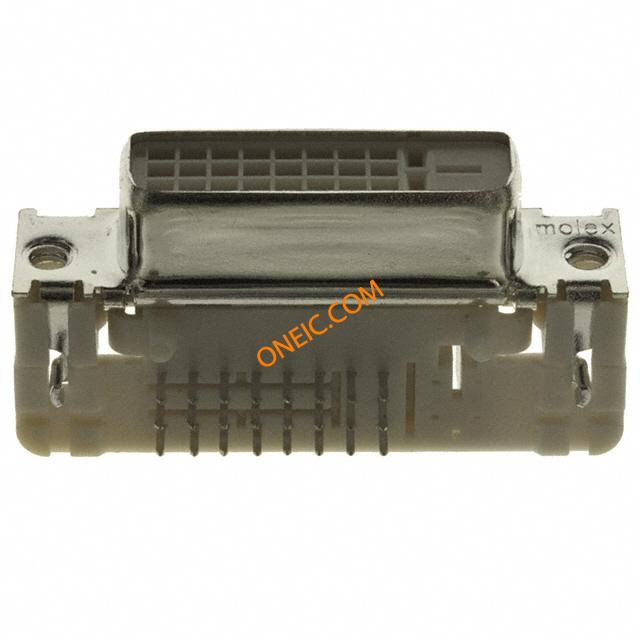

0743204000
| Manufacturer | |
| Description | Conn MicroCross RCP 24 POS 1.91mm Solder RA Thru-Hole 24 Terminal 1 Port Box CONN RCPT RT/ANG ANALOG DGTL DVI |
| Category |
Business
| Lead Time | 48 Days | Subcategory | Connector Audio and Video |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 3/Contact A | Voltage - Input (Min) | 40VAC |
| Voltage - Supply (Min) | 40VAC | ||
Mechanical
| Depth | 18.03 mm | Pitch | 1.91 mm |
| Height | 9.91 mm | Packaging | Box |
| Termination | Solder | Mounting Type | Through Hole |
| Connector Type | DVI-D, Dual Link | Contact Finish | Gold |
| Mounting Style | Through Hole | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Length - Overall | 36.83 mm |
| Number of Contacts | 24 | ||
Product Info
| Type | MicroCross | Gender | RCP |
| DELETED | Compliant | Features | Board Guide, Flange, Shielded |
| Number of Ports | 1 | Industry Aliases | 74320-4000, 743204000 |
Environmental
| Operating Temperature | -20C to 85C | Operating Temperature - Junction | 85C |
