点击放大查看

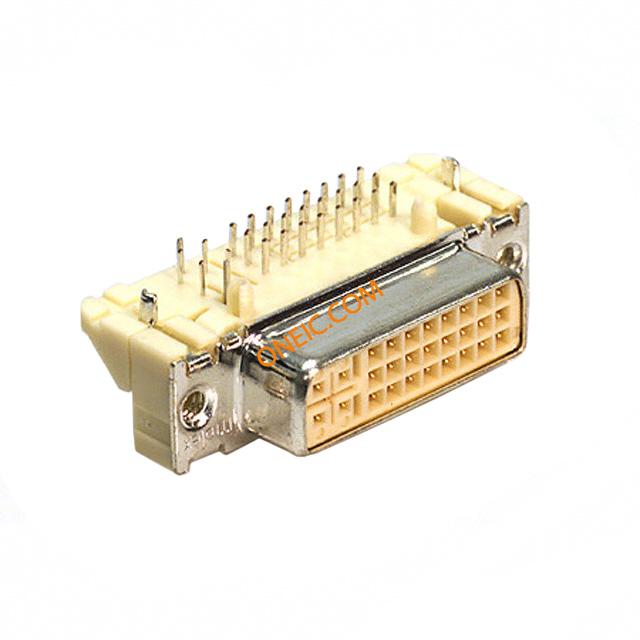

0743201004
| Manufacturer | |
| Description | Conn MicroCross RCP 29 POS 1.91mm Solder RA Thru-Hole 29 Terminal 1 Port Tray CONN RECEPT ANALOG DIGITAL DVI Connector: DVI-I; socket; PIN:29; Plating: gold flash; angled 90° |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 48 Days | Subcategory | Connector Audio and Video |
| Standard Package | Trays | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 3/Contact A | Voltage - Input (Min) | 40VAC |
| Voltage - Supply (Min) | 40VAC | ||
Mechanical
| Depth | 18.03 mm | Pitch | 1.91 mm |
| Height | 9.91 mm | Weight | 0.01 kg |
| Packaging | Tray | Orientation | angled 90° |
| Termination | Solder | Mounting Type | Through Hole |
| Connector Type | DVI-I, Dual Link | Contact Finish | Gold Over Nickel |
| Mounting Style | Through Hole | Contact Material | Copper Alloy |
| Housing Material | Polymer | Length - Overall | 36.83 mm |
| Package Quantity | 30 | Connector - Cable | socket |
| Number of Contacts | 29 | Number of Positions | 29 |
| Thread/Screw/Hole Size | UNC4-40 | Contact Material - Plating | gold flash |
Product Info
| Spg | 30 | Type | MicroCross |
| Gender | RCP | Features | Board Guide, Flange, Shielded |
| Number of Ports | 1 | Number of Units | 1 |
| Industry Aliases | 74320-1004, 743201004 | ||
Environmental
| Operating Temperature | -20C to 85C | Operating Temperature - Junction | 85C |
Documents & Media
PDF Document
PDF Document
