0743201000
| Manufacturer | |
| Description | Conn MicroCross RCP 29 POS 1.91mm Solder RA Thru-Hole 29 Terminal 1 Port Tray CONN RCPT 24POS RT ANGLE ANALOG Connector: DVI-I; socket; PIN:29; Plating: gold plated; angled 90°
sale Connector |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 66 Days | Subcategory | Connector Audio and Video |
| Standard Package | Trays | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Current Rating (Max) | 3/Contact A | Voltage - Supply (Min) | 40VAC |
Mechanical
| Depth | 18.03 mm | Pitch | 1.91 mm |
| Height | 9.91 mm | Weight | 9.44 g |
| Packaging | Tray | Orientation | angled 90° |
| Termination | Solder | Mounting Type | Through Hole, Right Angle, Horizontal |
| Connector Type | DVI-I, Dual Link | Contact Finish | Gold Over Nickel |
| Mounting Style | Through Hole | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Length - Overall | 36.83 mm |
| Package Quantity | 27 | Connector - Cable | socket |
| Number of Contacts | 24 | Number of Positions | 29 |
| Plating - Thickness | 0.76µm | Thread/Screw/Hole Size | UNC4-40 |
| Contact Material - Plating | gold plated | ||
Product Info
| Spg | 27 | Type | MicroCross |
| Gender | Receptacle | DELETED | Compliant |
| Features | Board Guide, Flange, Shielded | Number of Ports | 1 Port |
| Number of Units | 1 | Industry Aliases | 74320-1000, 743201000 |
Environmental
| Operating Temperature | -20C to 85C | Operating Temperature - Junction | 85C |
Documents & Media
PDF Document
PDF Document
Similar Parts

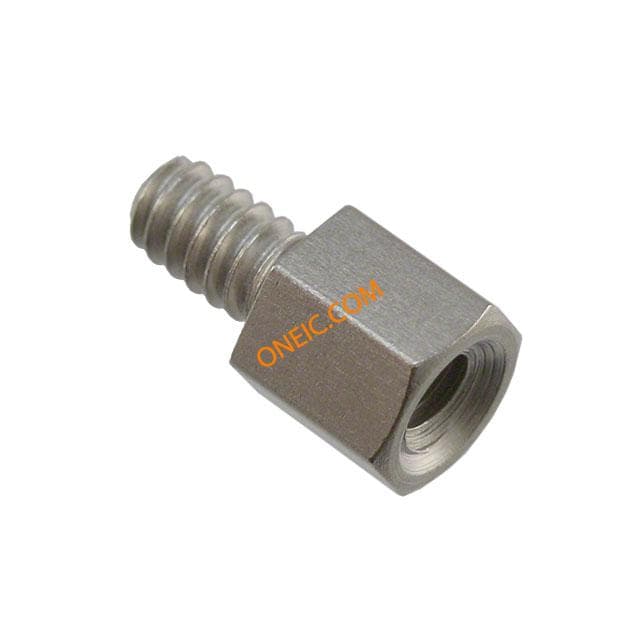

0717810001
molex
Connector Accessories Panel Mount Hex Screw Steel Nickel Finish Bulk PANEL MOUNT JACKPOST SCREWS
$0.1053
Details

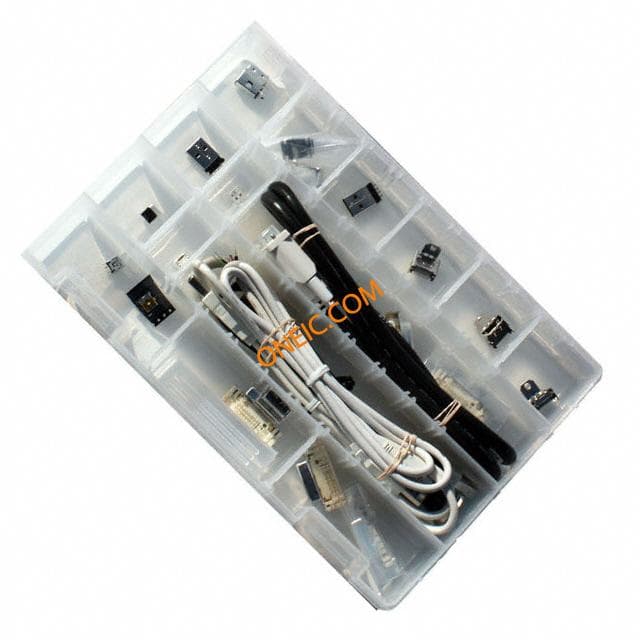

76650-0143
