0705530007
| Manufacturer | |
| Description | Conn Shrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 8POS .100 R/A GOLD |
| Category |
Business
| Lead Time | 21 Days | Subcategory | Connector Headers and PCB Receptacles |
| Standard Package | Rail / Tube | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 30 mohm | Current Rating (Max) | 3/Contact A |
| Voltage - Input (Min) | 250V | Voltage - Supply (Min) | 250V |
Mechanical
| Color | Black | Depth | 13.59 mm |
| Pitch | 2.54 mm | Height | 6.99 mm |
| Packaging | Tube | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Tin Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 1 | Contact Material | Phosphor Bronze |
| Housing Material | Polyester | Length - Overall | 22.87 mm |
| Number of Contacts | 8 | Number of Positions | 8 |
| Contact Length - Mating | 0.240" (6.10mm) | Contact Finish Thickness | 15µin (0.38µm) |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Industry Aliases | 70553-0007, 705530007 | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts

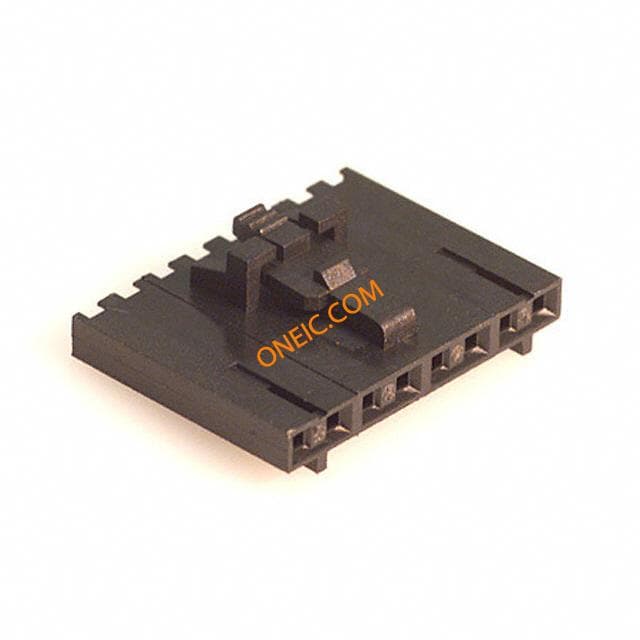

0050579408
molex
Conn Housing F 8 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 8POS .100 W/LATCH

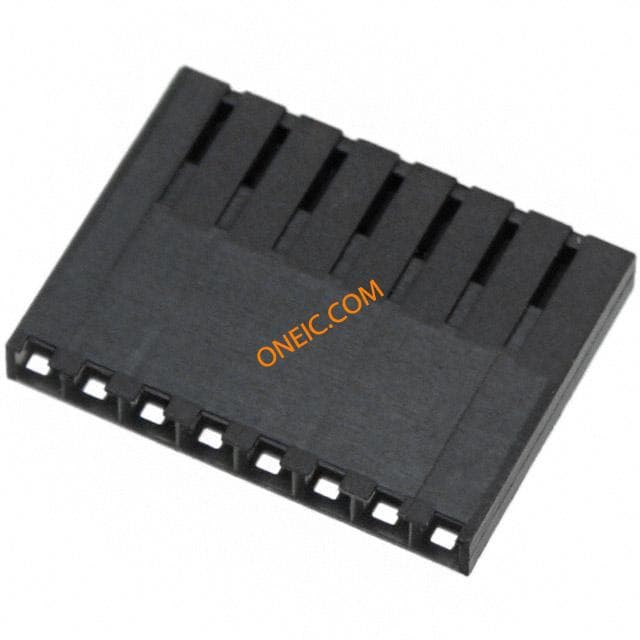

0050579208
Molex
Conn Housing RCP 8 POS 2.54mm Crimp ST Bag CONN HSG 8POS .100 SINGLE VER C
14-56-2081
molex
Conn IDC Connector F 8 POS 2.54mm IDT ST Cable Mount Tube CONN IDC 8POS .100 GOLD 24AWG
0704002082
Molex Inc
CONN SL IDT OPT G GOLD 8POS
0704003084
Molex Inc
CONN SL IDT OPT D GOLD 8POS

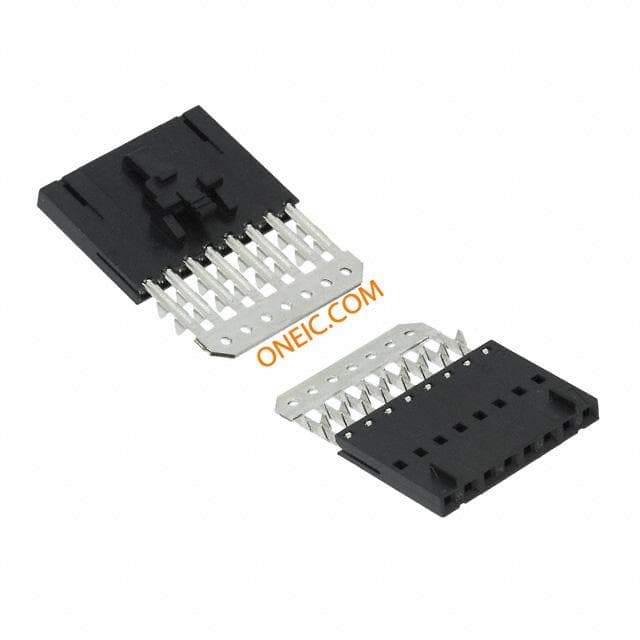

15-38-8080
Molex Connector Corporation
CONN FFC FEMALE 8POS .100 TIN FFC & FPC Connectors SL FFC/FPC Opt G Fem 8CKT TIN Conn IDC Connector F 8 POS 2.54mm IDT ST Cable Mount Tube

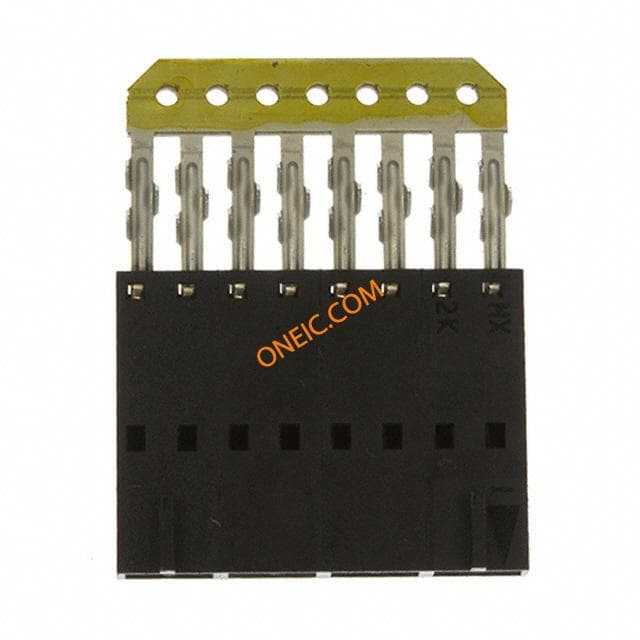

15-47-4083
Molex Connector Corporation
CONN FFC FEMALE 8POS .100 GOLD FFC & FPC Connectors RECP FEMALE SNGL 8P Conn IDC Connector F 8 POS 2.54mm IDT ST Cable Mount Tube

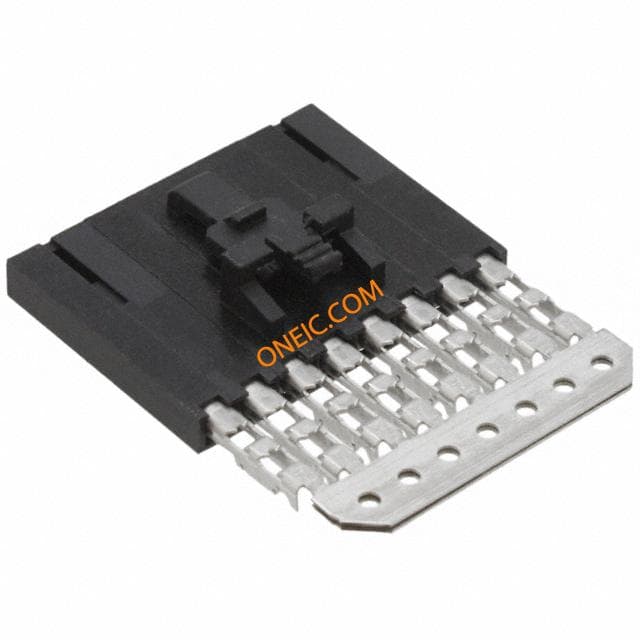

14-56-2082
