点击放大查看
0705510001
| Manufacturer | |
| Description | Conn Shrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Tube SL R/A LATCH HEADER TIN 2CKT |
| Category |
Business
| Standard Package | Rail / Tube | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 15 | Current Rating (Max) | 3/Contact |
| Voltage - Input (Min) | 250VAC | ||
Mechanical
| Color | Black | Depth | 13.59 |
| Pitch | 0.100" (2.54mm) | Height | 6.99 |
| Packaging | Tube | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Tin Over Nickel | Fastening Type | Latch Holder |
| Number of Rows | 1 | Contact Material | Brass |
| Housing Material | Thermoplastic | Number of Contacts | 2 |
| Number of Positions | 2 | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness | 150µin (3.81µm) | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Features | Board Lock | Number of Positions Loaded | All |
Documents & Media
Similar Parts
0050579502
molex
Conn Housing RCP 2 POS 2.54mm Crimp ST Bag CONN HOUSING RCPT .100 2POS

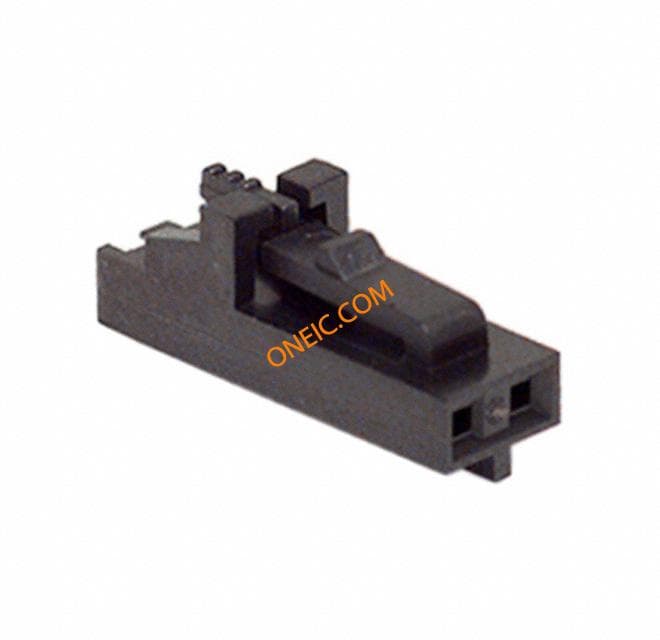

0050579402
