0705430021
| Manufacturer | |
| Description | Conn Shrouded Header HDR 22 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 22POS .100 VERT GOLD |
| Category |
Business
| Standard Package | Rail / Tube | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 30 | Current Rating (Max) | 3/Contact |
| Voltage - Input (Min) | 250V | ||
Mechanical
| Color | Black | Depth | 6.6 |
| Pitch | 0.100" (2.54mm) | Height | 11.81 |
| Packaging | Tube | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Gold Over Nickel | Number of Rows | 1 |
| Contact Material | Phosphor Bronze | Housing Material | Polyester |
| Length - Overall | 58.43 | Number of Contacts | 22 |
| Number of Positions | 22 | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness | 15µin (0.38µm) | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Number of Positions Loaded | All | ||
Documents & Media
Similar Parts
0050579222
Molex
Conn Housing F 22 POS 2.54mm Crimp ST Cable Mount Bag CONN HSG 22POS .100 SINGLE VER C
14-60-0221
molex
Conn IDC Connector F 22 POS 2.54mm IDT ST Cable Mount Tube CONN IDC 22POS .100 TIN 24AWG

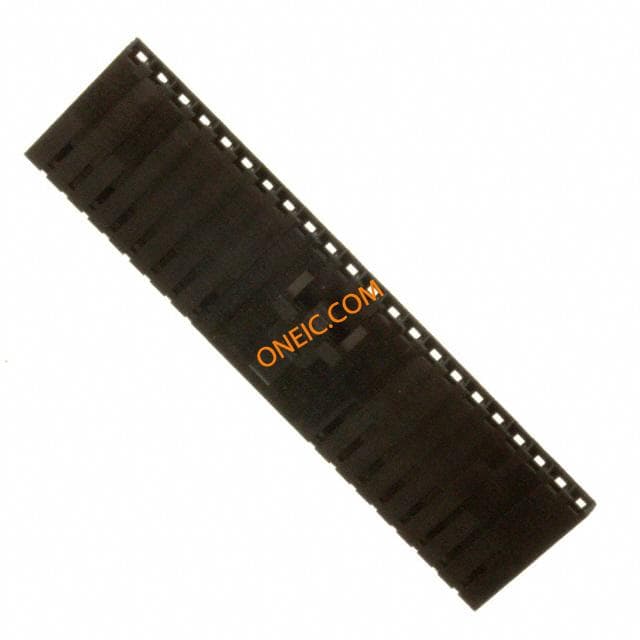

50-57-9422
