0705430016
| Manufacturer | |
| Description | Conn Shrouded Header HDR 17 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 17POS .100 VERT GOLD |
| Category |
Business
| Standard Package | Rail / Tube | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 30 | Current Rating (Max) | 3/Contact |
| Voltage - Input (Min) | 250V | ||
Mechanical
| Color | Black | Depth | 6.6 |
| Pitch | 2.54 mm | Height | 11.81 |
| Packaging | Tube | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Gold Over Nickel | Number of Rows | 1 |
| Contact Material | Phosphor Bronze | Housing Material | Polyester |
| Length - Overall | 45.73 | Number of Contacts | 17 |
| Number of Positions | 17 | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness | 15µin (0.38µm) | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Number of Positions Loaded | All | ||
Documents & Media
Similar Parts
14-56-2172
molex
Conn IDC Connector F 17 POS 2.54mm IDT ST Cable Mount Tube CONN IDC 17POS .100 GOLD 24AWG Headers & Wire Housings CGrid SL IDT Opt G 15 SAu 17Ckt
0050579217
Molex
Conn Housing F 17 POS 2.54mm Crimp ST Cable Mount Bag CONN HSG 17POS .100 SINGLE VER C
15-38-8170
molex
Conn IDC Connector F 17 POS 2.54mm IDT ST Cable Mount Tube CONN FFC FEMALE 17POS .100 TIN FFC & FPC Connectors SL FFC/FPC Opt G Fem 17CKT TIN

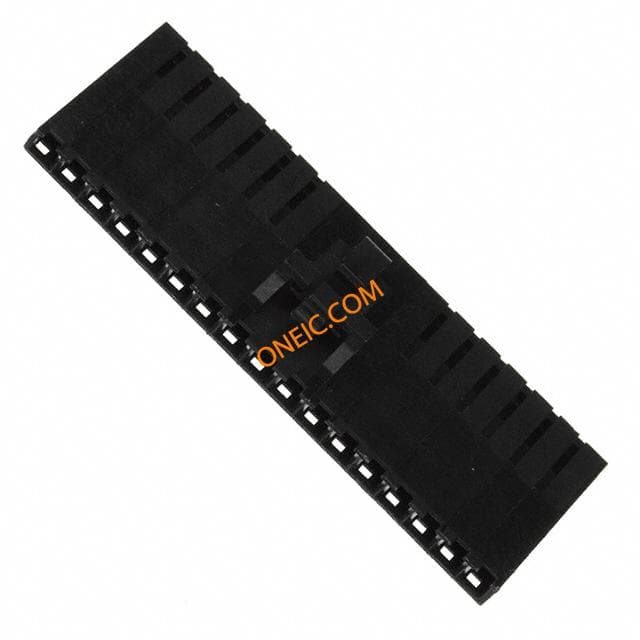

50-57-9417
