0702471051
| Manufacturer | |
| Description | Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 10POS .100 R/A 15AU |
| Category |
Business
| Standard Package | Trays | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 2.5/Contact | Voltage - Input (Min) | 250VAC |
Mechanical
| Color | Black | Depth | 11.81 |
| Pitch | 0.100" (2.54mm) | Height | 8.89 |
| Packaging | Tray | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| Housing Color | Black | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Gold Over Nickel |
| Number of Rows | 2 | Contact Material | Phosphor Bronze |
| Housing Material | Polybutylene Terephthalate | Length - Overall | 20.32 |
| Number of Contacts | 10 | Number of Positions | 10 |
| Contact Length - Mating | 0.240" (6.10mm) | Contact Finish Thickness | 15µin (0.38µm) |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Number of Positions Loaded | All | ||
Documents & Media
Similar Parts
0903270366
molex
Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Embossed T/R 1.27MM PF LOPRO IDT RL-D WHT
0022552102
molex
Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING DUAL ROW 10POS .100
0903273364
molex
Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Bag Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Embossed T/R 1.27MM PF LOPRO IDT RL-B WHT
15-44-3205
Molex
Headers & Wire Housings Obsolete CONN RECEPT 10POS .100 VERT PCB
15-45-1305
Molex
Headers & Wire Housings Obsolete CONN RECEPT 10POS .100 VERT PCB
0903270310
Molex
Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Bag CONN RECEPT IDT 10POS 1.27MM TIN Connector: wire-board; PicoFlex; plug; female; 10; tinned; 1.2A

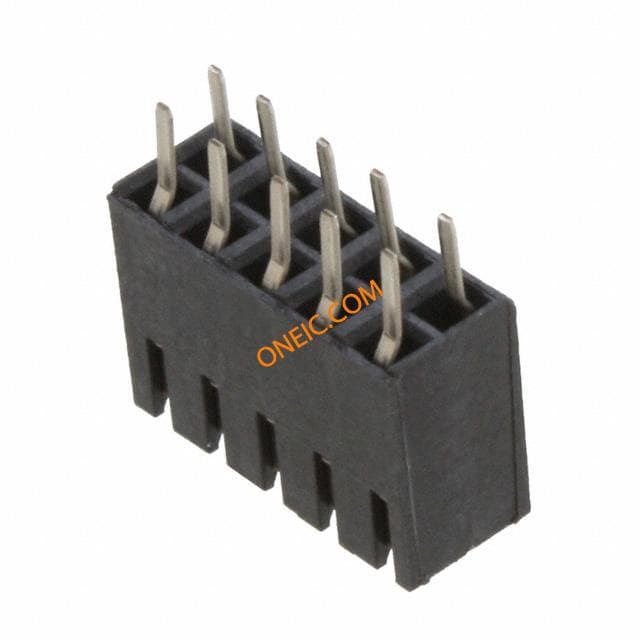

15-44-5110
