0674911032
| Manufacturer | |
| Description | Conn SATA PL 7 POS Solder ST Thru-Hole 7 Terminal 1 Port Tray CONN HEADER SATA 7POS PCB GOLD |
| Category |
Business
| Standard Package | Trays | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 1.5/Contact | Voltage - Input (Min) | 15V |
Mechanical
| Depth | 4 | Height | 8.4 |
| Packaging | Tray | Termination | Solder |
| Mounting Type | Through Hole | Connector Type | SATA |
| Contact Finish | Gold Over Nickel | Connector Style | Header |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Length - Overall | 16 | Number of Contacts | 7 |
| Number of Positions | 7 | ||
Product Info
| Type | SATA | Gender | PL |
| Number of Ports | 1 | ||
Environmental
| Operating Temperature | 85 | ||
Documents & Media
Similar Parts

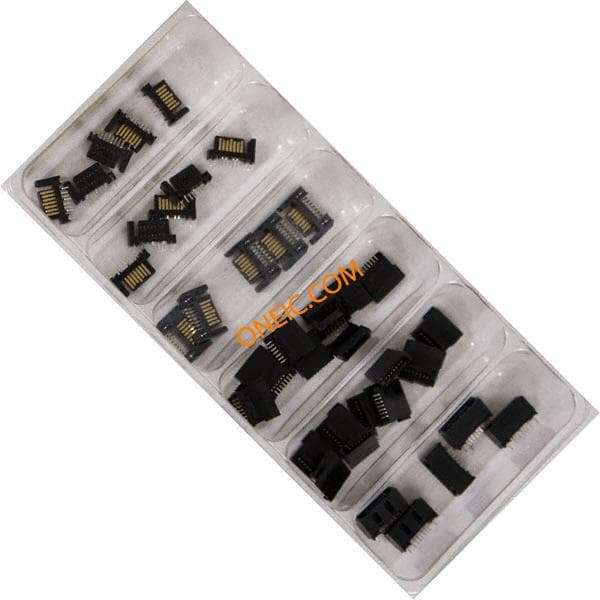

76650-0169
