0674903225
| Manufacturer | |
| Description | Conn SATA HDR 7 POS 1.27mm Solder RA SMD 7 Terminal 1 Port Tray SATA SYSTEM PLUG R/A |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Trays | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 1.5/Contact | Voltage - Input (Min) | 15V |
Mechanical
| Depth | 11.56 | Pitch | 1.27 |
| Height | 4 | Packaging | Tray |
| Termination | Solder | Mounting Type | Surface Mount |
| Connector Type | SATA | Contact Finish | Gold Over Nickel |
| Connector Style | Header | Contact Material | Copper Alloy |
| Housing Material | Plastic | Length - Overall | 17.54 |
| Number of Contacts | 7 | Number of Positions | 7 |
| Contact Finish Thickness | 15µin (0.38µm) | ||
Product Info
| Type | SATA | Gender | HDR |
| Features | Board Lock | Number of Ports | 1 |
Environmental
| Operating Temperature | 85 | ||
Documents & Media
PDF Document
Similar Parts

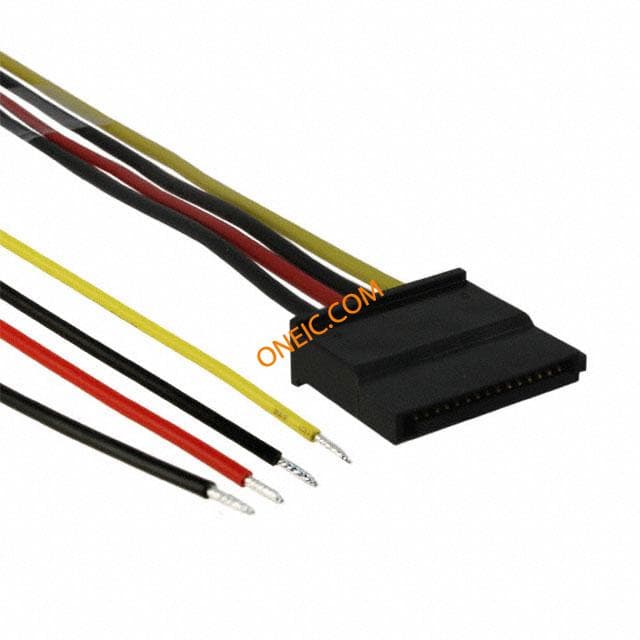

0887511410
molex
Cable Assembly Power Cord 1.5m 18AWG 4 POS SATA F Crimp Bag SATA POWER CABLE 1.5M TYPE G/F
$498.0456
Details
67489-1005
Molex Connector Corporation
CONN RECEPT SATA 7POS R/A Conn SATA F 7 POS 1.27mm RA 7 Terminal 1 Port Tray
$1.8972
Details

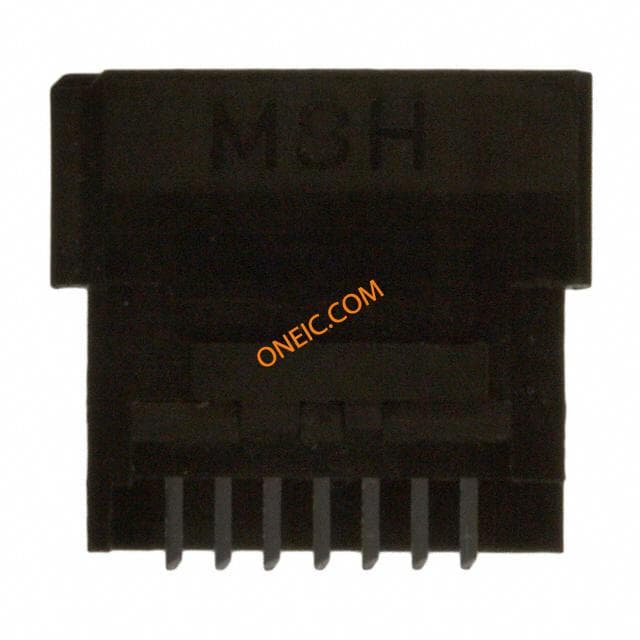

67489-8005
