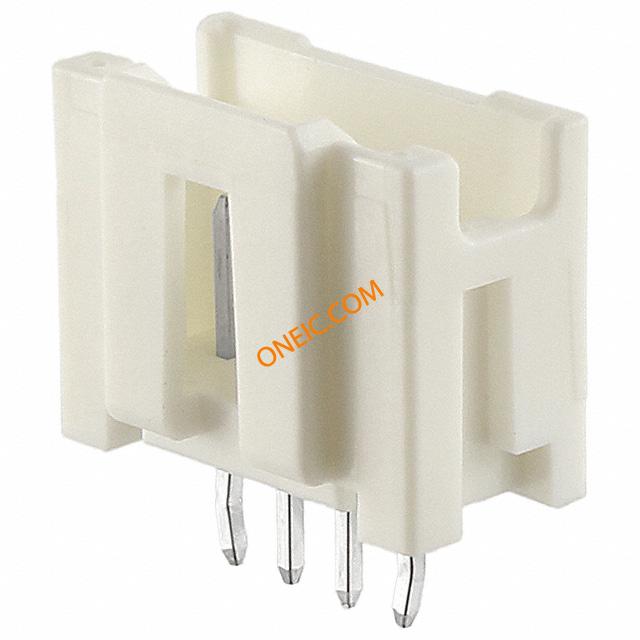

0559320430
| Manufacturer | |
| Description | Conn Wire to Board HDR 4 POS 2mm Solder ST Thru-Hole Tray 2.0 WTB PLG HSG ASSY STR |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 2,700 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 3/Contact A | Voltage - Input (Min) | 250V |
| Voltage - Supply (Min) | 250V | ||
Mechanical
| Color | Natural | Depth | 7.15 mm |
| Pitch | 0.079" (2.00mm) | Height | 13.2 mm |
| Packaging | Tray | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Natural |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Tin | Fastening Type | Latch Holder |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Housing Material | Polyester | Length - Overall | 12 mm |
| Number of Contacts | 4 | Number of Positions | 4 |
| Contact Length - Mating | 0.144" (3.66mm) | ||
Product Info
| Type | Wire to Board | Gender | HDR |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -25C to 85C | ||
