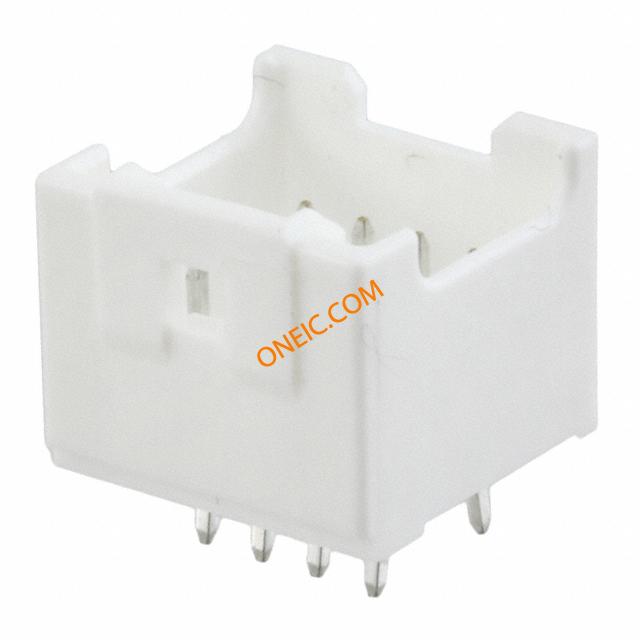

0559170810
| Manufacturer | |
| Description | Conn Shrouded Header HDR 8 POS 2mm Solder ST Thru-Hole Tray 2.0 WTB DUAL CONN DIP PLG HSG |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Trays | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Contact Resistance | 20 mohm | Current Rating (Max) | 3/Contact A |
| Voltage - Supply (Min) | 250VDC/250VAC | ||
Mechanical
| Color | Natural | Depth | 11.5 mm |
| Pitch | 0.079" (2.00mm) | Height | 9.75 mm |
| Packaging | Bulk | Row Spacing | 0.197" (5.00mm) |
| Termination | Press-Fit, Solder | Contact Type | Male Pin |
| Housing Color | White | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Tin |
| Fastening Type | Latch Holder | Mounting Style | Through Hole |
| Number of Rows | 2 | Contact Material | Brass |
| Length - Overall | 11.4 mm | Number of Contacts | 2 |
| Number of Positions | 8 | Contact Length - Mating | 0.150" (3.81mm) |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Features | Board Guide | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -25C to 85C | ||
