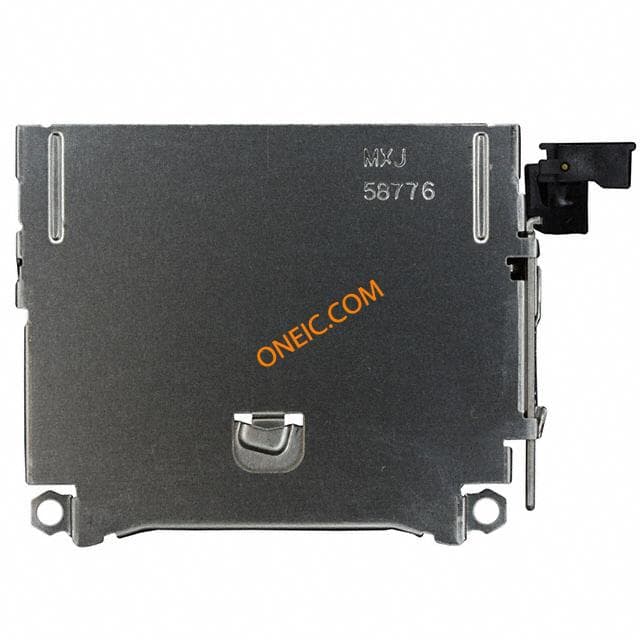

0553595029
| Manufacturer | |
| Description | Conn Compact Flash Card HDR 50 POS 1.27mm Solder RA SMD Tray 0.5A/Contact CONN CF CARD HEADER .05" R/A SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 146 Days | Subcategory | Connector Memory Card |
| Standard Package | Trays | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Current Rating (Max) | 0.5/Contact A | Voltage - Input (Min) | 100VAC |
| Voltage - Supply (Min) | 100VAC | ||
Mechanical
| Depth | 40.1 mm | Pitch | 1.27 mm |
| Height | 6 mm | Packaging | Tray |
| Termination | Solder | Pitch - Post | 0.05 mm |
| Mounting Type | Surface Mount | Connector Type | Connector |
| Contact Finish | Gold Over Palladium Nickel | Mounting Style | Surface Mount |
| Number of Rows | 2 | Insertion Force | 28.8N |
| Contact Material | Phosphor Bronze | Housing Material | Liquid Crystal Polymer |
| Length - Overall | 47.23 mm | Mounting Feature | Reverse - Bottom |
| Height Above Board | 0.236" (6.00mm) | Number of Contacts | 50 |
| Number of Positions | 50 | Contact Finish Thickness | 8µin (0.20µm) |
| Insertion, Removal Method | Push In, Pull Out | ||
Product Info
| Type | Compact Flash Card | Gender | HDR |
| DELETED | Compliant | Features | Board Guide, Card Guide |
| Card Type | CompactFlash® - Type I, II | Ejector Side | Button Present |
| Industry Aliases | 55359-5029, 553595029 | ||
Environmental
| Operating Temperature | -20C to 90C | ||
