0533980471
| Manufacturer | |
| Description | Conn Wire to Board HDR 4 POS 1.25mm Solder ST SMD Embossed T/R CONN HEADER 4POS 1.25MM VERT SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | WM7608CT | Standard Package | Tape & Reel |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 20 mohm | Current Rating (Max) | 1/Contact A |
| Voltage - Input (Min) | 125V | Voltage - Supply (Min) | 125V |
Mechanical
| Color | Natural | Depth | 3.7 mm |
| Pitch | 1.25 mm | Height | 4.7 mm |
| Packaging | Embossed Tape and Reel | Termination | Solder |
| Contact Type | Blade Pin | Housing Color | Natural |
| Mounting Type | Surface Mount | Connector Type | Header, Shrouded |
| Contact Finish | Tin Over Nickel | Mounting Style | Surface Mount |
| Number of Rows | 1 | Contact Material | Phosphor Bronze |
| Housing Material | Nylon 4/6 | Length - Overall | 10.15 mm |
| Number of Contacts | 4 | Number of Positions | 4 |
| Contact Finish Thickness | 39µin (1.00µm) | ||
Product Info
| Type | Wire to Board | Gender | HDR |
| Features | Solder Retention | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -40C to 85C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
0510210400
Molex, LLC
. 0510210400 - 4 Position Rectangular Housing Connector Receptacle Natural 0.049" (1.25mm) from Molex. from now!
$0.2128
Details

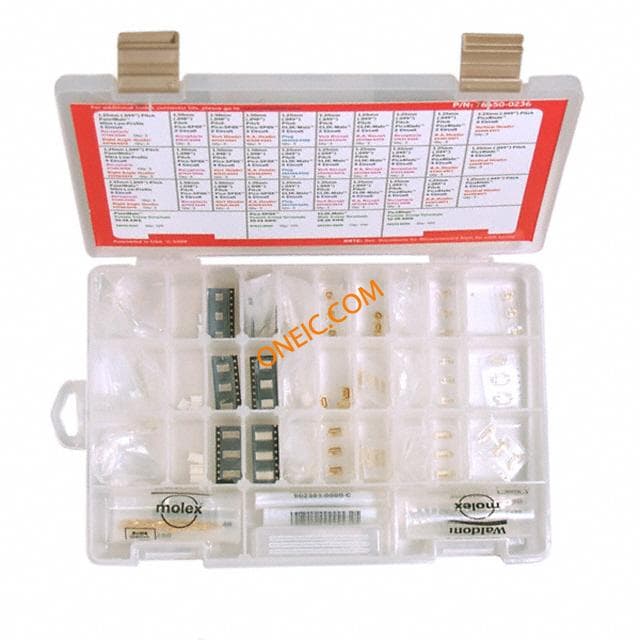

76650-0236
