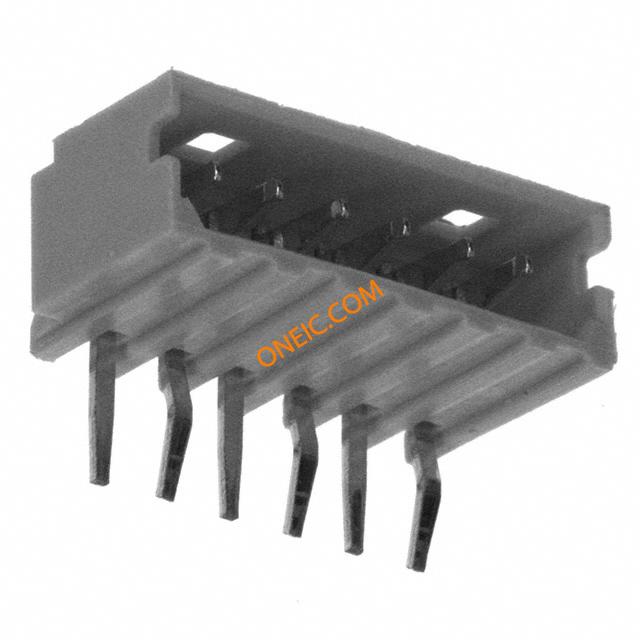

0530150610
| Manufacturer | |
| Description | Conn Shrouded Header HDR 6 POS 2mm Solder RA Thru-Hole Bag CONN HEADER 2MM 6POS RT ANG TIN |
| Category |
Business
| Lead Time | 48 Days | Subcategory | Connector Headers and PCB Receptacles |
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 20 mohm | Current Rating (Max) | 2/Contact A |
| Voltage - Input (Min) | 125V | Voltage - Supply (Min) | 125V |
Mechanical
| Color | White | Depth | 7.6 mm |
| Pitch | 0.079" (2.00mm) | Height | 4.65 mm |
| Packaging | Bag | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Off White |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Tin | Mounting Style | Through Hole |
| Number of Rows | 1 | Contact Material | Phosphor Bronze |
| Housing Material | Nylon 66 | Length - Overall | 14 mm |
| Number of Contacts | 6 | Number of Positions | 6 |
| Contact Length - Mating | 0.122" (3.10mm) | Contact Finish Thickness | 35µin (0.90µm) |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Industry Aliases | 53015-0610, 530150610 | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -20C to 85C | ||
