点击放大查看

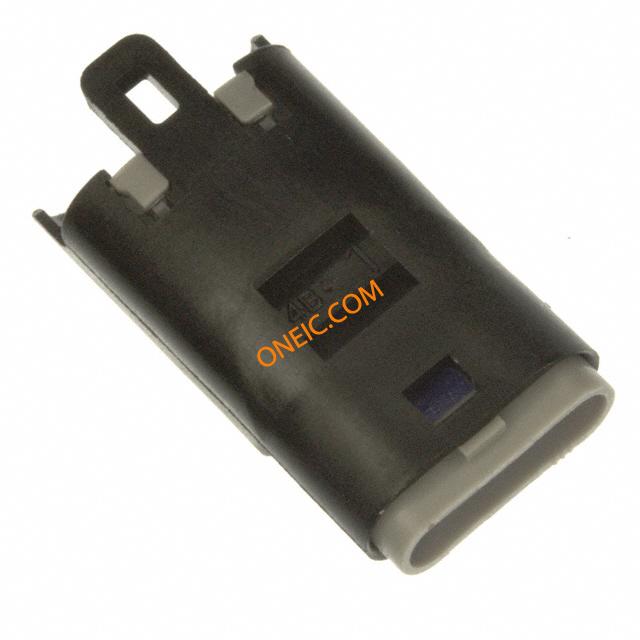

0522660311
| Manufacturer | |
| Description | Conn Housing PL 3 POS 2.5mm Crimp ST Tray CONN PLUG 3POS 2.5MM BLACK |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Trays | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 4/Contact A | Voltage - Input (Min) | 25V |
| Voltage - Supply (Min) | 25V | ||
Mechanical

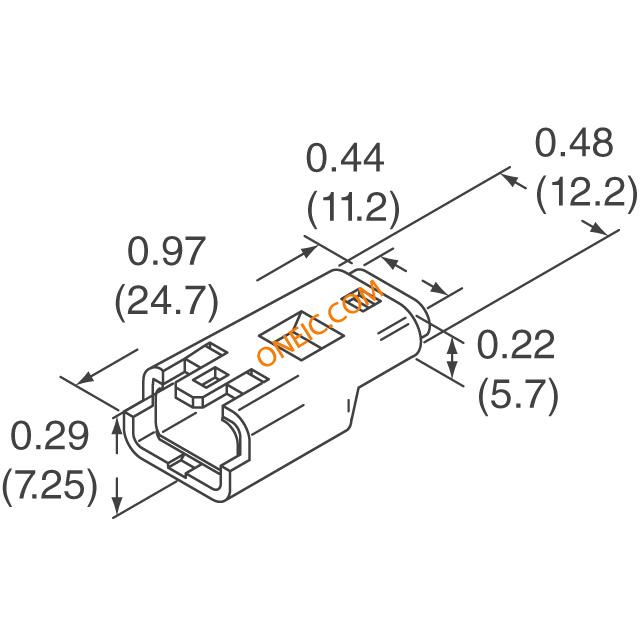

| Color | Black | Depth | 24.7 mm |
| Pitch | 2.5 mm | Height | 7.25 mm |
| Packaging | Tray | Contact Type | Male Pin |
| Housing Color | Black | Mounting Type | Straight |
| Connector Type | Plug | Fastening Type | Detent Lock |
| Number of Rows | 1 | Housing Material | Polyester |
| Length - Overall | 9.7 mm | Number of Contacts | 3 |
| Contact Termination | Crimp | Number of Positions | 3 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Features | Waterproof (Mated, IP67) |
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
PDF Document
Similar Parts

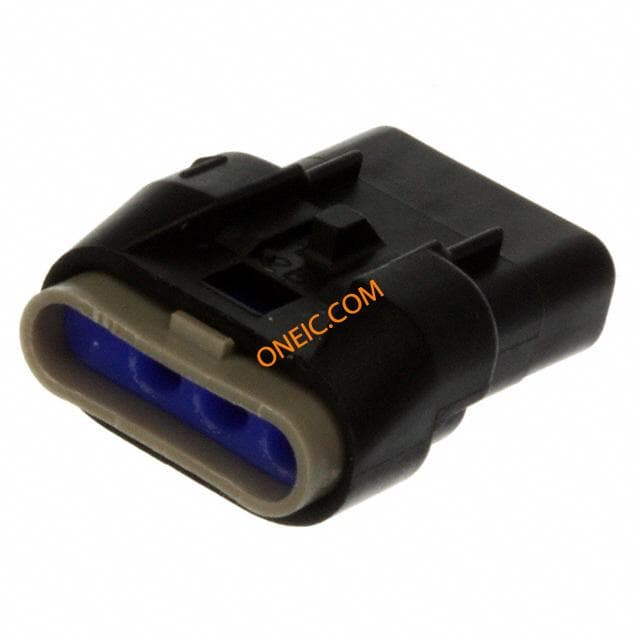

0522130311
