0510211500
| Manufacturer | |
| Description | Conn Housing RCP 15 POS 1.25mm Crimp ST Bag CONN HOUSING 15POS 1.25MM Plug; wire-board; female; PIN:15; w/o terminals; 1.25mm; for cable |
| Category |
Business
| Lead Time | 20 Days | Subcategory | Connector Discrete Wire Housing |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage - Rated | 125V | Current Rating (Max) | 1/Contact |
| Voltage - Input (Min) | 125V | Connector - Voltage Input | w/o terminals |
Mechanical
| Color | Natural | Depth | 3.95 |
| Pitch | 1.25 mm | Height | 3.2 |
| Weight | 0.15 g | Packaging | Bag |
| Contact Type | Female Socket | Pitch - Post | 1.25mm |
| Housing Color | Natural | Mounting Type | Straight |
| Connector Type | Housing, Receptacle | Mounting Style | for cable |
| Number of Rows | 1 | Housing Material | Polybutylene Terephthalate |
| Length - Overall | 20.5 | Package Quantity | 348 |
| Connector - Cable | plug | Number of Contacts | 15 |
| Contact Termination | Crimp | Number of Positions | 15 |
| Material - Housing & Prism | polyamide | 1st Connector Mounting Feature | 1x15 |
Product Info
| Spg | 348 | Note | Contacts Not Provided |
| Type | Housing | Gender | RCP |
| Adapter Series | PicoBlade | Number of Units | 1 |
| Industry Aliases | 51021-1500, 510211500 | ||
Environmental
| Operating Temperature | -40...85°C | ||
Documents & Media
Similar Parts

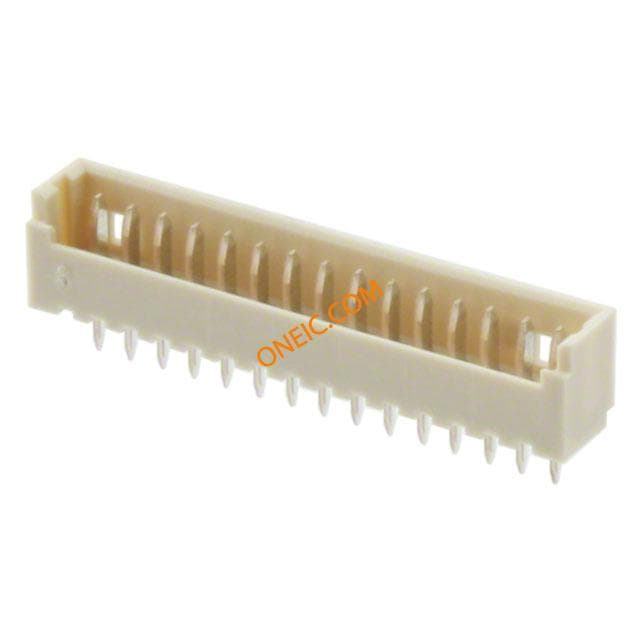

0530471510
molex
Conn Shrouded Header HDR 15 POS 1.25mm Solder ST Thru-Hole Tray CONN HEADER 15POS 1.25MM STR TIN Socket; wire-board; male; PIN:15; 1.25mm; THT; PicoBlade; 1A; tinned
0500588100
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 28-32AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag Contact; female; 0.03÷0.08mm2; PicoBlade; tinned; crimped; in bulk

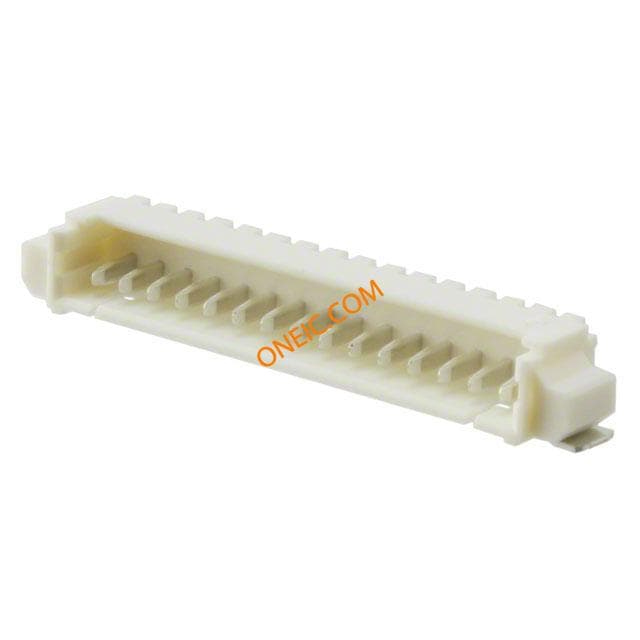

0532611571
molex
Conn Shrouded Header HDR 15 POS 1.25mm Solder RA SMD Embossed T/R CONN HEADER 15POS 1.25MM R/A SMD Socket; wire-board; male; PIN:15; 1.25mm; SMT; PicoBlade; 1A; tinned

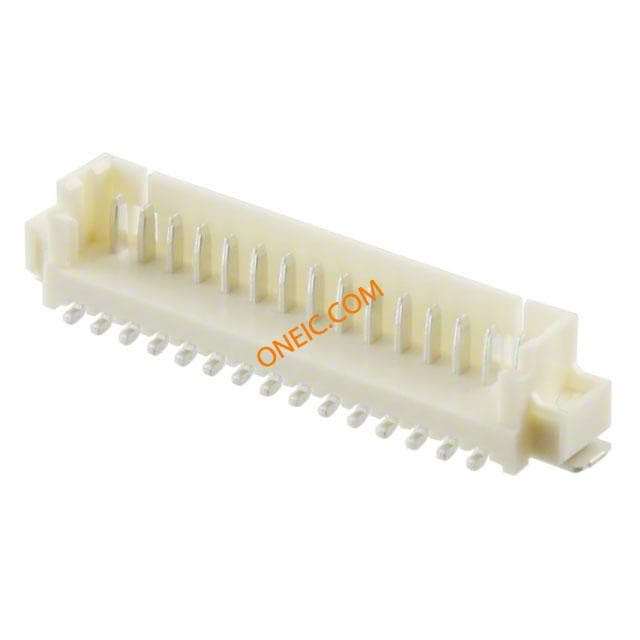

0533981571
