0502128000
| Manufacturer | |
| Description | Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 24-30AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Reel Contact; female; 24÷30AWG; DuraClik, Mi II, Sherlock; crimped; 2A |
| Category |
Business
| Lead Time | 20 Days | Subcategory | Connector Contact |
| Standard Package | Tape & Reel | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 20 mohm | Current Rating (Max) | 2 A |
| Voltage - Supply (Min) | 125VAC | Connector - Voltage Input | Crimp |
Mechanical
| Depth | 1.88 mm | Pitch | Not Required mm |
| Height | 2 mm | Weight | 0.12 g |
| Packaging | Reel | Wire Gauge | 24-30 AWG |
| Shield Type | No | Termination | Crimp |
| Contact Type | Signal | Housing Color | Not Required |
| Mounting Type | Cable Mount | Pin or Socket | Socket |
| Connector Type | Connector Headers and PCB Receptacles | Contact Finish | Tin |
| Mounting Style | Cable | Contact Material | Phosphor Bronze |
| Housing Material | Not Required | Length - Overall | 4.7 mm |
| Package Quantity | 40000 | Connector - Cable | contact |
| Number of Contacts | Not Required | Contact Termination | Crimp |
Product Info
| Spg | 40000 | Type | Contact |
| Gender | SKT | Series | Mi II™ 50212, Micro-Latch™, Sherlock™ |
| Adapter Series | DuraClik, Mi II, Sherlock | Number of Units | 10000 |
| Industry Aliases | 50212-8000, 502128000 | Tool Type Feature | MX-63819-0500 |
| For Use With/Related Products | 0502128100 | ||
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts
0355071900
molex
Conn Housing F 19 POS 2mm Crimp ST Bag NEW 2.0 W/B CONN.HOUSING

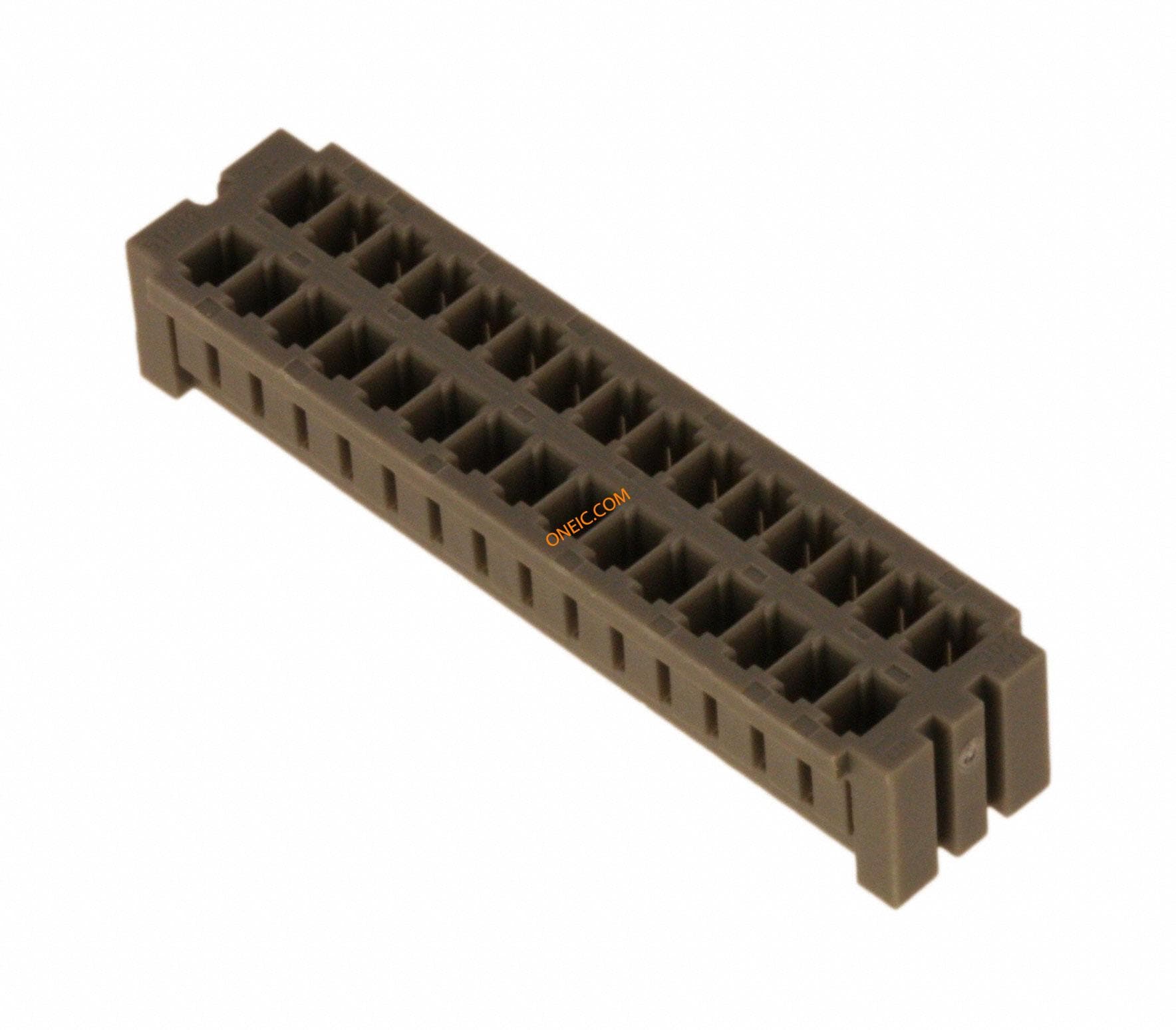

0510893005
molex
Conn Housing RCP 30 POS 2mm Crimp ST Bag CONN HOUSING CRIMP 30POS 2MM
0011030043
molex
Connector Accessories Extraction Tool Extraction Tool Handtool Type TOOL HAND EXTRACT MICROFIT 3.0

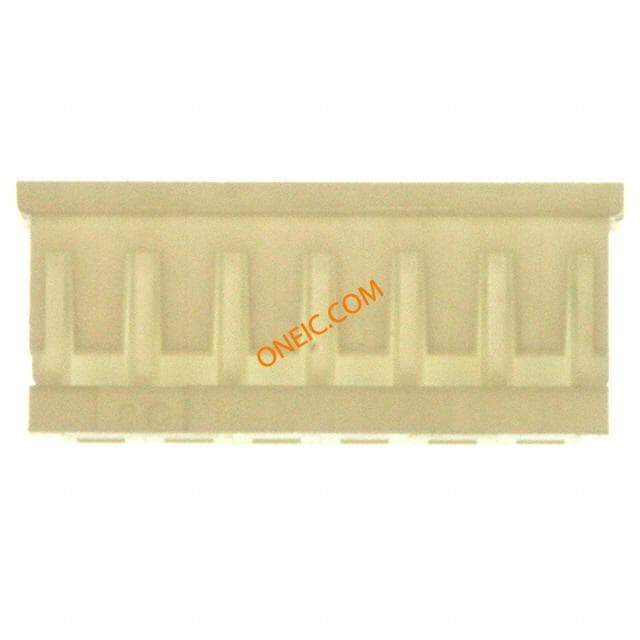

0510650600
molex
Conn Housing RCP 6 POS 2mm Crimp ST Bag CONN RCPT HOUSING 6POS 2MM NATL

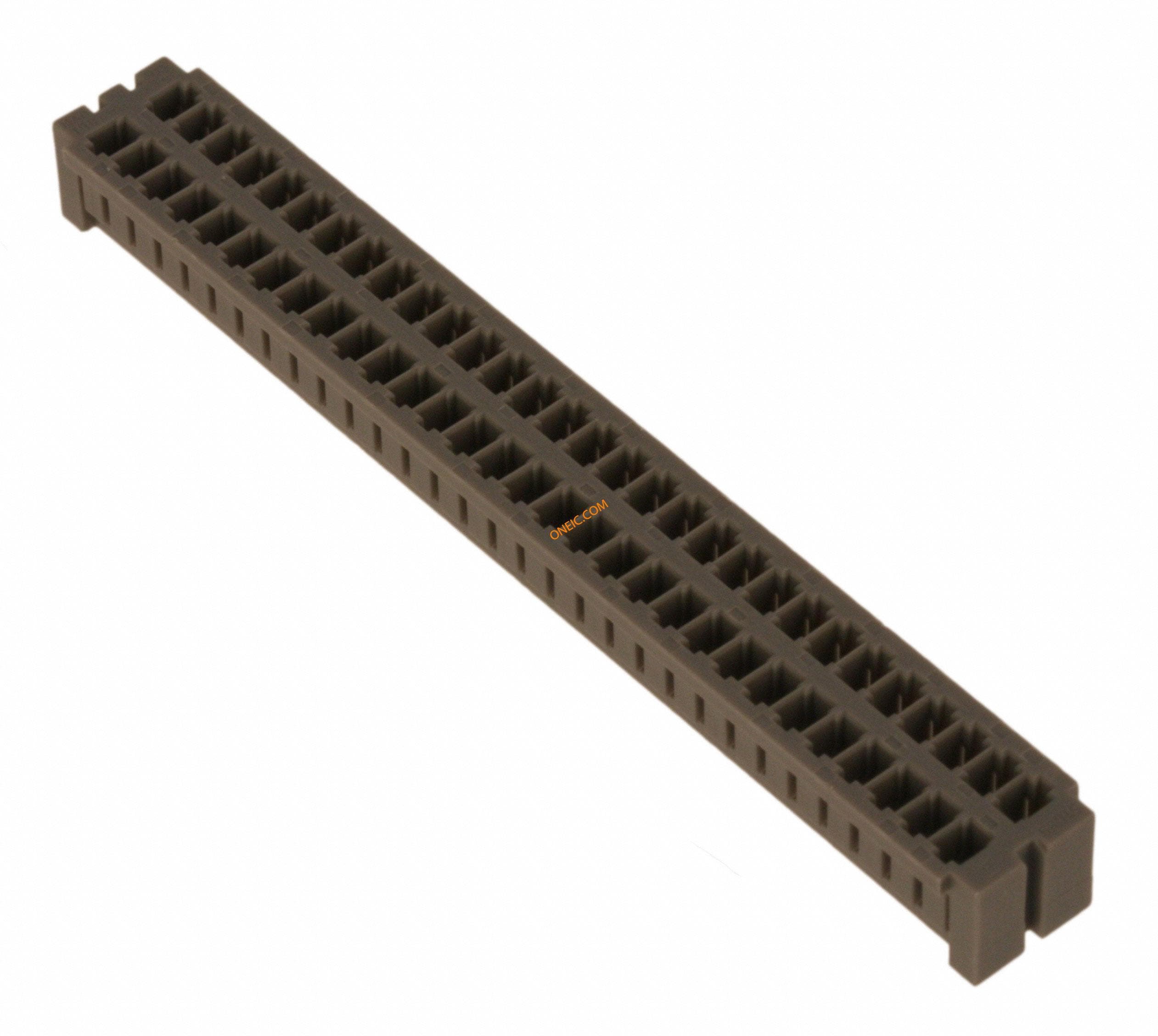

0510896005
molex
Conn Housing RCP 60 POS 2mm Crimp ST Bag CONN HOUSING CRIMP 60POS 2MM
51065-0300
molex
Conn Housing RCP 3 POS 2mm Crimp ST Bag CONN RCPT HOUSING 3POS 2MM NATL Housing,rcp,MicroLatch,2.0mm,f/lock,3way Headers & Wire Housings 2MM W-T-B HSG 3P friction lock WIRE-BOARD CONN, RECEPTACLE, 3POS, 2MM 2.0 W TO B REC HSG Molex MICRO-LATCH 系列 2mm 节距 3 路 直 母 压接连接器外壳
51089-1205
molex
Conn Housing RCP 12 POS 2mm Crimp ST Bag CONN HOUSING CRIMP 12POS 2MM
57105-6000
molex
EXTRACTOR FOR 50212 571056000 Hand Tools EXTRACTION TOOL TOOL HAND EXTRACTION
0639105200
Molex
T2 Terminator Die T2 TERMINATOR ASSEMBLY

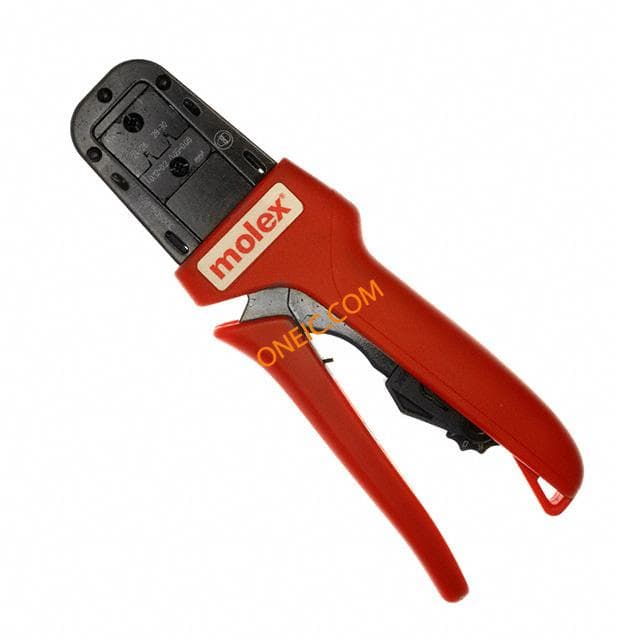

0638190500
Molex
Hand Crimp Tool For 2.00mm Pitch Terminal, 24-30 AWG TOOL HAND CRIMP 24-30AWG Tool: for crimping; terminals; 24÷30AWG
0355070502
Molex
Conn Housing F 5 POS 2mm Crimp ST Bag CONN RCPT HOUSING 5POS 2MM
0510900604
Molex
2.0 W TO B REC HSG
0510900804
Molex
2.0 W TO B REC HSG
5023510200
Molex
Conn Housing PL 2 POS 2mm Crimp ST Cable Mount Bag CONN 2.0 W/B REC HSG 2CKT 2.0W/BRecHsg2Ckt Connector: wire-board; DuraClik; plug; w/o terminals; PIN:2; 2mm
0355070802
Molex, LLC
. 0355070802 - 8 Position Rectangular Housing Connector Receptacle Red 0.079" (2.00mm) from Molex. from now!
0639005200
Molex
Fine Adjust 1.25mm Pitch Crim Terminal, 28-32 AWG TOOL APPLICATOR 24-30AWG CRIMP

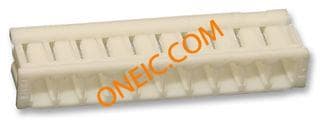

51065-1000
Molex Connector Corporation
CONN HOUSING 10POS 2MM Headers & Wire Housings 2MM W-T-B HSG 10P friction lock Conn Housing RCP 10 POS 2mm Crimp ST Bag

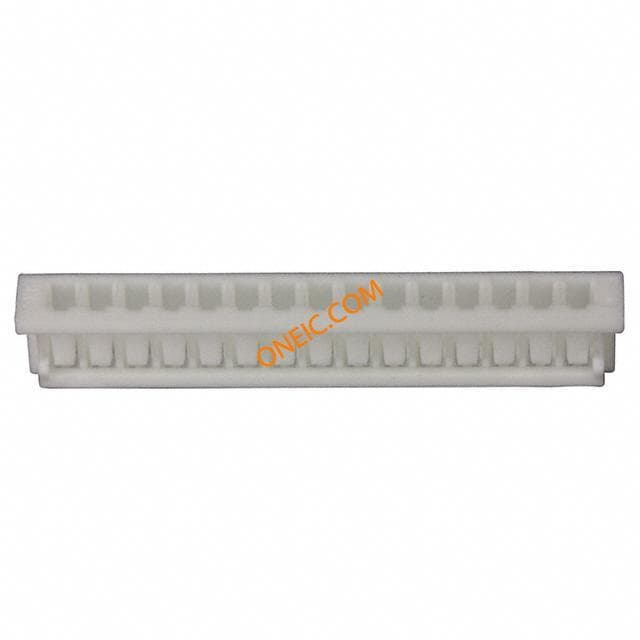

51090-1500
