0472720021
| Manufacturer | |
| Description | Conn Display Port M 20 POS 0.5mm Solder RA SMD 20 Terminal 1 Port Embossed T/R 1.0 DISPLAY PORT HEADER ASSY |
Business
| Standard Package | 1,250 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 0.5/Contact | Voltage - Input (Min) | 40VAC |
Mechanical
| Depth | 14.39 | Pitch | 0.5 |
| Height | 6.65 | Packaging | Embossed Tape and Reel |
| Termination | Solder | Mounting Type | Surface Mount |
| Connector Type | DisplayPort | Contact Finish | Gold Over Nickel |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Length - Overall | 17.79 | Number of Contacts | 20 |
Product Info
| Type | Display Port | Gender | M |
| Features | Board Guide | Number of Ports | 1 |
Environmental
| Operating Temperature | 85 | ||
Similar Parts
68783-0001
molex
Cable Assembly Round 3m 30AWG 20 POS Display Port to 20 POS Display Port M-M Bag Cable Assemblies CABLE ASSEMBLY 3M WITH LATCH CABLE ASSY DISPLAYPORT W/LATCH Audio Cables / Video Cables / RCA Cables CABLE ASSEMBLY 3M WITH LATCH
68783-0008
Molex
Cable Assemblies CABLE ASSEMBLY 2M WITHOUT LATCH CABLE ASSY DISPLAYPORT W/O LATCH Audio Cables / Video Cables / RCA Cables CABLE ASSEMBLY 2M WITHOUT LATCH Cable Assembly PVC 2m 30AWG 20 POS Display Port to 20 POS Display Port M-M Bag

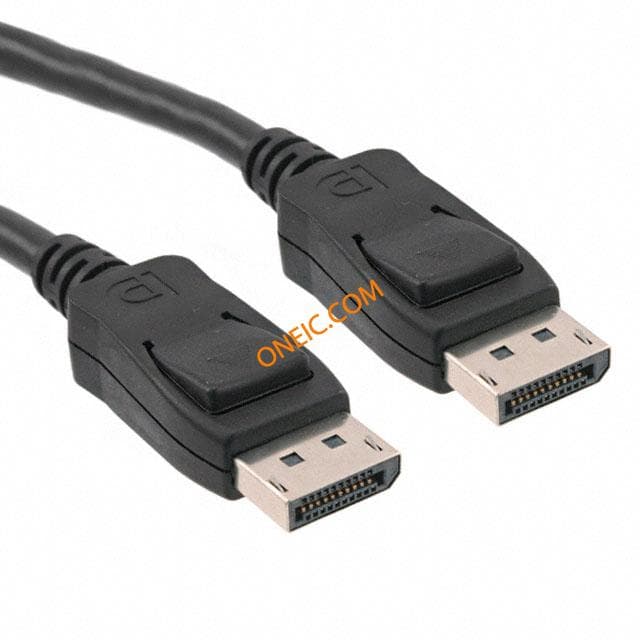

0687830007
Molex
Cable Assembly Round 2m 30AWG 20 POS Display Port to 20 POS Display Port M-M Bag CABLE ASSY DISPLAYPORT W/LATCH

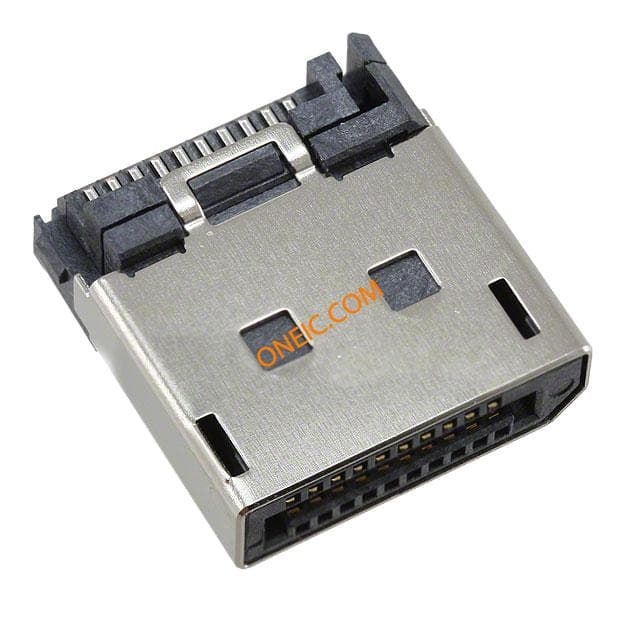

0472710011
