0444411005
| Manufacturer | |
| Description | Conn Housing RCP 5 POS 7.49mm Crimp ST Bag CONN RCPT SR V-2 5POS |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 18A | Voltage - Input (Min) | 600V |
Mechanical
| Color | Natural | Depth | 27.38 |
| Pitch | 7.49 mm | Height | 15.24 |
| Packaging | Bag | Contact Type | Female Blade Socket |
| Housing Color | Natural | Mounting Type | Straight |
| Connector Type | Receptacle | Fastening Type | Latch Lock |
| Number of Rows | 1 | Housing Material | Nylon |
| Length - Overall | 38.3 | Number of Contacts | 5 |
| Stacking Direction | Side to Side | Contact Termination | Crimp |
| Number of Positions | 5 | Material - Insulation | Polyamide (PA), Nylon |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | ||
Environmental
| Operating Temperature | -40°C ~ 75°C | ||
Documents & Media
Similar Parts
0431604105
Molex, LLC
. 0431604105 - 5 Position Header, Male Blades Connector Solder 0.295" (7.50mm) Through Hole from Molex. from now!
0431600305
molex
Conn Wire to Board HDR 5 POS 7.49mm Solder ST Thru-Hole Tray Conn Power HDR 5 POS 7.49mm Solder ST Thru-Hole 10 Terminal 1 Port Tray CONN HEADER 5POS TIN SOLDER
0431604305
molex
Conn Wire to Board HDR 5 POS 7.49mm Solder ST Thru-Hole Tray Conn Power HDR 5 POS 7.49mm Solder ST Thru-Hole 10 Terminal 1 Port Tray CONN HEADER 5POS TIN SOLDER
0431600105
molex
Conn Wire to Board HDR 5 POS 7.49mm Solder ST Thru-Hole Tray Conn Power HDR 5 POS 7.49mm Solder ST Thru-Hole 10 Terminal 1 Port Tray CONN HEADER 5POS TIN SOLDER CONN HDR 5POS 7.50MM PCB SLDR
0431605305
molex
Conn Wire to Board HDR 5 POS 7.49mm Solder RA Thru-Hole Tray Conn Power HDR 5 POS 7.49mm Solder RA Thru-Hole 10 Terminal 1 Port Tray CONN HEADER R/A 5POS TIN SOLDER
0431607305
molex
Conn Wire to Board HDR 5 POS 7.49mm Solder RA Thru-Hole Tray Conn Power HDR 5 POS 7.49mm Solder RA Thru-Hole 10 Terminal 1 Port Tray CONN HEADER R/A 5POS TIN SOLDER
0431606305
molex
Conn Wire to Board HDR 5 POS 7.49mm Solder ST Thru-Hole Tray Conn Power HDR 5 POS 7.49mm Solder ST Thru-Hole 10 Terminal 1 Port Tray CONN HEADER 5POS TIN SOLDER
0431601305
molex
Conn Wire to Board HDR 5 POS 7.49mm Solder RA Thru-Hole Tray Conn Power HDR 5 POS 7.49mm Solder RA Thru-Hole 10 Terminal 1 Port Tray CONN HEADER R/A 5POS TIN SOLDER
0436801005
Molex, LLC
. 0436801005 - 5 Position Blade Type Power Housing Connector Plug Natural 0.295" (7.50mm) from Molex. from now!
0431602105
Molex
Conn Power HDR 5 POS 7.49mm Solder ST Thru-Hole 10 Terminal 1 Port Tray CONN HEADER 5POS TIN SOLDER CONN HDR 5POS 7.50MM PCB SLDR Connector: wire-board; SABRE; socket; male; PIN:5; tinned; 18A; 600V
0431605105
Molex
Conn Power HDR 5 POS 7.49mm Solder RA Thru-Hole 10 Terminal 1 Port Tray CONN HEADER R/A 5POS TIN SOLDER
43680-2005
Molex Connector Corporation
CONN PLUG 5POS 7.5MM CONN HOUSING 5POS 7.50MM BLACK Sabre cable plug 7.5mm 5W Headers & Wire Housings PLUG SINGLE ROW 5P 7.50mm Pitch Sabre™ Plug Crimp Housing, UL 94V-0, 5 Circuits, Glow Wire Compatible Molex SABRE 系列 7.49mm 节距 5 路 直 公 压接连接器外壳

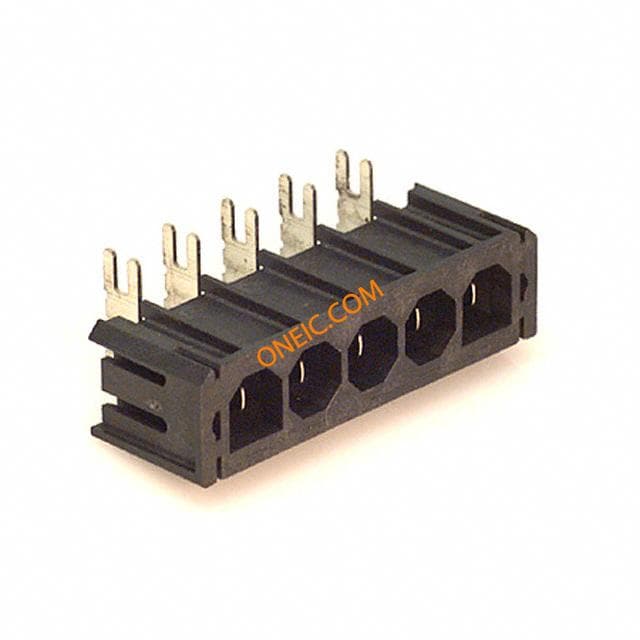

43160-1105
Molex Connector Corporation
CONN HEADER R/A 5POS TIN SOLDER Headers & Wire Housings R.A. HDR SMC 5P without board lock Conn Power HDR 5 POS 7.49mm Solder RA Thru-Hole 10 Terminal 1 Port Tray

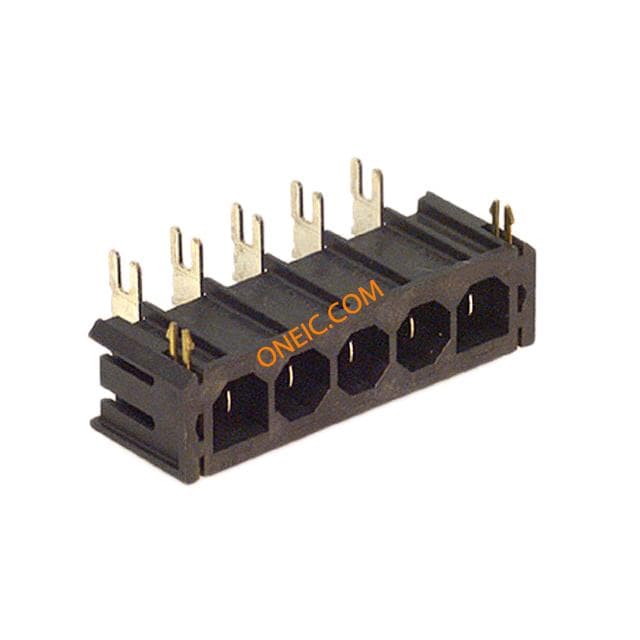

43160-3105
