0444321402
| Manufacturer | |
| Description | Conn Wire to Board HDR 14 POS 3mm Solder ST Thru-Hole Tray CONN HEADER 14POS 3MM VERT GOLD |
| Category |
Business
| Standard Package | Trays | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 100 mohm | Current Rating (Max) | 5/Contact A |
| Voltage - Input (Min) | 250VAC | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | Black | Depth | 11.9 mm |
| Pitch | 3 mm | Height | 11.6 mm |
| Packaging | Tray | Row Spacing | 0.118" (3.00mm) |
| Termination | Solder | Contact Type | Male Pin |
| Housing Color | Black | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Gold Over Nickel |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Contact Material | Brass | Housing Material | Thermoplastic |
| Length - Overall | 28 mm | Number of Contacts | 14 |
| Number of Positions | 14 | Contact Finish Thickness | 15µin (0.38µm) |
Product Info
| Type | Wire to Board | Gender | HDR |
| Features | Board Guide | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts
0447691403
molex
Conn Wire to Board RCP 14 POS 3mm Solder ST Thru-Hole Tray MICRO-FIT BMI VT HDR F DR 30AU

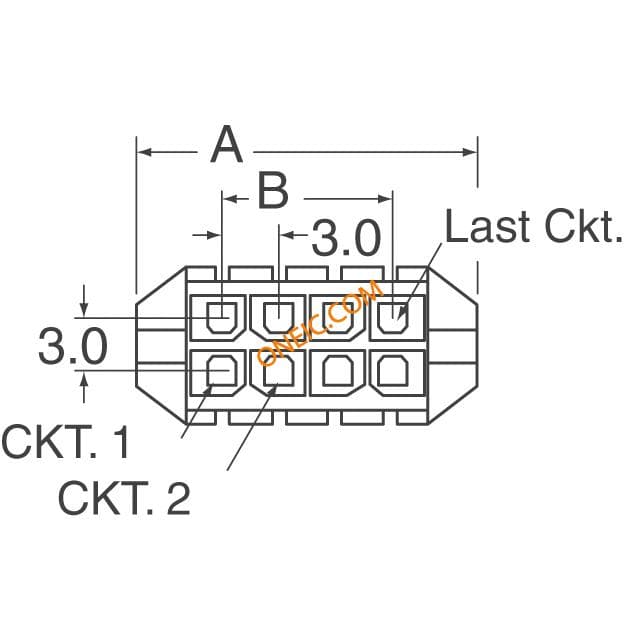

44769-1401
molex
Conn Wire to Board RCP 14 POS 3mm Solder ST Thru-Hole Tray CONN HDR RCPT 14POS VERT TIN PCB Headers & Wire Housings VERT RECPT 14P tin w/friction pegs
0441331400
Molex, LLC
. 0441331400 - 14 Position Rectangular Housing Connector Receptacle Black 0.118" (3.00mm) from Molex. from now!
0447641403
Molex, LLC
. 0447641403 - 14 Position Receptacle Connector 0.118" (3.00mm) Through Hole, Right Angle Gold from Molex. from now!

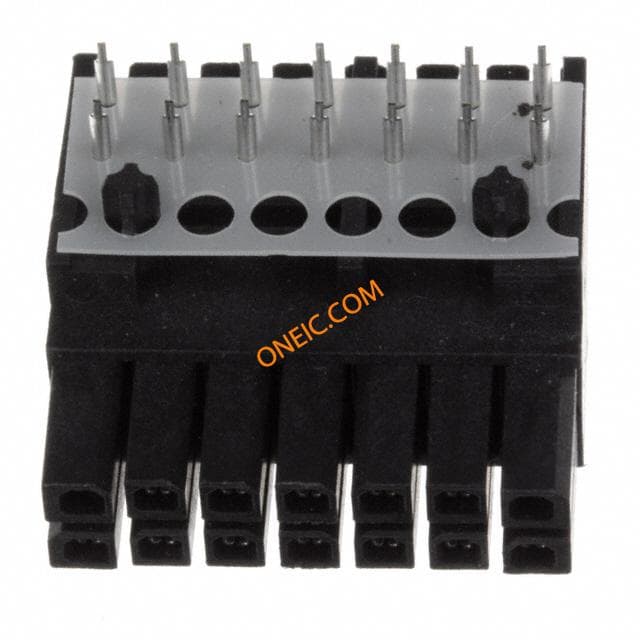

44764-1401
Molex Connector Corporation
CONN HEADER 14POS 3MM R/A TIN Headers & Wire Housings R.A. RECPT 14P tin w/friction pegs Conn Wire to Board RCP 14 POS 3mm Solder RA Thru-Hole Tray

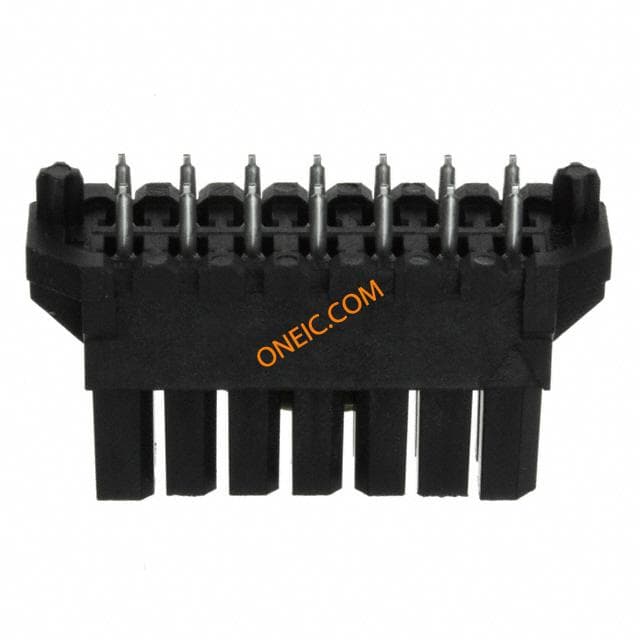

44769-1402
Molex Connector Corporation
CONN HDR RCPT 14POS 3MM VERT PCB Headers & Wire Housings VERT RECPT 14P gold w/friction pegs Conn Wire to Board RCP 14 POS 3mm Solder ST Thru-Hole Tray

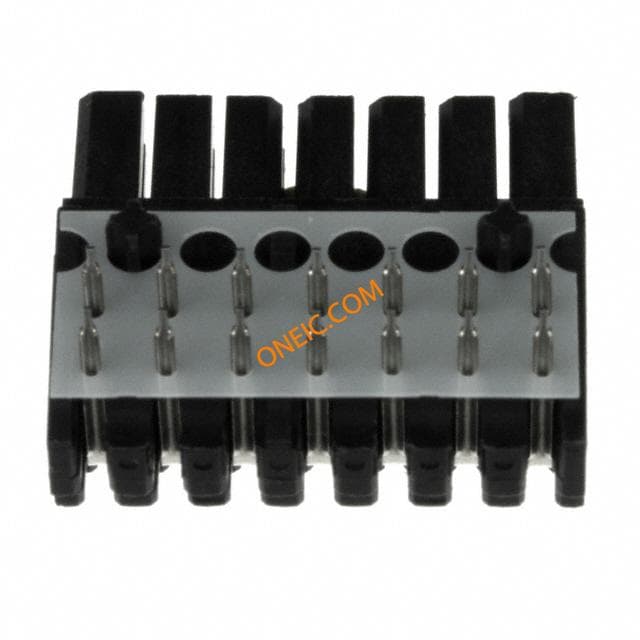

44764-1402
