0442810001
| Manufacturer | |
| Description | Conn Wire to Board PL 4 POS 4.2mm Solder ST Thru-Hole Bag Conn Power PL 4 POS 4.2mm Solder ST Thru-Hole 4 Terminal 1 Port Bag MINIFIT CONTINUITY TST PLG DR |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Voltage Rating | 600V | Current Rating (Max) | 2.5/Contact |
Mechanical
| Color | Black | Pitch | 4.2 mm |
| End Style | Solder | Packaging | Bag |
| Wire Type | Discrete | Orientation | Straight |
| Row Spacing | 0.165" (4.20mm) | Termination | Solder |
| Contact Type | Piston | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug | Contact Finish | Gold |
| Fastening Type | Locking Ramp | Number of Rows | 2 |
| Contact Material | Beryllium Copper | Cable Termination | Solder |
| Number of Contacts | 4 | Number of Positions | 4 |
| Material - Insulation | Nylon 4/6 | ||
Product Info
| Type | Wire to Board | Gender | PL |
| Number of Ports | 1 | Other Specifications | 4.2 |
| Assembly Configuration | Through Hole | ||
Environmental
| Operating Temperature | 105 | ||
Documents & Media
Similar Parts
0039012045
molex
Conn Housing RCP 4 POS 4.2mm Crimp ST Bag Conn Housing F 4 POS 4.2mm Crimp ST Cable Mount Bag CONN RECEPT 4POS DUAL

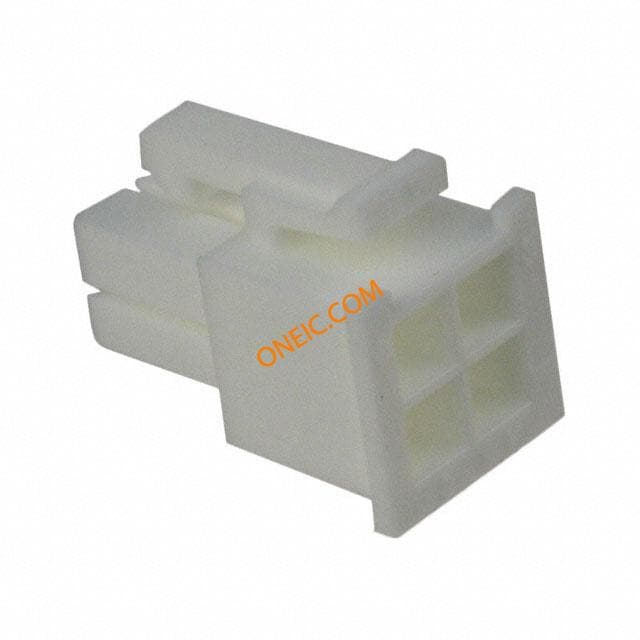

0039013048
molex
Conn Housing F 4 POS 4.2mm Crimp ST Cable Mount Bag MINIFIT JR RCPT DR 4CKT
0039013042
molex
Conn Housing F 4 POS 4.2mm Crimp ST Cable Mount Bag CONN RECEPT 4POS VERT DUAL
0039012040
molex
Conn Housing RCP 4 POS 4.2mm Crimp ST Bag CONN RECEPT 4POS DUAL
0015060042
Molex
Conn Housing RCP 4 POS 4.2mm Crimp ST Bag CONN RCPT MINI FIT JR 4POS NAT
15-06-0040
Molex Connector Corporation
CONN RECEPT 4POS W/PANEL MOUNT Housing 4.2mm BMI recept,D/R,UL94V-2,4w Headers & Wire Housings RECPT DUAL ROW 4POS w/panel mount ears Conn Housing RCP 4 POS 4.2mm ST Bag Conn Housing RCP 4 POS 4.2mm Crimp ST Panel Mount Bag MINIFIT BMI RCPT/PANMNT V-2 Molex MINI-FIT BMI 系列 2 行 4.2mm 节距 4 路 直 母 面板安装 压接连接器外壳

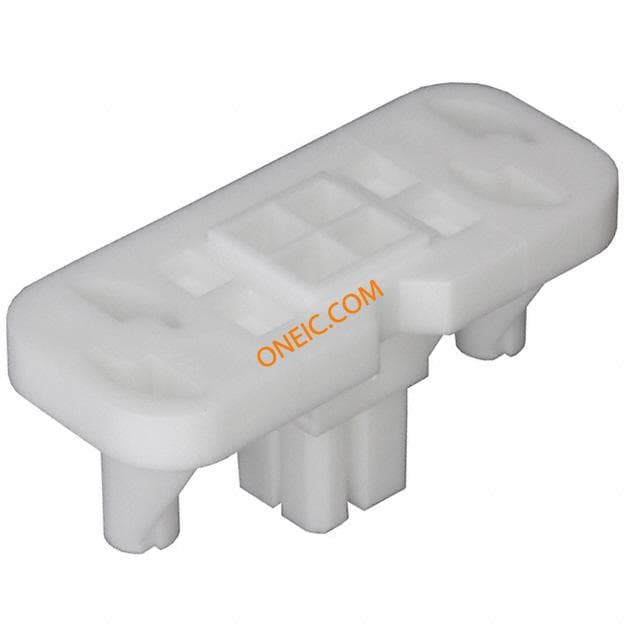

15-06-0041
