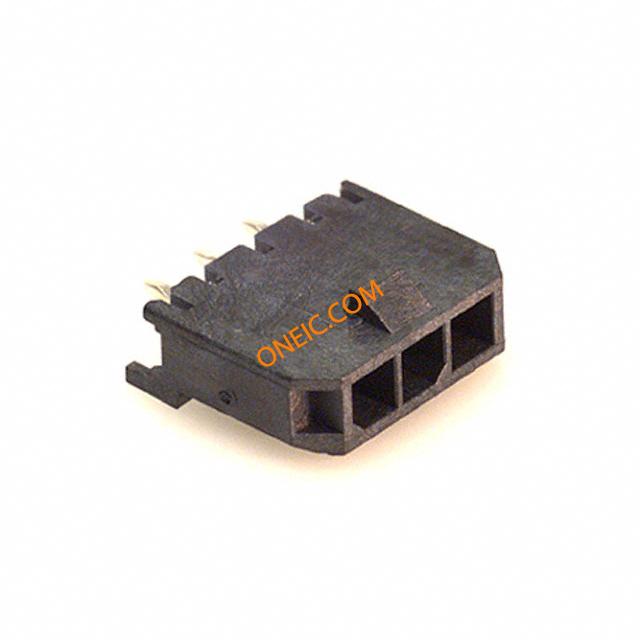

0436500315
| Manufacturer | |
| Description | Conn Power HDR 3 POS 3mm Solder ST Thru-Hole 3 Terminal 1 Port Tray CONN HEADER 3POS 3MM VERT TIN |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 30 mohm | Current Rating (Max) | 5/Contact A |
| Voltage - Input (Min) | 250VDC|250VAC | Voltage - Supply (Min) | 250VDC/250VAC |
Mechanical
| Color | Black | Depth | 5.57 mm |
| Pitch | 0.118" (3.00mm) | Height | 9.9 mm |
| Packaging | Tray | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Tin Over Nickel | Fastening Type | Locking Ramp |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | Brass Alloy | Housing Material | Liquid Crystal Polymer |
| Length - Overall | 12.65 mm | Number of Contacts | 3 |
| Number of Positions | 3 | Contact Finish Thickness | 100µin (2.54µm) |
Product Info
| Type | Power | Gender | HDR |
| Features | Board Guide | Number of Ports | 1 |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -40C to 105C | Operating Temperature - Junction | 105C |
Documents & Media
PDF Document
