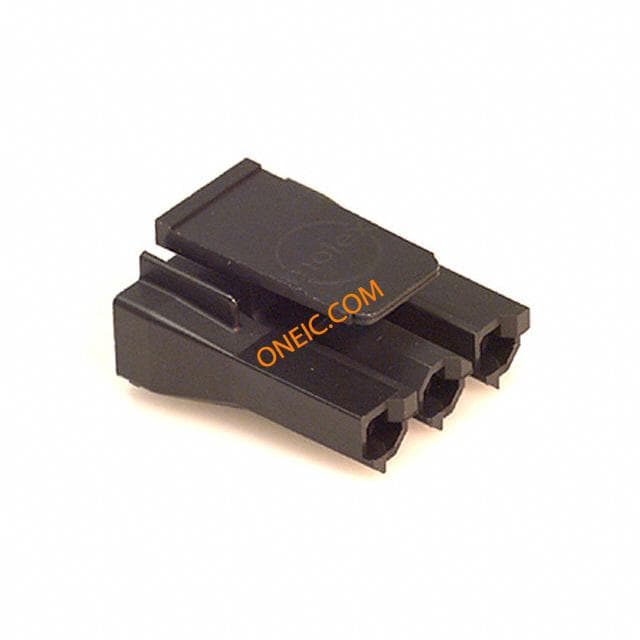

点击放大查看
0431602103
| Manufacturer | |
| Description | Conn Power HDR 3 POS 7.49mm Solder ST Thru-Hole 6 Terminal 1 Port Tray CONN HEADER 3POS TIN SOLDER CONN HDR 3POS 7.50MM PCB SLDR Connector: wire-board; SABRE; socket; male; PIN:3; tinned; 18A; 600V |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 36 Days | Subcategory | Connector Power |
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Voltage Rating | 600V | Voltage - Rated | 600V |
| Current Rating (Max) | 18A | Voltage - Input (Min) | 600V |
Mechanical
| Color | Black | Depth | 13.38 |
| Pitch | 0.295" (7.50mm) | Height | 14.76 |
| Weight | 6.23 g | Packaging | Tray |
| Orientation | straight | Termination | Solder |
| Pitch - Post | 7.5mm | Mounting Type | Through Hole |
| Connector Type | Header, Male Blades | Contact Finish | Tin Over Copper |
| Fastening Type | Locking Ramp | Mounting Style | PCB snap |
| Number of Rows | 1 | Contact Material | Brass |
| Housing Material | Nylon 46 | Length - Overall | 28.58 |
| Package Quantity | 6 | Connector - Cable | socket |
| Number of Contacts | 3 | Number of Positions | 3 |
| Material - Insulation | Polyamide (PA), Nylon 4/6, Glass Filled | Contact Finish Thickness | 60µin (1.52µm) |
| Contact Material - Plating | tinned | ||
Product Info
| Spg | 6 | Type | Power |
| Gender | HDR | Features | Board Lock |
| Adapter Series | SABRE | Number of Ports | 1 |
| Number of Units | 1 | Industry Aliases | 43160-2103, 431602103 |
Environmental
| Operating Temperature | -40°C ~ 75°C | ||
