0430200201
| Manufacturer | |
| Description | Conn Housing PL 2 POS Crimp ST Cable Mount Bag CONN PLUG 2POS 3MM VERT DUAL Conn Housing PL 2 POS 3mm Crimp ST Cable Mount Bag |
| Category |
Business
| Lead Time | 20 Days | Subcategory | Connector Discrete Wire Housing |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 5/Contact A | Voltage - Input (Min) | 350VDC|350VAC |
| Voltage - Supply (Min) | 350VDC/350VAC | ||
Mechanical
| Color | Black | Depth | 16.89 mm |
| Pitch | 0.118" (3.00mm) | Height | 9.65 mm |
| Packaging | Bag | Row Spacing | 0.118" (3.00mm) |
| Contact Type | Male Pin | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Plug |
| Fastening Type | Locking Ramp | Number of Rows | 2 |
| Housing Material | Polybutylene Terephthalate | Number of Contacts | 2 |
| Contact Termination | Crimp | Number of Positions | 2 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | DELETED | Compliant |
| Industry Aliases | 43020-0201, 430200201 | ||
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts
0430250200
molex
Conn Housing RCP 2 POS Crimp ST Bag CONN RECEPT 2POS 3MM VERT DUAL Plug; wire-board; female; 3mm; PIN:2; w/o terminals; 5A; UL94V-0
0430310012
molex
Contact M Crimp ST Cable Mount Bag Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 26-30AWG GOLD

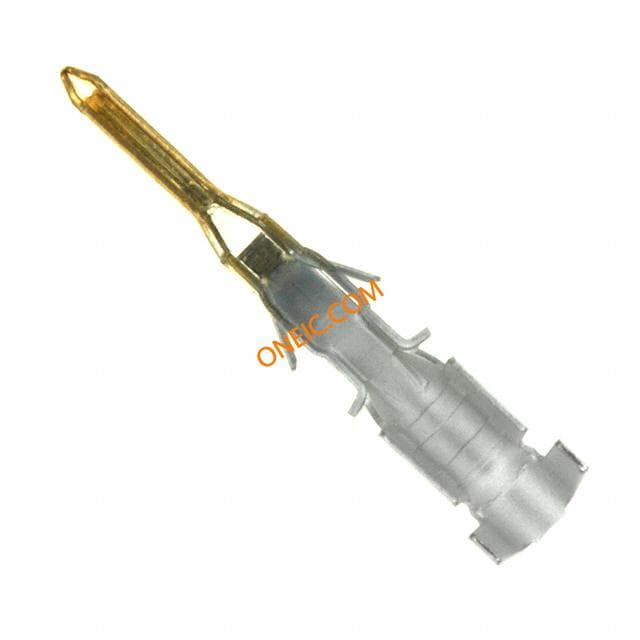

0430310002
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 20-24AWG GOLD Conn Contact M 1 POS Crimp ST Cable Mount Reel Contact; male; 0.205÷0.519mm2; 20÷24AWG; Micro-Fit 3.0; crimped
0430310007
molex
Contact M Crimp ST Cable Mount Bag Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 20-24AWG TIN Contact; male; 0.205÷0.519mm2; 20÷24AWG; Micro-Fit 3.0; tinned

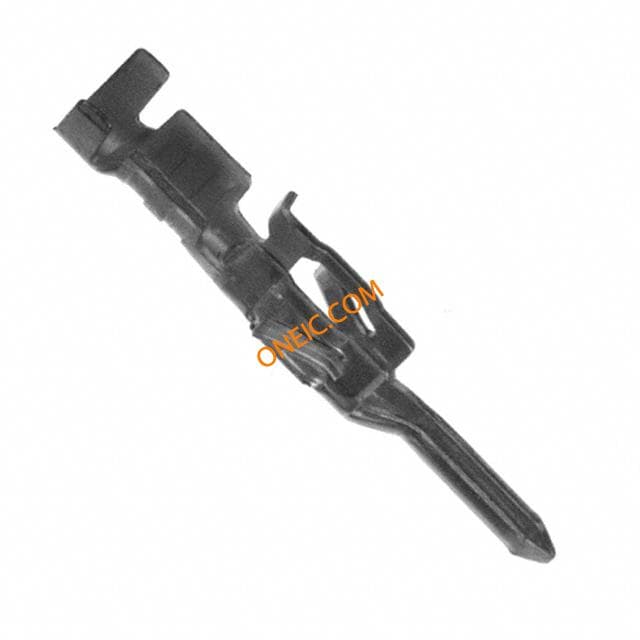

0430310011
Molex, LLC
. 0430310011 - Pin Contact Gold 26-30 AWG Crimp Power from Molex. from now!

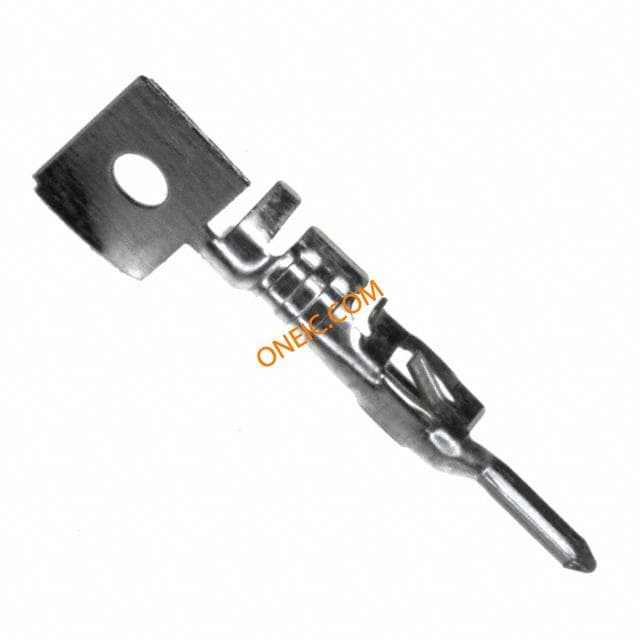

0430310001
Molex, LLC
. 0430310001 - Pin Contact Tin 20-24 AWG Crimp Power from Molex. from now!

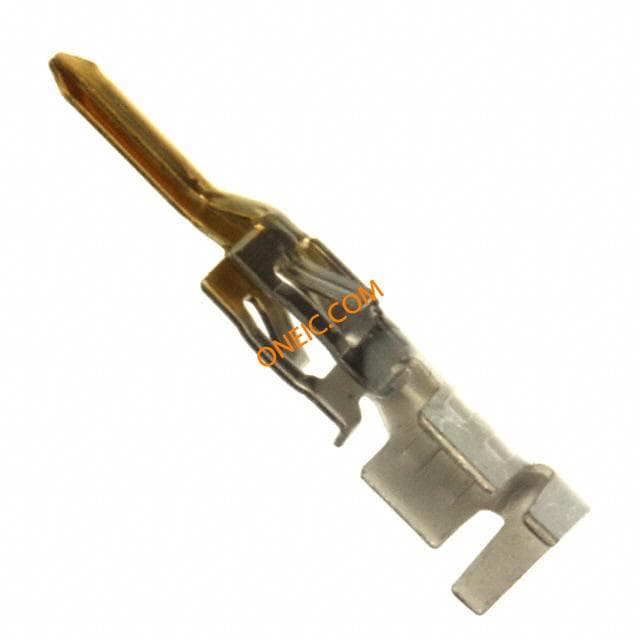

0430310008
Molex, LLC
. 0430310008 - Pin Contact Gold 20-24 AWG Crimp Power from Molex. from now!
0430310009
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 20-24AWG GOLD Conn Contact M 1 POS Crimp ST Cable Mount Bag
0430310003
Molex, LLC
. 0430310003 - Pin Contact Gold 20-24 AWG Crimp Power from Molex. from now!
0430310010
Molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 26-30AWG TIN
0430310004
Molex, LLC
. 0430310004 - Pin Contact Tin 26-30 AWG Crimp Power from Molex. from now!

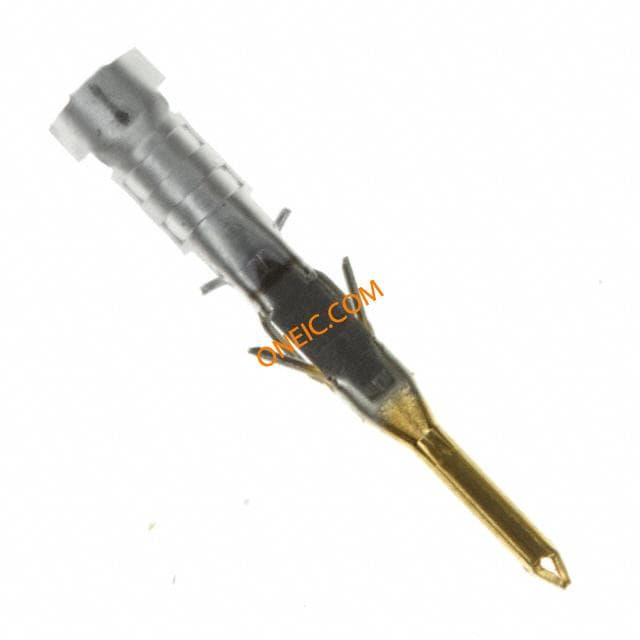

0430310006
Molex Inc
CONN PINS 26-30AWG 30GOLD CRIMP
