0416710034
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 12 POS 3.96mm Solder ST Thru-Hole Bag CONN BKWY HEADER 12POS STR GOLD |
| Category |
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 10 | Current Rating (Max) | 7/Contact |
| Voltage - Input (Min) | 250V | ||
Mechanical
| Color | Black | Depth | 9.02 |
| Pitch | 0.156" (3.96mm) | Height | 14.68 |
| Packaging | Bag | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Header, Unshrouded, Breakaway |
| Contact Finish | Gold Over Nickel | Fastening Type | Friction Lock |
| Number of Rows | 1 | Contact Material | Brass |
| Housing Material | Polyester | Length - Overall | 47.5 |
| Number of Contacts | 12 | Number of Positions | 12 |
| Contact Length - Mating | 0.450" (11.43mm) | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Number of Positions Loaded | All | ||
Similar Parts
0009482123
molex
Conn Socket Strip RCP 12 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 12POS TIN PCB
0009485124
molex
Conn Socket Strip RCP 12 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 12POS GOLD PCB
0009485125
molex
Conn Socket Strip RCP 12 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 12POS GOLD PCB
0009626124
molex
Conn Socket Strip RCP 12 POS 3.96mm Solder ST Thru-Hole Bag Conn Socket Strip RCP 12 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT BOTTOM 12POS TIN
0009521123
molex
Conn Socket Strip RCP 12 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 12POS TIN PCB
0009523128
molex
Conn Socket Strip RCP 12 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 12POS TIN PCB
0009484121
Molex, LLC
. 0009484121 - 12 Position Receptacle, Bottom Entry Connector 0.156" (3.96mm) Through Hole Tin from Molex. from now!
0009482129
molex
Conn Socket Strip RCP 12 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT BOTTOM 12POS TIN PCB
0009521120
Molex
Conn Socket Strip RCP 12 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 12POS TIN PCB

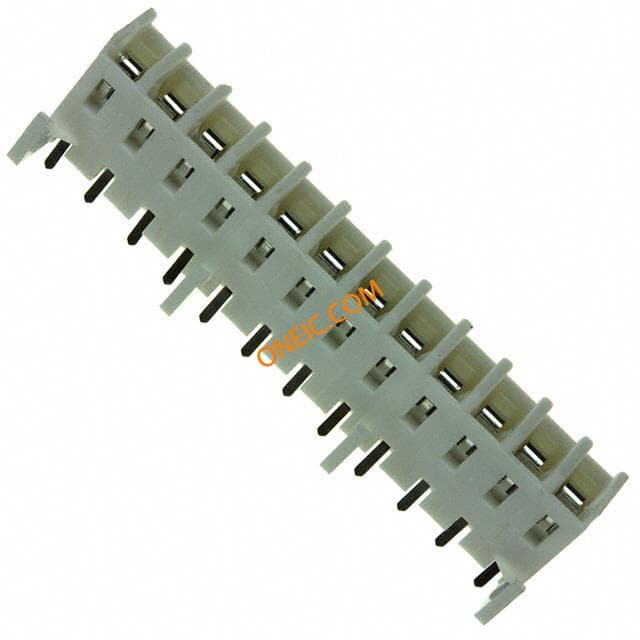

0009484129
