0353620250
| Manufacturer | |
| Description | Conn Shrouded Header HDR 2 POS 2mm Solder ST Thru-Hole Tube Conn Shrouded Header HDR 2 POS 2mm Solder ST Thru-Hole Bag CONN HEADER 2POS 2MM VERT TIN |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 20 mohm | Current Rating (Max) | 2/Contact A |
| Voltage - Input (Min) | 125VDC|125VAC | Voltage - Supply (Min) | 125VDC/125VAC |
Mechanical
| Color | Natural | Depth | 5.5 mm |
| Pitch | 2 mm | Height | 8.5 mm |
| Packaging | Bag | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Natural |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Tin | Fastening Type | Locking Ramp |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | Brass | Housing Material | Polyamide |
| Length - Overall | 7.7 mm | Number of Contacts | 2 |
| Number of Positions | 2 | Contact Length - Mating | 0.145" (3.70mm) |
| Contact Finish Thickness | 78.7µin (2.00µm) | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| DELETED | Compliant | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts

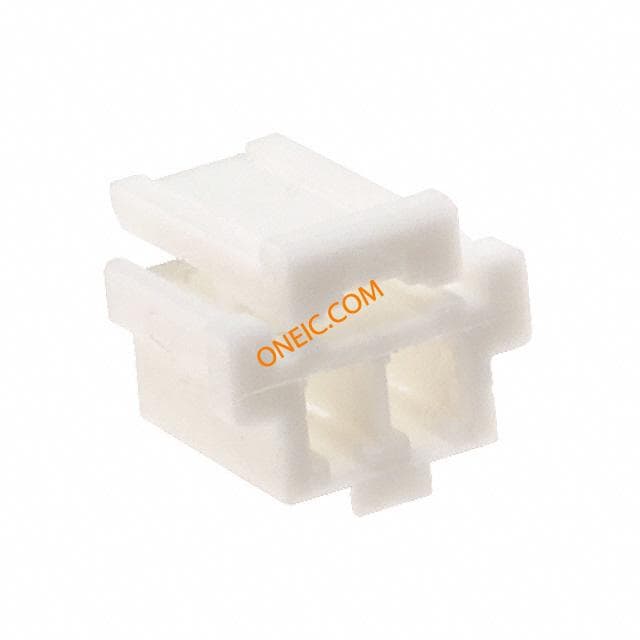

0355070200
