03-06-1091
| Manufacturer | |
| Description | Pin & Socket Connectors 9 CIRCUIT RECEPTACLE Conn Housing RCP 9 POS 3.68mm Crimp ST Cable Mount Bag RECEPTACLE, 9WAY SEE 863-1417 50-36-1871 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | Tariff No | 85369010 |
| Approval Agency | :CSA, UL | Approval Agency Marking | CSA, UL, TUV |
| Material Flammability Rating | :UL94V-2 | ||
Electrical
| Voltage Rating | :250V | Voltage - Working | :250V |
| Current Rating (Max) | :5A | ||
Mechanical
| Color | Natural | Pitch | :3.68mm |
| Weight | 0.00252 | Material | :PA Polyamide (Nylon 66) |
| Termination | Crimp | Release Force | :4.45N |
| Angle of Throw | Straight | Number of Rows | :3 |
| Insertion Force | :6.22N | Panel Thickness | :1.52mm |
| Housing Material | Nylon 6/6 | Length - Overall | 0.78 " |
| Color - Connectors | :Natural | Number of Contacts | 9 |
| Number of Positions | :9 | Mounting Hole Diameter | 0.65×0.552 " |
Product Info
| Type | Panel Socket | Gender | :Receptacle |
| Series | :MicroFit | Manufacturer | 1625 Series |
| For Use With/Related Products | :Plug & Receptacle Contacts | ||
Environmental
| Operating Temperature | :+105°C | ||
Documents & Media
PDF Document
Similar Parts
76650-0012
molex
Panel Mount Plug And Receptacle kit, With Extraction And Preimum Crimp Tool KIT CONN STD .062" SERIES Pin & Socket Connectors .062 CONNECTOR KIT PREM CRIMPTOOL 288PC Kit Description:Panel Mount Plug and Receptacle, with Extraction and Preimum Crimp ToolKit Category:Wire to WireSolution:PowerPackaging:Clamshell: 12.75" by 6"Num. Pieces:288 .062IN PWR CONNECTOR KIT PANEL MNT PLUG& RECEPT, W/ EXTRACTION & CRIMP TOOLS
$489.1240
Details

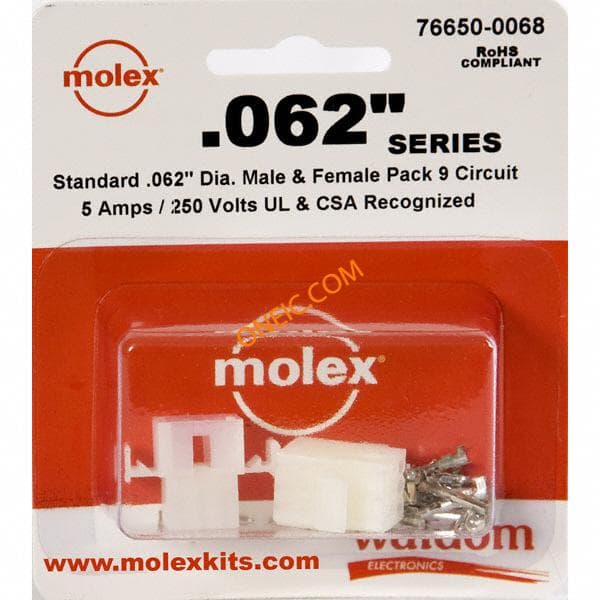

76650-0068
