03-06-1038
| Manufacturer | |
| Description | Conn Housing RCP 3 POS 3.68mm Crimp ST Bag Molex 3.68mm 3 Way 1 Row Straight Female Housing Receptacle Pin & Socket Connectors 3 PIN RECEPTACLE PLUG & SOCKET HOUSING, RECEPTACLE, NYLON TERMINAL HOUSE; MINI; RECEPT W/MNT EAR & DTENT WNDW; 3 CIRC Molex STANDARD .062" 系列 3.68mm 节距 3 路 直 母 面板安装 压接连接器外壳 |
| Category |
Business
| Tradename | Standard .062 in | Part # Aliases | 0003061038 1625-3R4 3061038 |
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 7500 | ||
Compliance
| RoHS | Compliant | Tariff No | 85366910 |
| Approval Agency Marking | CSA, UL, TUV | Material Flammability Rating | UL94V-2 |
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 5 A |
Mechanical
| Color | :Natural | Pitch | 3.68 mm |
| Height | 5.1mm | Weight | 0.00001 |
| Termination | Crimp | Body Material | :PA Polyamide (Nylon) 6/1 |
| Mounting Type | Straight | Angle of Throw | Straight |
| Mounting Style | Panel | Number of Rows | 1 |
| Housing Material | Nylon | Length - Overall | 0.78 " |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 3 | Number of Positions | :3 |
| Mounting Hole Diameter | 0.65×0.265 " | ||
Product Info
| Type | Housing | Gender | RCP |
| Series | 1625 | CAD Drawing | 3D CAD Model |
| Manufacturer | 1625 Series | Product Type | Receptacle Housings |
| For Use With/Related Products | :1560, 1561, 1786, 1854 Crimp Terminals | ||
Environmental
| Operating Temperature | -40 to +105 °C | ||
Similar Parts
76650-0012
molex
Panel Mount Plug And Receptacle kit, With Extraction And Preimum Crimp Tool KIT CONN STD .062" SERIES Pin & Socket Connectors .062 CONNECTOR KIT PREM CRIMPTOOL 288PC Kit Description:Panel Mount Plug and Receptacle, with Extraction and Preimum Crimp ToolKit Category:Wire to WireSolution:PowerPackaging:Clamshell: 12.75" by 6"Num. Pieces:288 .062IN PWR CONNECTOR KIT PANEL MNT PLUG& RECEPT, W/ EXTRACTION & CRIMP TOOLS

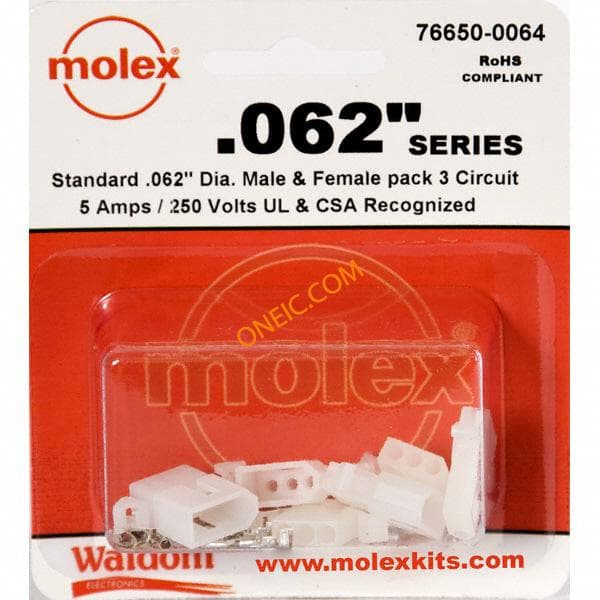

76650-0064
