0039291067
| Manufacturer | |
| Description | Conn Wire to Board HDR 6 POS 4.2mm Solder RA Thru-Hole Bag Conn Power HDR 6 POS 4.2mm Solder RA Thru-Hole 6 Terminal 1 Port Bag CONN HEADER 6POS DL R/A TIN |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 65 Days | Subcategory | Connector Power |
| Standard Package | Trays | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 10 mohm | Current Rating (Max) | 8/Contact A |
| Voltage - Input (Min) | 600VAC | Voltage - Supply (Min) | 600VAC |
Mechanical
| Color | Natural | Depth | 19.4 mm |
| Pitch | 4.2 mm | Height | 11.4 mm |
| Diameter | Not Required mm | Packaging | Bag |
| Row Spacing | 0.165" (4.20mm) | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Natural |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Tin Over Copper | Fastening Type | Locking Ramp |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Contact Material | Brass | Housing Material | Polyamide 66 |
| Length - Overall | 23.8 mm | Number of Contacts | 6 |
| Number of Positions | 6 | Contact Finish Thickness | 100µin (2.54µm) |
Product Info
| Type | Wire to Board | Gender | HDR |
| DELETED | Compliant | Number of Ports | 1 |
| Industry Aliases | 39-29-1067, 39291067 | Number of Positions Loaded | All |
| For Use With/Related Products | 0039314068 | ||
Environmental
| Operating Temperature | -40C to 105C | Operating Temperature - Junction | 105C |
Documents & Media
PDF Document
Similar Parts
0039012065
molex
Conn Housing F 6 POS 4.2mm Crimp ST Cable Mount Bag CONN RECEPT 6POS DUAL
$2.2991
Details
0039012060
molex
Conn Housing RCP 6 POS 4.2mm Crimp ST Bag CONN RECEPT 6POS DUAL
$1.3178
Details

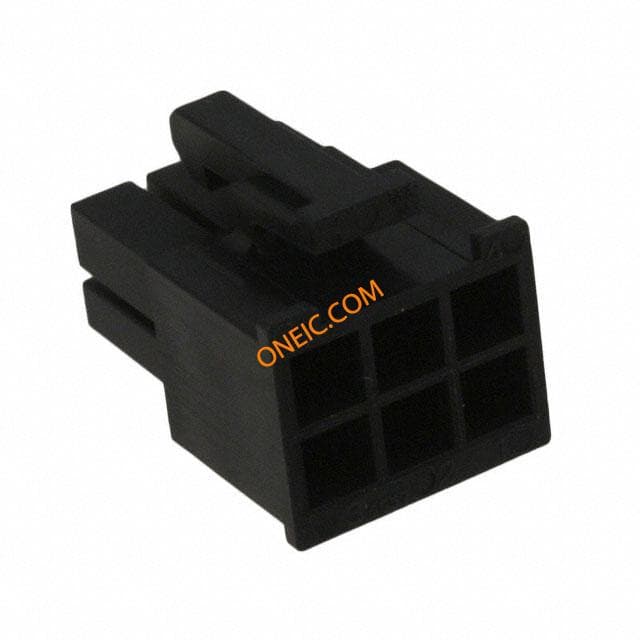

0050361672
