0039281023
| Manufacturer | |
| Description | Conn Wire to Board HDR 2 POS 4.2mm Solder ST Thru-Hole Tray Conn Wire to Board HDR 2 POS Solder ST Thru-Hole Tray CONN HEADER 2POS 4.2MM VERT TIN |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 36 Days | Subcategory | Connector Headers and PCB Receptacles |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 10 | Current Rating (Max) | 9/Contact |
| Voltage - Input (Min) | 600VDC|600VAC | ||
Mechanical
| Color | Natural | Depth | 11 |
| Pitch | 4.2 mm | Height | 12.8 |
| Packaging | Tray | Row Spacing | 0.165" (4.20mm) |
| Termination | Solder | Contact Type | Male Pin |
| Housing Color | Natural | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Bright Tin Over Copper |
| Fastening Type | Locking Ramp | Number of Rows | 2 |
| Contact Material | Brass | Housing Material | Nylon 66 |
| Length - Overall | 6.2 | Number of Contacts | 2 |
| Number of Positions | 2 | Contact Finish Thickness | 35µin (0.90µm) |
Product Info
| Type | Wire to Board | Gender | HDR |
| Industry Aliases | 39-28-1023, 39281023 | Number of Positions Loaded | All |
Environmental
| Ingress Protection | - | Operating Temperature | - |
Documents & Media
Online Document
PDF Document
Online Document
PDF Document
Online Document
PDF Document
PDF Document
Online Document
Similar Parts
0039012020
molex
Conn Housing RCP 2 POS Crimp ST Bag CONN RECEPT 2POS DUAL
$0.7140
Details
0039013022
molex
Conn Housing RCP 2 POS Crimp ST Cable Mount Bag CONN RECEPT 2POS VERT DUAL
$1.0261
Details
0039012025
Molex
Conn Housing F 2 POS Crimp ST Cable Mount Bag CONN RECEPT 2POS DUAL
$1.5028
Details

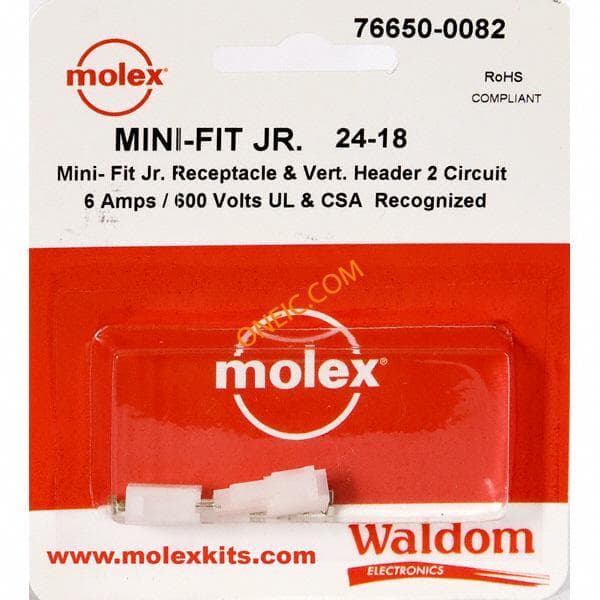

76650-0082
