0039012021
| Manufacturer | |
| Description | Conn Housing PL 2 POS 4.2mm Crimp ST Bag CONN PLUG 2POS PANEL MOUNT Conn Housing M 2 POS Crimp ST Panel Mount Bag |
| Category |
Business
| Lead Time | 43 Days | Subcategory | Connector Discrete Wire Housing |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Current Rating (Max) | 13/Contact A | Voltage - Supply (Min) | 600VDC/600VAC |
| Connector - Voltage Input | Crimp | ||
Mechanical
| Color | Natural | Depth | 23.9 mm |
| Pitch | 4.2 mm | Height | 11.6 mm |
| Packaging | Bag | Row Spacing | 0.165" (4.20mm) |
| Contact Form | Male Pin | Contact Type | Male Pin |
| Lead Spacing | 0.165" (4.20mm) | Housing Color | Natural |
| Mounting Type | Straight | Connector Type | Plug |
| Fastening Type | Locking Ramp | Number of Rows | 2 |
| Housing Material | Nylon 66 | Length - Overall | 10.8 mm |
| Number of Contacts | 2 | Contact Termination | Crimp |
| Number of Positions | 2 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | Mini-Fit® Jr™ 5559 |
| Industry Aliases | 39-01-2021, 39012021 | Output Configuration | Panel Mount, Snap-In |
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts
0039012020
molex
Conn Housing RCP 2 POS Crimp ST Bag CONN RECEPT 2POS DUAL

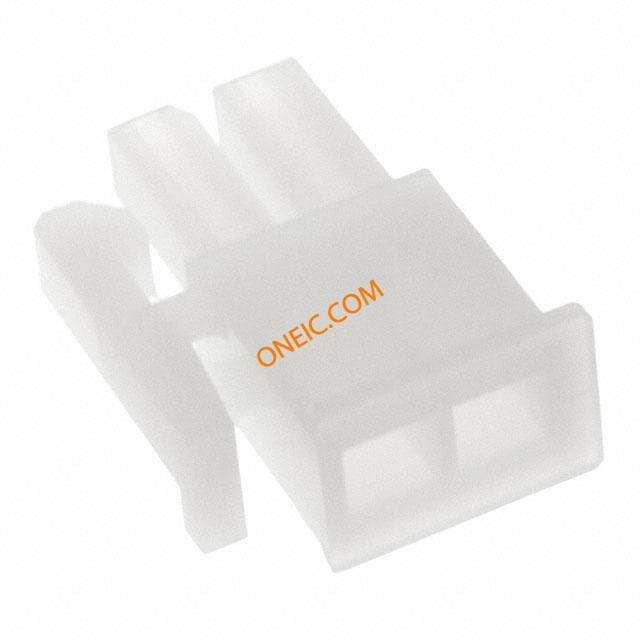

0039013022
