0038001340

Manufacturer	Molex, LLC
Description	Conn Socket Strip RCP 10 POS 2.54mm Solder RA Thru-Hole Tray RCPT .100 RT ANG 10CKT TIN
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

Standard Package

1,944

Compliance

RoHS

Lead free / RoHS Compliant

EU RoHS

Compliant

Electrical

Contact Resistance	20 mohm	Current Rating (Max)	2.5/Contact A
Voltage - Input (Min)	250V	Voltage - Supply (Min)	250V

Mechanical

Color	White	Depth	7.87 mm
Pitch	0.100" (2.54mm)	Height	4.7 mm
Packaging	Tray	Termination	Solder
Contact Type	Female Socket	Housing Color	White
Mounting Type	Through Hole	Connector Type	Receptacle
Contact Finish	Tin	Mounting Style	Through Hole
Number of Rows	1	Contact Material	Phosphor Bronze
Housing Material	Nylon	Length - Overall	25.3 mm
Number of Contacts	10	Number of Positions	10
Contact Finish Thickness	100µin (2.54µm)

Product Info

Type	Socket Strip	Gender	RCP
Number of Positions Loaded	All

Environmental

Operating Temperature

0C to 75C

Documents & Media

PDF Document

Similar Parts

0022288101

molex

Conn Unshrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 10POS .100 R/A TIN

$2.4133

Details

0022052101

molex

Conn Unshrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Bulk Conn Unshrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 10POS .100 R/A TIN

$3.8767

Details

0022284103

molex

Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 10POS .100 VERT GOLD

$3.0559

Details

22-28-8105

molex

Conn Unshrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 10POS .100 R/A GOLD Headers & Wire Housings KK 100 Hdr Assy RA B Bkwy 10 Ckt 30 SGold

$2.1787

Details

22-28-4106

molex

Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 10POS .100 VERT GOLD Headers & Wire Housings 2.54MM HDR VT 10P 240/125 30AU

$2.4610

Details

22-28-4102

molex

Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 10POS .100 VERT TIN Headers & Wire Housings 2.54MM HDR VT 10P 295/120 SN

$1.2648

Details

22-28-4105

molex

Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 10POS .100 VERT GOLD Headers & Wire Housings HDR VT 1X10P .1 295/120 15AU

$4.0936

Details

0022288103

Molex

Conn Unshrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 10POS .100 R/A GOLD

$62.7210

Details

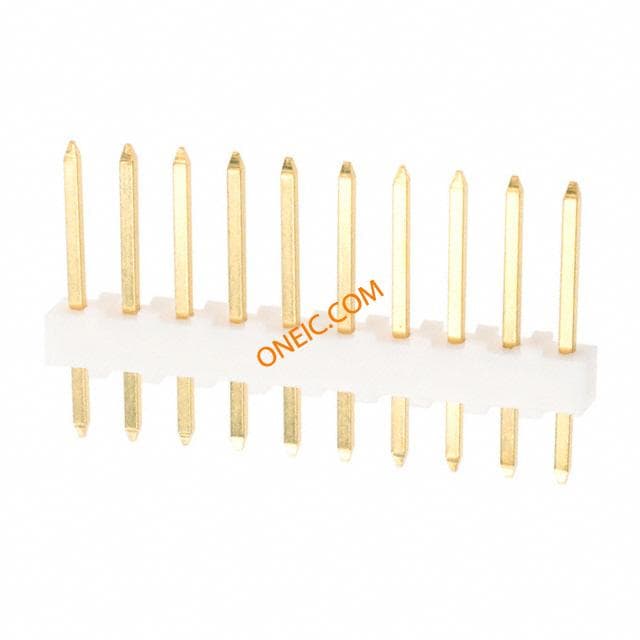

0022102101
