点击放大查看
0026604100
| Manufacturer | |
| Description | Conn Wire to Board HDR 10 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 10POS .156 VERT TIN |
| Category |
Business
| Lead Time | 29 Days | Subcategory | Connector Headers and PCB Receptacles |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 6 mohm | Current Rating (Max) | 7/Contact A |
| Voltage - Input (Min) | 250V | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | Natural | Depth | 10.01 mm |
| Pitch | 3.96 mm | Height | 14.73 mm |
| Packaging | Bag | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Natural |
| Mounting Type | Through Hole | Connector Type | Header, Unshrouded |
| Contact Finish | Tin Over Copper | Fastening Type | Friction Lock |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | Brass | Housing Material | Polyester |
| Length - Overall | 39.47 mm | Number of Contacts | 10 |
| Number of Positions | 10 | Contact Length - Mating | 0.450" (11.43mm) |
| Contact Finish Thickness | 60µin (1.52µm) | ||
Product Info
| Type | Wire to Board | Gender | HDR |
| Industry Aliases | 26-60-4100, 26604100 | Number of Positions Loaded | All |
Environmental
| Operating Temperature | 0C to 75C | ||
Documents & Media
Similar Parts
0009503101
molex
Conn Housing RCP 10 POS 3.96mm Crimp ST Cable Mount Bag CONN HOUSING 10POS .156 W/RAMP
0009521100
molex
Conn Socket Strip RCP 10 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 10POS TIN PCB
0009521101
molex
Conn Socket Strip RCP 10 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 10POS TIN PCB
0009482109
molex
Conn Socket Strip RCP 10 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT BOTTOM 10POS TIN PCB
0009482105
Molex, LLC
. 0009482105 - 10 Position Receptacle Connector 0.156" (3.96mm) Through Hole Tin from Molex. from now!
0009482107
molex
Conn Socket Strip RCP 10 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 10POS TIN PCB

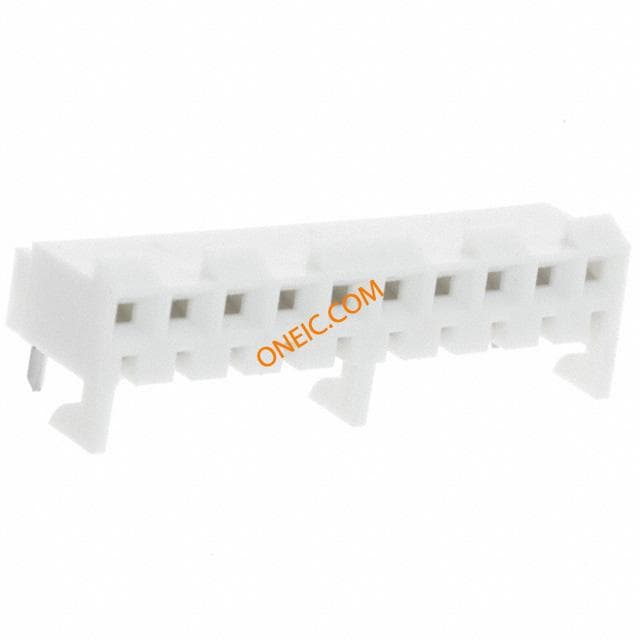

0009483105
molex
Conn Socket Strip RCP 10 POS 3.96mm Solder RA Thru-Hole Tray CONN RECEPT 10POS .156 R/A PCB
0009482108
Molex
Conn Socket Strip RCP 10 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 10POS TIN PCB
0009521103
Molex, LLC
. 0009521103 - 10 Position Receptacle Connector 0.156" (3.96mm) Through Hole Tin from Molex. from now!

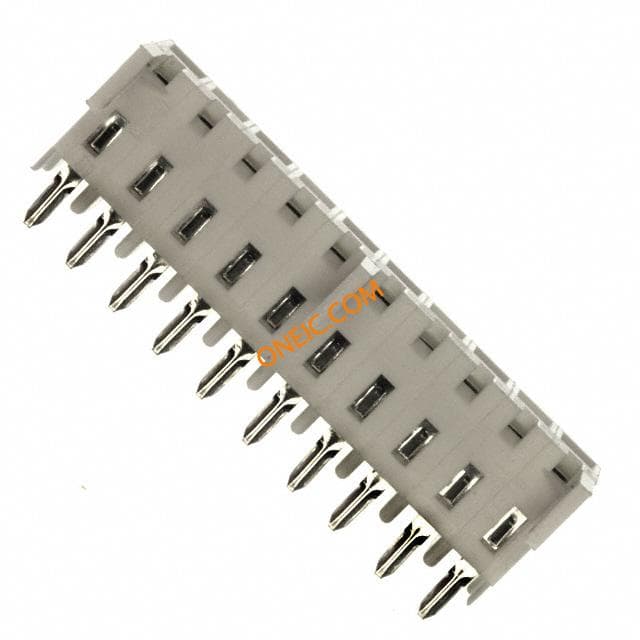

0009484108
Molex
Conn Socket Strip RCP 10 POS 3.96mm Solder ST Thru-Hole Tray CONN RECEPT 10POS .156 VERT PCB
0009482102
Molex
Conn Socket Strip RCP 10 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT BOTTOM 10POS TIN PCB
0009523105
Molex
Conn Socket Strip RCP 10 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 10POS TIN PCB
09-62-3103
molex
KK 156 PCB ASSY TOP 10 CKT CONN RECEPT 10POS .156 VERT PCB Headers & Wire Housings 3.96MM PCB CONN Top Entry 10 CKT Conn Socket Strip SKT 10 POS 3.96mm Solder ST Thru-Hole Tray
0009521106
Molex
Conn Socket Strip RCP 10 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 10POS TIN PCB

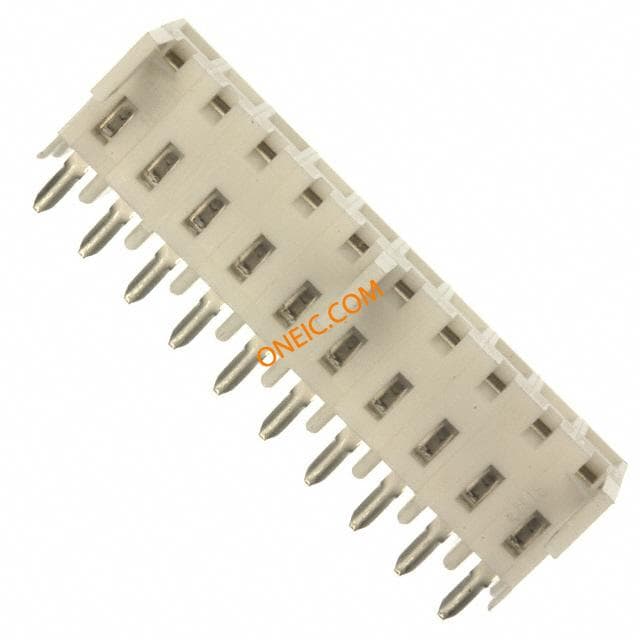

0009483106
