0026604030
| Manufacturer | |
| Description | Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 3POS .156 VERT TIN |
| Category |
Business
| Lead Time | 20 Days | Subcategory | Connector Headers and PCB Receptacles |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 6 mohm | Current Rating (Max) | 7/Contact A |
| Voltage - Input (Min) | 250VAC | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | Natural | Depth | 10.01 mm |
| Pitch | 3.96 mm | Height | 14.73 mm |
| Packaging | Bag | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Natural |
| Mounting Type | Through Hole | Connector Type | Header, Unshrouded |
| Contact Finish | Tin Over Copper | Fastening Type | Friction Lock |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | Brass | Housing Material | Polyester |
| Length - Overall | 11.73 mm | Number of Contacts | 3 |
| Number of Positions | 3 | Contact Length - Mating | 0.450" (11.43mm) |
| Contact Finish Thickness | 60µin (1.52µm) | ||
Product Info
| Type | Wire to Board | Gender | HDR |
| Industry Aliases | 26-60-4030, 26604030 | Number of Positions Loaded | All |
Environmental
| Operating Temperature | 0C to 75C | ||
Documents & Media
Similar Parts
0009503031
molex
Conn Housing RCP 3 POS 3.96mm Crimp ST Cable Mount Bag Conn Housing F 3 POS 3.96mm Crimp ST Cable Mount Bag CONN HOUSING 3POS .156 W/RAMP
0009523038
molex
Conn Socket Strip RCP 3 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 3POS TIN PCB
0009482031
Molex
Conn Socket Strip RCP 3 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 3POS TIN PCB
0009624037
molex
Conn Socket Strip RCP 3 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 3POS GOLD
0009521033
Molex, LLC
. 0009521033 - 3 Position Receptacle Connector 0.156" (3.96mm) Through Hole Tin from Molex. from now!
0009482030
molex
Conn Socket Strip RCP 3 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 3POS TIN PCB
0009485035
Molex, LLC
. 0009485035 - 3 Position Receptacle Connector 0.156" (3.96mm) Through Hole Gold from Molex. from now!
09-52-3033
molex
Conn Socket Strip RCP 3 POS 3.96mm Solder ST Thru-Hole Tray CONN RECEPT 3POS .156 VERT PCB Headers & Wire Housings PCB RECPT 3P TOP ENTRY
0009482033
Molex
Conn Socket Strip RCP 3 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 3POS TIN PCB

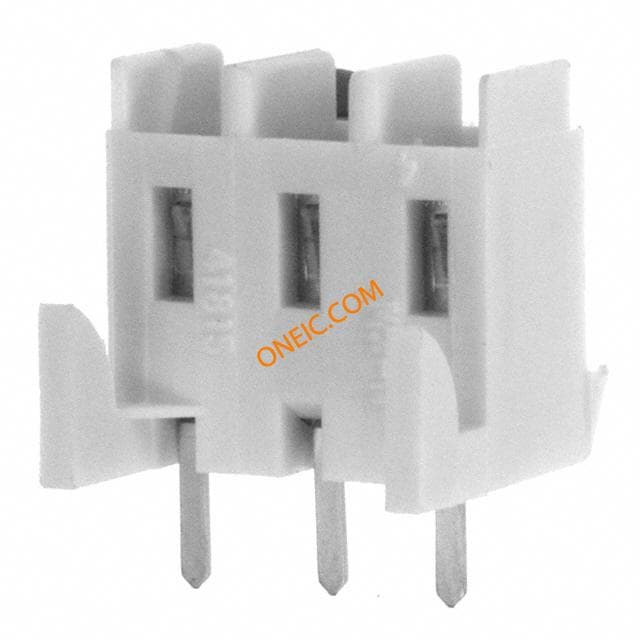

0009483034
