0026604020
| Manufacturer | |
| Description | Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 2POS .156 VERT TIN |
| Category |
Business
| Lead Time | 36 Days | Subcategory | Connector Headers and PCB Receptacles |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 6 mohm | Current Rating (Max) | 7/Contact A |
| Voltage - Input (Min) | 250V | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | Natural | Depth | 10.01 mm |
| Pitch | 3.96 mm | Height | 14.73 mm |
| Packaging | Bag | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Natural |
| Mounting Type | Through Hole | Connector Type | Header, Unshrouded |
| Contact Finish | Tin Over Copper | Fastening Type | Friction Lock |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | Brass | Housing Material | Polyester |
| Length - Overall | 7.77 mm | Number of Contacts | 2 |
| Number of Positions | 2 | Contact Length - Mating | 0.450" (11.43mm) |
| Contact Finish Thickness | 60µin (1.52µm) | ||
Product Info
| Type | Wire to Board | Gender | HDR |
| Industry Aliases | 26-60-4020, 26604020 | Number of Positions Loaded | All |
Environmental
| Operating Temperature | 0C to 75C | ||
Documents & Media
Similar Parts
0009503021
molex
Conn Housing RCP 2 POS 3.96mm Crimp ST Cable Mount Bag Conn Housing F 2 POS 3.96mm Crimp ST Cable Mount Bag CONN HOUSING 2POS .156 W/RAMP
0009482028
Molex
Conn Socket Strip RCP 2 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 2POS TIN PCB
0009508021
Molex, LLC
. 0009508021 - 2 Position Rectangular Housing Connector Receptacle Natural 0.156" (3.96mm) from Molex. from now!
0009485026
molex
Conn Socket Strip RCP 2 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT BOTTOM 2POS GOLD PCB
0009624027
molex
Conn Socket Strip RCP 2 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 2POS GOLD
0009485025
molex
Conn Socket Strip RCP 2 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 2POS GOLD PCB
0009482020
molex
Conn Socket Strip RCP 2 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 2POS TIN PCB
0009521026
molex
Conn Socket Strip RCP 2 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 2POS TIN PCB
0009508023
Molex
Conn Housing RCP 2 POS 3.96mm Crimp ST Cable Mount Bag CONN HOUSING 2POS .156 W/POLAR
0009930200
Molex
Conn Housing F 2 POS 3.96mm Crimp ST Cable Mount Bag CONN FEMALE HSNG .156 2POS
0009483024
Molex
Conn Socket Strip RCP 2 POS 3.96mm Solder ST Thru-Hole Tray CONN RECEPT 2POS .156 VERT PCB
0009485024
Molex
Conn Socket Strip RCP 2 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 2POS GOLD PCB
0009482021
Molex
Conn Socket Strip RCP 2 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 2POS TIN PCB
0009482029
Molex
Conn Socket Strip RCP 2 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT BOTTOM 2POS TIN PCB

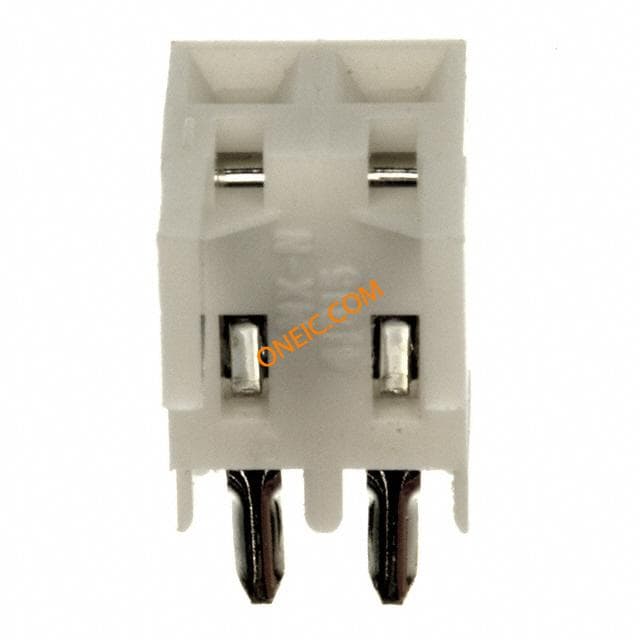

09-48-4028
Molex Connector Corporation
CONN RECEPT 2POS .156 VERT PCB Headers & Wire Housings .156 KK PCB CONNECTO
09-48-3025
Molex Connector Corporation
CONN RECEPT 2POS .156 R/A PCB Headers & Wire Housings 2 POS RECEPT .156 R/A PCB GOLD Conn Socket Strip RCP 2 POS 3.96mm Solder RA Thru-Hole Tray
09-48-1024
Molex Connector Corporation
CONN RECEPT 2POS .156 R/A PCB Headers & Wire Housings RA PCB CONN 2P Conn Socket Strip RCP 2 POS 3.96mm Solder RA Thru-Hole Tray
09-52-3021
Molex Connector Corporation
2POS CONN RECEPT .156 R/A PCB Conn Socket Strip RCP 2 POS 3.96mm Solder RA Thru-Hole Tray

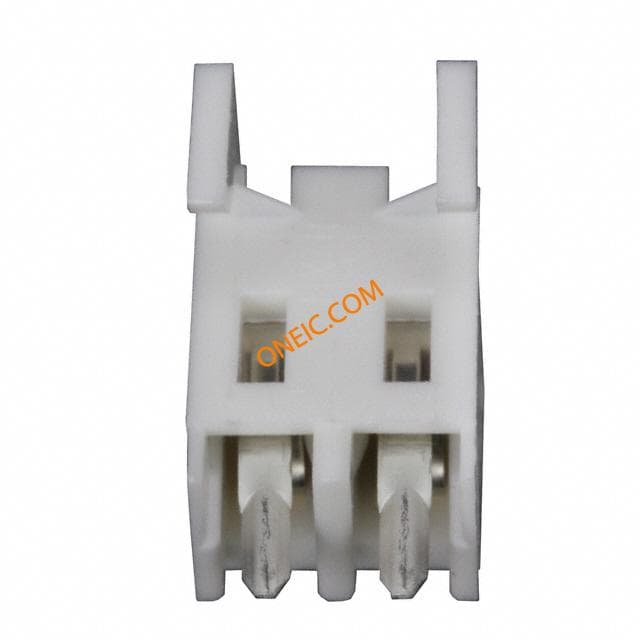

09-48-3026
