0026481125
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 12 POS 3.96mm Solder ST Thru-Hole Bulk Conn Unshrouded Header HDR 12 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 12POS .156 VERT TIN |
| Category |
Business
| Lead Time | 36 Days | Subcategory | Connector Headers and PCB Receptacles |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 10 mohm | Current Rating (Max) | 7/Contact A |
| Voltage - Input (Min) | 250V | Voltage - Supply (Min) | 250V |
Mechanical
| Color | Black | Depth | 9.02 mm |
| Pitch | 3.96 mm | Height | 14.68 mm |
| Packaging | Bag | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Header, Unshrouded, Breakaway |
| Contact Finish | Tin Over Copper | Fastening Type | Friction Lock |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | Brass | Housing Material | Polyester |
| Length - Overall | 47.5 mm | Number of Contacts | 12 |
| Number of Positions | 12 | Contact Length - Mating | 0.450" (11.43mm) |
| Contact Finish Thickness | 200µin (5.08µm) | ||
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Industry Aliases | 26-48-1125, 26481125 | Number of Positions Loaded | All |
Environmental
| Operating Temperature | 0C to 75C | ||
Documents & Media
Similar Parts
0009482123
molex
Conn Socket Strip RCP 12 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 12POS TIN PCB
0009485124
molex
Conn Socket Strip RCP 12 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 12POS GOLD PCB
0009485125
molex
Conn Socket Strip RCP 12 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 12POS GOLD PCB
0009521123
molex
Conn Socket Strip RCP 12 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 12POS TIN PCB
0009523128
molex
Conn Socket Strip RCP 12 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 12POS TIN PCB
0009484121
Molex, LLC
. 0009484121 - 12 Position Receptacle, Bottom Entry Connector 0.156" (3.96mm) Through Hole Tin from Molex. from now!
0009482129
molex
Conn Socket Strip RCP 12 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT BOTTOM 12POS TIN PCB
0009521120
Molex
Conn Socket Strip RCP 12 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 12POS TIN PCB

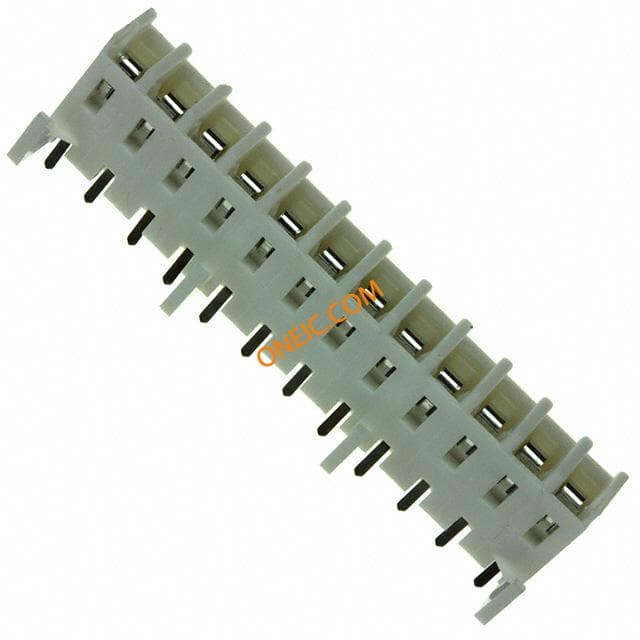

0009484129
Molex
Conn Socket Strip RCP 12 POS 3.96mm Solder ST Thru-Hole Tray CONN RECEPT 12POS .156 VERT PCB

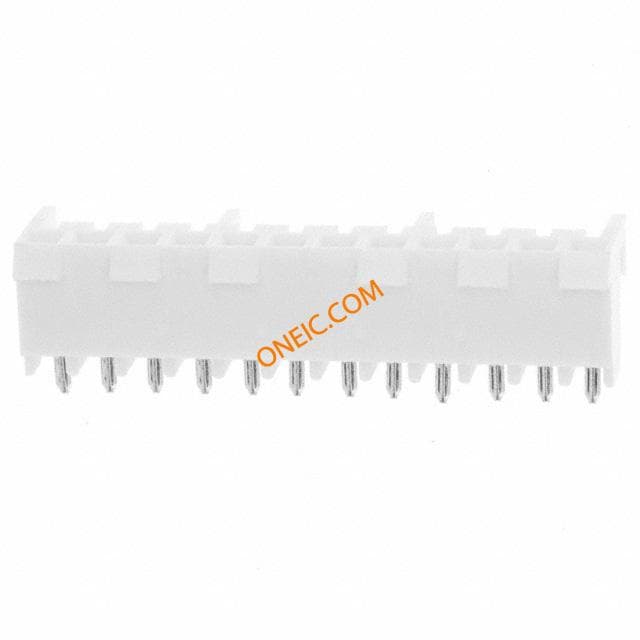

0009484128
Molex
Conn Socket Strip RCP 12 POS 3.96mm Solder ST Thru-Hole Tray CONN RECEPT 12POS .156 VERT PCB
0009482121
Molex
Conn Socket Strip RCP 12 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 12POS TIN PCB
0009931200
Molex
Conn Housing F 12 POS 3.96mm Crimp ST Cable Mount Bag CONN FEMALE HSNG .156 12POS
0009521126
Molex
Conn Socket Strip RCP 12 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 12POS TIN PCB
0009624127
Molex
Conn Socket Strip RCP 12 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 12POS GOLD
09-52-3121
Molex Connector Corporation
CONN RECEPT 12POS .156 R/A PCB Headers & Wire Housings PCB RECPT 12P SIDE ENTRY Conn Socket Strip RCP 12 POS 3.96mm Solder RA Thru-Hole Tray

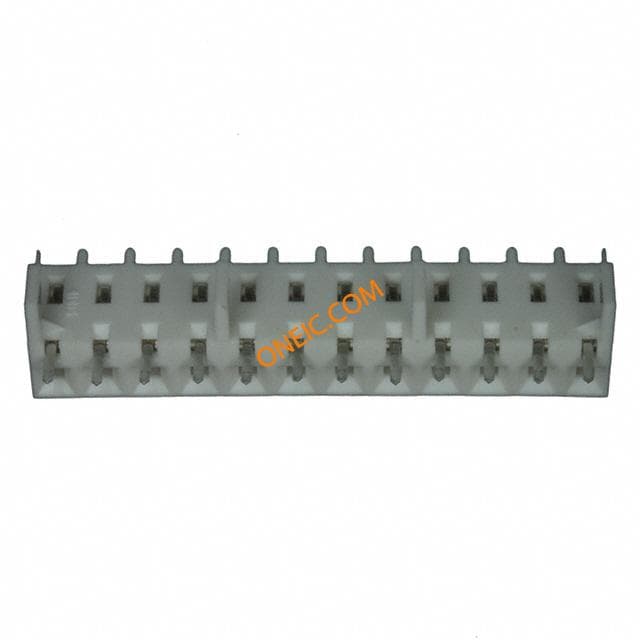

09-48-3124
Molex Connector Corporation
CONN RECEPT 12POS .156 VERT PCB Headers & Wire Housings 12 POS RECEPT .156 BOTTOM PCB GOLD 3.96mm Pitch KK® PC Board Connector, Bottom Entry, Polyester Connector, Gold (Au) Selective, 12 Circuits
09-62-3122
Molex Connector Corporation
CONN RECEPT 12POS .156 VERT PCB Headers & Wire Housings 3.96MM BOARD CONN BTM ENTRY 12P GOLD Conn Socket Strip RCP 12 POS 3.96mm Solder ST Thru-Hole Tray
09-52-3122
Molex Connector Corporation
CONN RECEPT 12POS .156 VERT PCB Headers & Wire Housings PCB RECPT 12P BOTTOM ENTRY Conn Socket Strip RCP 12 POS 3.96mm Solder ST Thru-Hole Tray
09-50-8121
Molex Connector Corporation
CONN HOUSING 12POS .156 W/RAMP Housing 3.96mm KK, friction ramp, 12way Headers & Wire Housings HSG 12P W/LKG RAMP UL94V-0 Conn Housing F 12 POS 3.96mm Crimp ST Cable Mount Bag KK156CRIMPHOUSINGRAMP12CKT Molex KK 396 系列 1 行 3.96mm 节距 12 路 直 母 电缆安装 压接连接器外壳

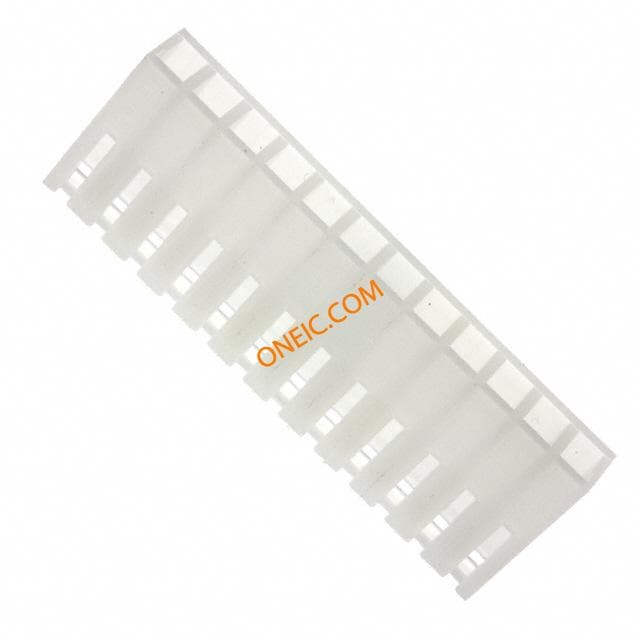

09-50-7121
