0026481065
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 6 POS 3.96mm Solder ST Thru-Hole Bulk Conn Unshrouded Header HDR 6 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 6POS .156 VERT TIN |
| Category |
Business
| Lead Time | 20 Days | Subcategory | Connector Headers and PCB Receptacles |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 10 mohm | Current Rating (Max) | 7/Contact A |
| Voltage - Input (Min) | 250V | Voltage - Supply (Min) | 250V |
Mechanical
| Color | Black | Depth | 9.02 mm |
| Pitch | 3.96 mm | Height | 14.68 mm |
| Packaging | Bag | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Header, Unshrouded, Breakaway |
| Contact Finish | Tin Over Copper | Fastening Type | Friction Lock |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | Brass | Housing Material | Polyester |
| Length - Overall | 23.72 mm | Number of Contacts | 6 |
| Number of Positions | 6 | Contact Length - Mating | 0.450" (11.43mm) |
| Contact Finish Thickness | 200µin (5.08µm) | ||
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Industry Aliases | 26-48-1065, 26481065 | Number of Positions Loaded | All |
Environmental
| Operating Temperature | 0C to 75C | ||
Documents & Media
Similar Parts
0009503061
Molex
Conn Housing RCP 6 POS 3.96mm Crimp ST Cable Mount Bag CONN HOUSING 6POS .156 W/RAMP
0009533061
molex
Conn Socket Strip RCP 6 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT HOUSING R/A 6POS TIN
0009481065
molex
Conn Socket Strip RCP 6 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 6POS GOLD PCB
0009482068
molex
Conn Socket Strip RCP 6 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 6POS TIN PCB
0009482063
molex
Conn Socket Strip RCP 6 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 6POS TIN PCB
0009508063
molex
Conn Housing RCP 6 POS 3.96mm Crimp ST Cable Mount Bag CONN HOUSING 6POS .156 W/POLAR

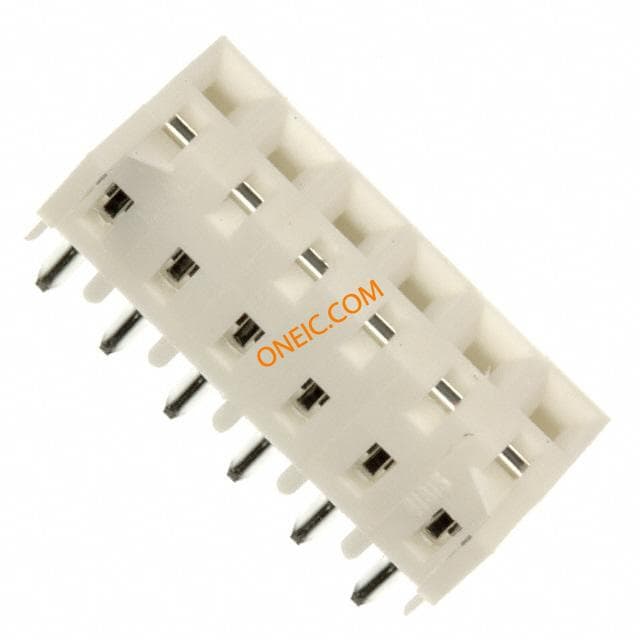

0009484068
Molex
Conn Socket Strip RCP 6 POS 3.96mm Solder ST Thru-Hole Tray CONN RECEPT 6POS .156 VERT PCB
0009930600
Molex
Conn Housing F 6 POS 3.96mm Crimp ST Cable Mount Bag CONN FEMALE HSNG .156 6POS
0009521066
Molex, LLC
. 0009521066 - 6 Position Receptacle Connector 0.156" (3.96mm) Board Edge, Through Hole, Right Angle Tin from Molex. from now!
0009481064
Molex
Conn Socket Strip RCP 6 POS 3.96mm Solder RA Thru-Hole Tray CONN RECEPT 6POS .156 R/A PCB

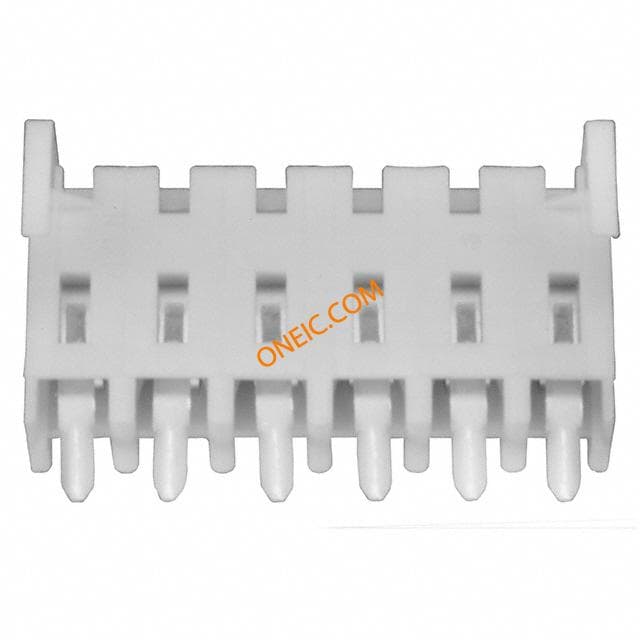

0009483066
Molex
Conn Socket Strip RCP 6 POS 3.96mm Solder ST Thru-Hole Tray CONN RECEPT 6POS .156 VERT PCB
0009485064
Molex
Conn Socket Strip RCP 6 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 6POS GOLD PCB
0009482060
Molex
Conn Socket Strip RCP 6 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 6POS TIN PCB
0009521060
Molex
Conn Socket Strip RCP 6 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 6POS TIN PCB
0009485066
Molex
Conn Socket Strip RCP 6 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT BOTTOM 6POS GOLD PCB
09-52-3062
Molex Connector Corporation
CONN RECEPT 6POS .156 VERT PCB Headers & Wire Housings PCB RECPT 6P BOTTOM ENTRY Conn Socket Strip RCP 6 POS 3.96mm Solder ST Thru-Hole Tray

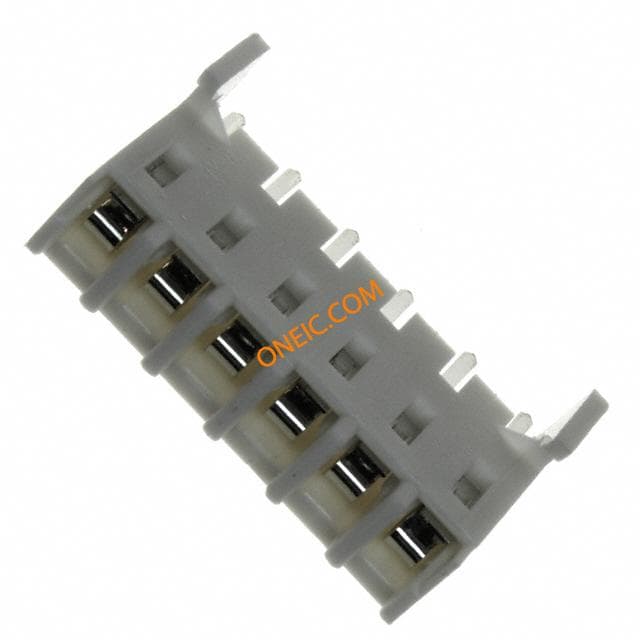

09-48-4069
Molex Connector Corporation
CONN RECEPT 6POS .156 VERT PCB Conn Socket Strip RCP 6 POS 3.96mm Solder ST Thru-Hole Tray

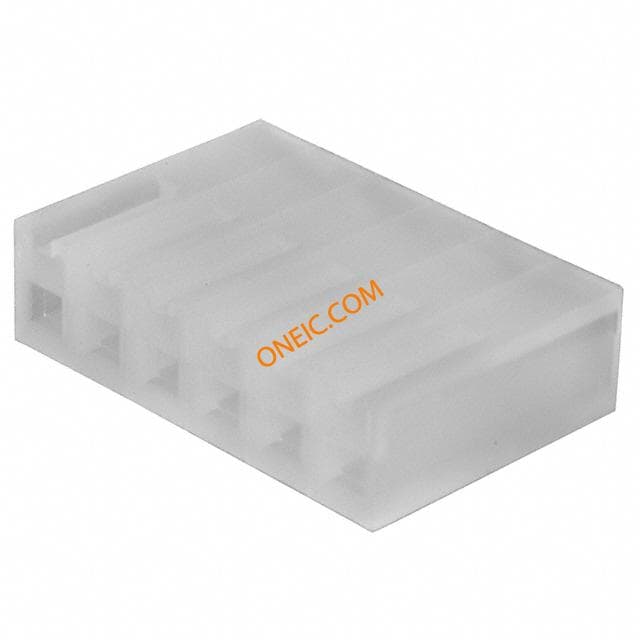

09-50-7061
