0022284021
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 20 | Current Rating (Max) | 4/Contact |
| Voltage - Input (Min) | 250V | ||
Mechanical
| Color | Black | Depth | 2.49 |
| Pitch | 2.54 mm | Height | 10.42 |
| Packaging | Bag | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Header, Unshrouded, Breakaway |
| Contact Finish | Tin Over Nickel | Number of Rows | 1 |
| Contact Material | Phosphor Bronze | Housing Material | Nylon |
| Length - Overall | 5.08 | Number of Contacts | 2 |
| Number of Positions | 2 | Contact Length - Mating | 0.320" (8.13mm) |
| Contact Finish Thickness | 100µin (2.54µm) | ||
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Number of Positions Loaded | All | ||
Documents & Media
PDF Document
Similar Parts
0022012027
molex
$0.1632
Details
0022013027
molex
$0.2924
Details
0010112023
molex
$0.4638
Details
0022012021
molex
$0.3488
Details

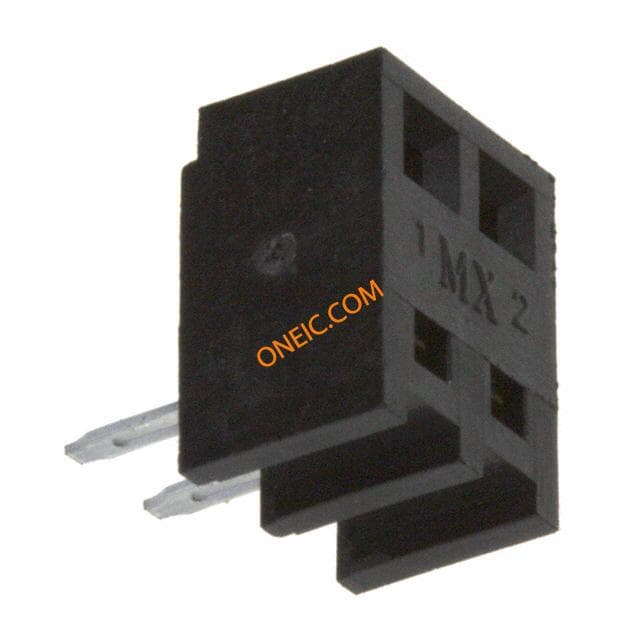

44812-0020
molex
$17.1460
Details
0022012025
Molex
$1.3056
Details
0022152026
Molex
$0.9020
Details
0022022025
Molex
$0.8780
Details

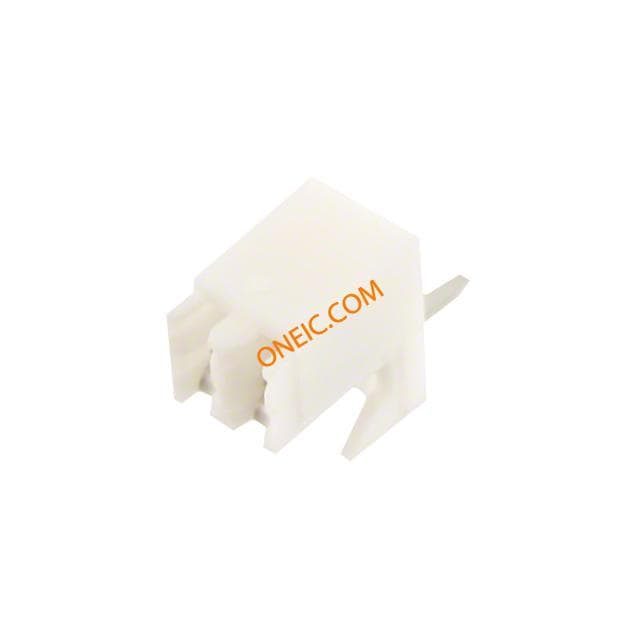

22-17-3022
Molex Connector Corporation
$0.7888
Details

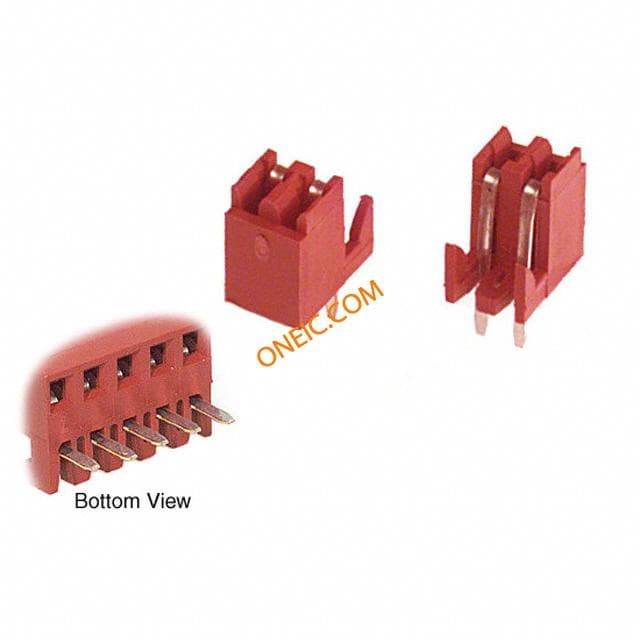

22-14-2024
