0022232141
| Manufacturer | |
| Description | Conn Wire to Board HDR 14 POS 2.54mm Solder ST Thru-Hole Tube Conn Wire to Board HDR 14 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER VERT 14POS TIN |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 51 Days | Subcategory | Connector Headers and PCB Receptacles |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 10 | Current Rating (Max) | 4/Contact |
| Voltage - Input (Min) | 250V | ||
Mechanical
| Color | White | Depth | 6.35 |
| Pitch | 2.54 mm | Height | 10.67 |
| Packaging | Bag | Termination | Solder |
| Contact Type | Male Pin | Housing Color | White |
| Mounting Type | Through Hole | Connector Type | Header, Unshrouded |
| Contact Finish | Tin Over Copper | Fastening Type | Friction Lock |
| Number of Rows | 1 | Contact Material | Brass |
| Housing Material | Nylon | Length - Overall | 35.56 |
| Number of Contacts | 14 | Number of Positions | 14 |
| Contact Length - Mating | 0.295" (7.49mm) | Contact Finish Thickness | 100µin (2.54µm) |
Product Info
| Type | Wire to Board | Gender | HDR |
| Industry Aliases | 22-23-2141, 22232141 | Number of Positions Loaded | All |
Environmental
| Ingress Protection | - | Operating Temperature | - |
Documents & Media
Online Document
PDF Document
Online Document
PDF Document
Online Document
PDF Document
Online Document
PDF Document
PDF Document
Online Document
Similar Parts
0791077206
molex
Conn Socket Strip RCP 14 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL 14CKT
$0.6991
Details
10-11-2143
Molex Connector Corporation
CONN HOUSING 14POS .100 HI PRESS Headers & Wire Housings 2.54MM CRIMP HOUSNG 14P HIGH PRESS WH 2.54mm Pitch KK® Crimp Terminal Housing, High Pressure, 14 Circuits
$0.2580
Details

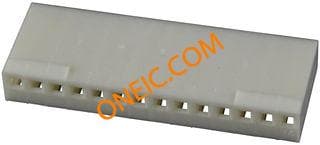

22-01-2147
