点击放大查看
0022232061
| Manufacturer | |
| Description | Conn Wire to Board HDR 6 POS 2.54mm Solder ST Thru-Hole Tube Conn Wire to Board HDR 6 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 6POS .100 VERT TIN |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 10 mohm | Current Rating (Max) | 4/Contact A |
| Voltage - Input (Min) | 250V | Voltage - Supply (Min) | 250V |
Mechanical
| Color | White | Depth | 6.35 mm |
| Pitch | 2.54 mm | Height | 10.67 mm |
| Packaging | Bag | Termination | Solder |
| Contact Type | Male Pin | Housing Color | White |
| Mounting Type | Through Hole | Connector Type | Header, Unshrouded |
| Contact Finish | Tin Over Copper | Fastening Type | Friction Lock |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | Brass | Housing Material | Nylon |
| Length - Overall | 15.24 mm | Number of Contacts | 6 |
| Number of Positions | 6 | Contact Length - Mating | 0.295" (7.49mm) |
| Contact Finish Thickness | 100µin (2.54µm) | ||
Product Info
| Type | Wire to Board | Gender | HDR |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | 0C to 75C | ||
Documents & Media
Similar Parts
0022013067
molex
Conn Housing F 6 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUS 6POS .100 W/RAMP/RIB Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Bag
0022022065
molex
Conn Socket Strip RCP 6 POS 2.54mm Solder ST Thru-Hole Tray CONN RECEPT 6POS .100 VERT PCB
0022012067
molex
Conn Housing F 6 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 6POS .100 W/RAMP Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Bag
0022152066
Molex
Conn Socket Strip RCP 6 POS 2.54mm Solder RA Thru-Hole Tray CONN RECEPT 6POS .100 R/A PCB
0022162060
Molex
Conn Socket Strip RCP 6 POS 2.54mm Solder RA Thru-Hole Tray CONN RECEPT 6POS .100 R/A PCB
0022012065
Molex
Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Bag CONN HSNG 6POS .100 W/RAMP/RIB

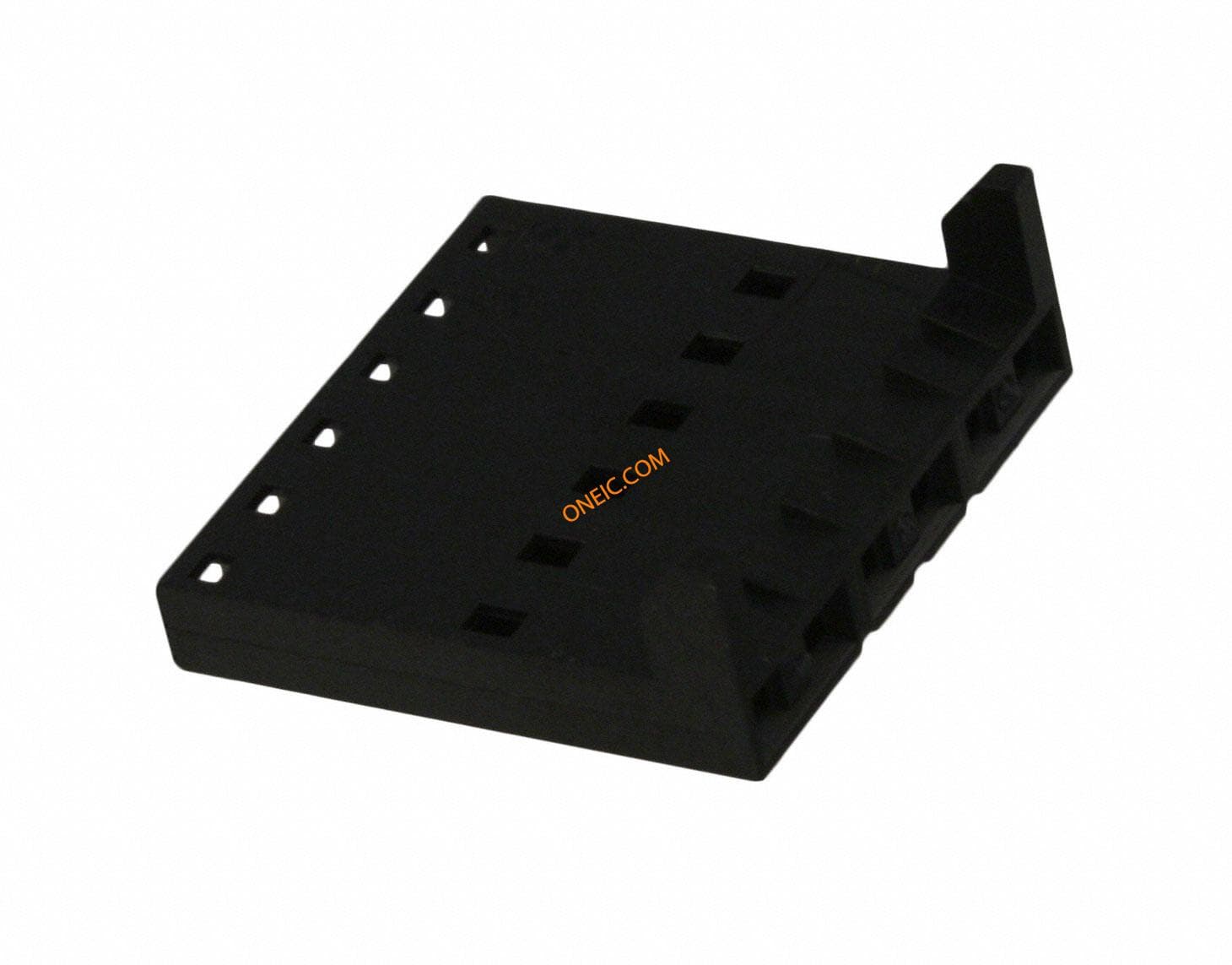

0050579506
