0022232021
| Manufacturer | |
| Description | Conn Wire to Board HDR 2 POS 2.54mm Solder ST Thru-Hole Bulk Conn Wire to Board HDR 2 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 2POS .100 VERT TIN |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 10 mohm | Current Rating (Max) | 4/Contact A |
| Voltage - Input (Min) | 250V | Voltage - Supply (Min) | 250V |
Mechanical
| Color | White | Depth | 6.35 mm |
| Pitch | 2.54 mm | Height | 10.67 mm |
| Packaging | Bag | Termination | Solder |
| Contact Form | Male Pin | Contact Type | Male Pin |
| Housing Color | White | Mounting Type | Through Hole |
| Connector Type | Header, Unshrouded | Contact Finish | Tin Over Copper |
| Fastening Type | Friction Lock | Mounting Style | Through Hole |
| Number of Rows | 1 | Contact Material | Brass |
| Housing Material | Nylon | Length - Overall | 5.08 mm |
| Height Above Board | 0.295" (7.49mm) | Number of Contacts | 2 |
| Number of Positions | 2 | Contact Length - Mating | 0.295" (7.49mm) |
| Contact Finish Thickness | 100µin (2.54µm) | Number of Positions/Bay/Row | All |
Product Info
| Type | Wire to Board | Gender | HDR |
| Series | KK® 6373 | Output Configuration | Through Hole |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | 0C to 75C | ||
Documents & Media
Similar Parts
0022012027
molex
Conn Housing RCP 2 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 2POS .100 W/RAMP Conn Housing F 2 POS 2.54mm Crimp ST Cable Mount Bag
0022013027
molex
Conn Housing RCP 2 POS 2.54mm Crimp ST Cable Mount Bag Conn Housing F 2 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUS 2POS .100 W/RAMP/RIB

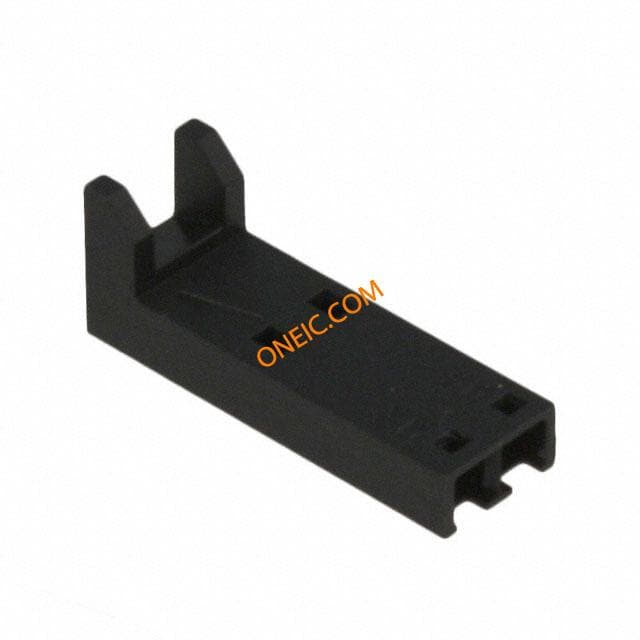

0050579502
